| Specification | Details |
|---|---|
| Model | 20-Layer 20-Tray Universal Steam Oven AWE-201DX-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Editor | 9 three-stage programmable menus |
| Cleaning Methods | 3 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Frequency Conversion Variable Speed Fan with 3 adjustable speeds |
| Capacity | 20 x 1/1 GN |
| Daily Meal Capacity | 400-600 portions |
| Heating Power | 32 kW |
| Total Power Consumption | 32.8 kW |
| Total Current | 49A |
| Circuit Breaker Requirement | 60A |
| Power Supply | 3N-380V AC/50Hz |
| Included | One rack-type trolley |
| External Dimensions (mm) | 935 × 795 × 1800 |
| Cavity Entrance Size (mm) | 609 × 1380 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.4 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 271.5 kg |
| Gross Weight | 311.5 kg |
| Package Dimensions (mm) | 1080 × 930 × 1980 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |

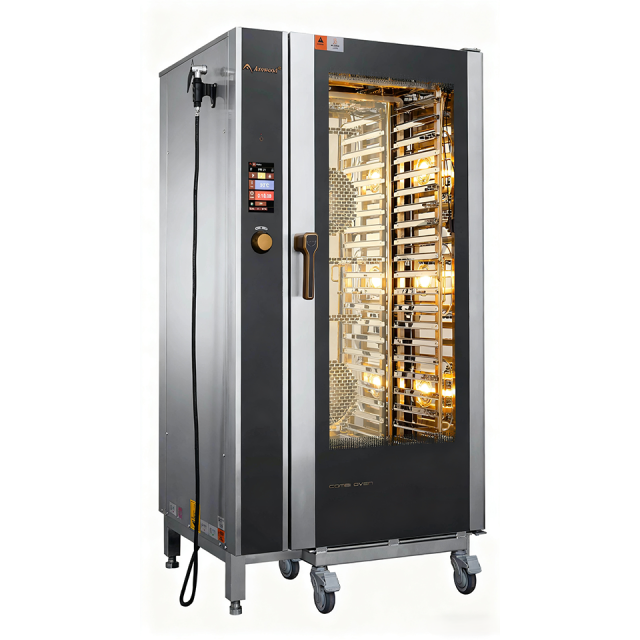

The Axewood AWE-201DX-M2 20-Layer Universal Steam Oven delivers industrial-scale cooking capacity for high-volume food production facilities. This heavy-duty combi oven combines a powerful 32kW heating system with precision temperature control, maintaining ±1°C accuracy across a 30-290°C operating range. The intelligent control system features 9 three-stage programmable menus and a built-in 4-point meat probe, while the frequency conversion fan with 3 adjustable speeds ensures optimal heat distribution for consistent results.
Industrial Capacity - 20 GN pan capacity producing 400-600 meals daily
Precision Control - ±1°C temperature accuracy with programmable menus
Advanced Airflow - Frequency conversion fan with 3 speed settings
High-Power Performance - 32kW heating system for rapid operation
Central Kitchens - Mass production for multiple outlets
Large Catering - Banquet and event services
Institutional Dining - Schools, hospitals, and corporate facilities
Energy-efficient 32.8kW power consumption
Heavy-duty construction for continuous use
Three automated cleaning programs
Included rack trolley for operational efficiency
Backed by 2-year warranty with complete documentation and professional technical support.
