| tem | English Translation |
|---|---|
| Model | SZQT40-G |
| Gas Type | LPG / LNG (12T) |
| Rated Gas Pressure (KPa) | 2.8 / 2 |
| Effective Volume (L) | ≤ 29 |
| Steam-up Time (s) | 120-150 |
| Ignition Method | Smart Pulse Ignition |
| Working Pressure (MPa) | 0~0.08 (Atmospheric) |
| Applicable Water Pressure (MPa) | 0.15~0.6 (Atmospheric Type) |
| Main Material | 304# Stainless Steel |
| Flame Failure Device | Ion-type |
| Service Life | 8 years |
| Standard | GB 35848-2024 |
| Rated Voltage | AC220/50Hz |
| Steam Outlet Size | DN25 Female (after accessory installation) |
| Water Inlet Size | DN15 Male |
| Gas Inlet Size | DN15 Male |
| Drain Outlet Size | DN25 Male |
| Exhaust Pipe Diameter (mm) | φ50 |
| Rated Power (W) | 120 |
| Atmospheric Series Steam Temp. (°C) | 100-125 |
| Rated Heat Input (kW) | 40 |
| Evaporation Capacity | 55 |
| Gas Consumption (LPG) (m³/h) | 3.2 |
| Gas Consumption (Natural Gas) (m³/h) | 4 |
| Dimensions (mm) | 570 × 470 × 900 |
| Package Dimensions | 650 × 550 × 1070 |
| Package Method | Standard Carton Box |
| Net Weight (Atmospheric Series) (kg) | 54 |

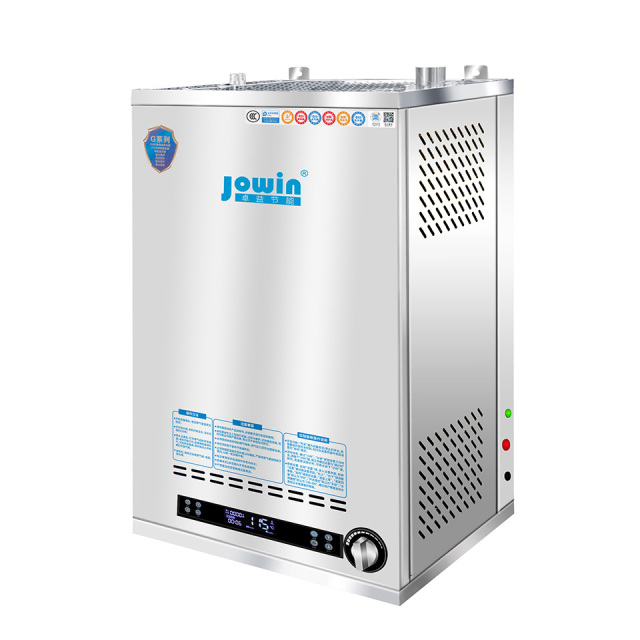

The SZQT40-G Commercial Gas Steam Generator is a high-performance industrial steam solution designed for commercial kitchens, food processing plants, and catering operations. Powered by either LPG or LNG (12T), this reliable system delivers rapid steam generation with an impressive steam-up time of just 120-150 seconds. With 40kW rated heat input and an evaporation capacity of 55kg/h, it produces steam temperatures between 100-125°C to meet various processing and sanitization needs. Built with 304# stainless steel and featuring advanced safety features, this generator is engineered for durability, efficiency, and compliance with the latest industry standards.
Dual Gas Compatibility - Operates efficiently on both LPG and Natural Gas (12T) for flexible fuel options
Rapid Steam Generation - Produces steam in just 120-150 seconds, minimizing wait times during peak operations
High Performance Output - Delivers 40kW rated heat input with 55kg/h evaporation capacity for consistent steam supply
Smart Pulse Ignition - Ensures reliable and efficient ignition system for consistent performance
Ion-type Flame Failure Device - Advanced safety feature that automatically shuts off gas if flame is detected as abnormal
Atmospheric Design - Working pressure of 0~0.08MPa with water pressure range of 0.15~0.6MPa
Food-Grade Construction - Main material is 304# stainless steel, ensuring durability and hygiene compliance
Food Processing Perfect for steaming, cooking, blanching vegetables, seafood, and meats
Commercial Kitchens Ideal for restaurant and hotel food preparation
Food Sanitization Effectively sanitizes equipment, utensils, and work surfaces
Beverage Production Suitable for pasteurization and processes requiring precise steam control
Catering Operations Reliable steam supply for banqueting and event catering
Industrial Processes Suitable for various applications requiring consistent steam output
Energy Efficient - Optimized gas consumption reduces operational costs
Quick Installation - Standardized connection sizes for easy setup and integration
Low Maintenance - Durable 304# stainless steel construction minimizes downtime
Safety Compliant - Meets GB 35848-2024 standards with advanced safety features
Long Service Life - 8-year service life for excellent return on investment
Space Efficient - Compact design fits well in commercial kitchen environments
Contact us today for bulk ordering inquiries, customization options, or to request technical specifications for your specific commercial steam generation needs. Free shipping available on qualifying orders. Our professional team is ready to assist with installation guidance and after-sales support to ensure optimal performance of your SZQT40-G Commercial Gas Steam Generator.
