| Feature | 600L Model | 800L Model | 1000L Model |
|---|---|---|---|
| Model | 600 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE | 800 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE | 1000 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE |
| Power Supply | 220/50HZ | 220/50HZ | 220/50HZ |
| Motor Power | 1KW | 1KW | 1KW |
| Heating Power | 0.95KW | 0.95KW | 0.95KW |
| Vacuum Pump Rate | 20m³/h | 20m³/h | 20m³/h |
| Air Pressure Requirement | 0.85MPa | 0.85MPa | 0.85MPa |
| Sealing Length | 600mm | 800mm | 1000mm |
| Sealing Width | 10mm | 10mm | 8mm |
| Dimensions (L×W×H) | 700×680×1400mm | 900×680×1400mm | 1096×840×1865mm |
| Material | 201 Stainless Steel | 201 Stainless Steel | 304 Stainless Steel |
| Net Weight | 85kg | 85kg | 150kg |
| Adjustable Range | 600mm | 600mm | 470mm |
| Min. Height | 300mm | 300mm | 900mm |
| Max. Height | 900mm | 900mm | 1370mm |
| Control System | Standard | Standard | PLC + Touchscreen |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Warranty | 1 Year | 1 Year | 1 Year |

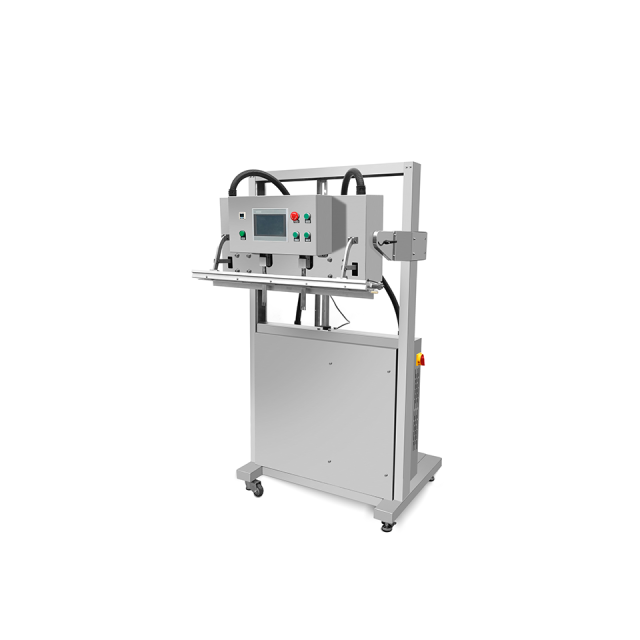

Engineered for space-constrained production environments, the Stainless Steel External Suction Vertical series maximizes floor efficiency while delivering professional packaging performance. Available in 600mm, 800mm, and 1000mm sealing lengths, these vertical-design machines feature robust stainless steel construction and advanced height adjustment systems. The premium 1000L model includes PLC and touchscreen controls for precision operation, making this series ideal for food processors, pharmaceutical companies, and industrial packaging facilities seeking to optimize their workspace utilization.
Space-Saving Vertical Design
Compact footprints with 1400-1865mm heights maximize production area efficiency while maintaining full packaging capability
Adjustable Height Range
Flexible height adjustment from 300mm to 1370mm accommodates various product sizes, from small items to tall packages
Premium Stainless Steel Construction
201 and 304 stainless steel bodies ensure corrosion resistance and meet food-grade hygiene requirements
Advanced Control Systems
Standard models feature basic controls while 1000L model includes PLC and touchscreen for precise parameter adjustment
Efficient External Suction Technology
20m³/h vacuum pump rate provides rapid air removal without chamber loading requirements
Professional Sealing Performance
10mm and 8mm sealing widths with 0.95KW heating power ensure reliable, consistent package closures
Perfect for diverse packaging requirements
Food processing and meat packaging operations
Pharmaceutical and medical device packaging
Industrial components and parts protection
Electronics and sensitive equipment sealing
Chemical and laboratory product packaging
Retail and consumer goods packaging
Standard 220V/50Hz power supply for easy installation
0.85MPa air pressure requirement for consistent performance
Heavy-duty construction (85-150kg) ensures operational stability
CE and RoHS certified for international safety compliance
Comprehensive 1-year warranty coverage
Energy-efficient 1KW motor power design
Optimize your production space with these vertical packaging solutions. Combining space-efficient design with professional performance, this series offers smart packaging solutions for businesses seeking to maximize their facility layout. Contact us to learn more about configuration options and scheduling an onsite demonstration.
