| Parameter | Specification |
|---|---|
| Model | SZQT60-G |
| Gas Type | LPG / LNG (12T) |
| Rated Gas Pressure | 2.8 KPa (LPG) / 2 KPa (LNG) |
| Effective Volume | ≤ 29L |
| Steam-up Time | 120-150 seconds |
| Ignition Method | Smart Pulse Ignition |
| Working Pressure | 0~0.08 MPa (Atmospheric) |
| Applicable Water Pressure | 0.15~0.6 MPa (Atmospheric Type) |
| Main Material | 304# Stainless Steel |
| Flame Failure Device | Ion-type |
| Service Life | 8 years |
| Standard | GB 35848-2024 |
| Rated Voltage | AC220/50Hz |
| Rated Power | 120W |
| Steam Temperature | 100-125°C (Atmospheric Series) |
| Rated Heat Input | 60kW |
| Evaporation Capacity | 80kg/h |
| Gas Consumption | 5 m³/h (LPG) / 6 m³/h (Natural Gas) |
| Dimensions | 640 × 540 × 900 mm |
| Net Weight | 69 kg |

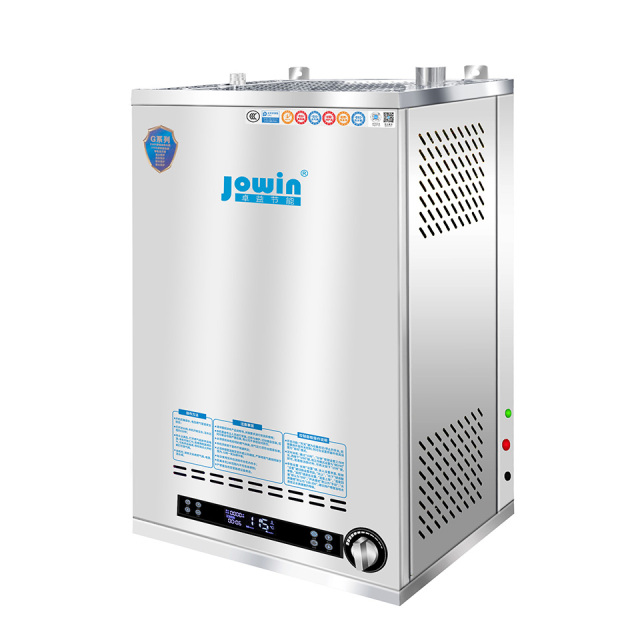

The SZQT60-G Commercial Gas Steam Generator delivers powerful, efficient steam generation for commercial kitchens, food processing facilities, and industrial applications. Engineered with precision, this unit features a 60kW burner that produces 80kg/h of steam at 100-125°C, making it perfect for food processing, sterilization, and various industrial applications. Built with 304# stainless steel and featuring smart pulse ignition, this steam generator offers reliable performance and a long 8-year service life.
High Steam Output - 80kg/h evaporation capacity for commercial-scale operations
Dual Fuel Support - Compatible with both LPG and natural gas (12T) for flexible installation
Smart Ignition System - Pulse ignition for quick, reliable startup
Safety Assurance - Ion-type flame failure protection for secure operation
Durable Construction - 304# stainless steel body for long-lasting performance in commercial environments
Applications
Food Processing - Ideal for steaming, cooking, and food preparation in commercial kitchens
Sterilization - Perfect for equipment and tool sterilization in food service and medical facilities
Industrial Use - Suitable for various industrial processes requiring steam
Laundry Services - Effective for pressing and fabric treatment
Bakeries - Excellent for proofing and baking applications
Powerful 60kW burner with adjustable heat output
Quick steam-up time of 120-150 seconds for efficient operation
Energy-efficient design with optimal gas consumption (5m³/h LPG, 6m³/h natural gas)
Atmospheric pressure operation for safe, reliable performance
Precise temperature control for consistent steam quality
