| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ370L-V | Dasa Core Modified Atmosphere Technology - Dasa's Proprietary Core Technology |
| Max Film Width (mm) | 370 | Main Structure & Shell - 304 Stainless Steel |
| Max Film Diameter (mm) | 220 | Molding Parts - 6061 Aluminum (Anodized) |
| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Panasonic (Japan) |
| Gas Mixing Accuracy (%) | ±2% Fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 3-4 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈240 | Cylinder - Airtac (Taiwan) ACQ125 |
| Output Capacity (boxes/hour) Output 2 | ≈400 | Solenoid Valve - Airtac (Taiwan) |
| Output Capacity (boxes/hour) Output 4 | ≈700 | Touch Screen - Kunlun Tongtong |
| Vacuum Pump Capacity (m³/h) | 63 | Film Winding Motor - Baokelee |
| Power Supply (V/Hz) | 380/50 | Control System - Dasa Intelligent Self-developed Control System |
| Total Power (kW) | 4.5 | Push Button Switch - Delixi |
| Working Pressure (MPa) | 0.6-0.8 | Circuit Breaker - Delixi |
| Equipment Weight (kg) | 265 | Relay - Delixi |
| Equipment Dimensions L×W×H (mm) | 1050×975×1430 | Fuse Holder - Delixi |
| Gross Weight (kg) | 388 | Vacuum Pump - Zhongde 40 Pump |
| Net Weight (kg) | 388 | Film Winding System - Dual-hand Expandable Shaft |
| Package Dimensions L×W×H (mm) | 1160×1050×1590 | Pressure Sensor - Panasonic (Japan) |

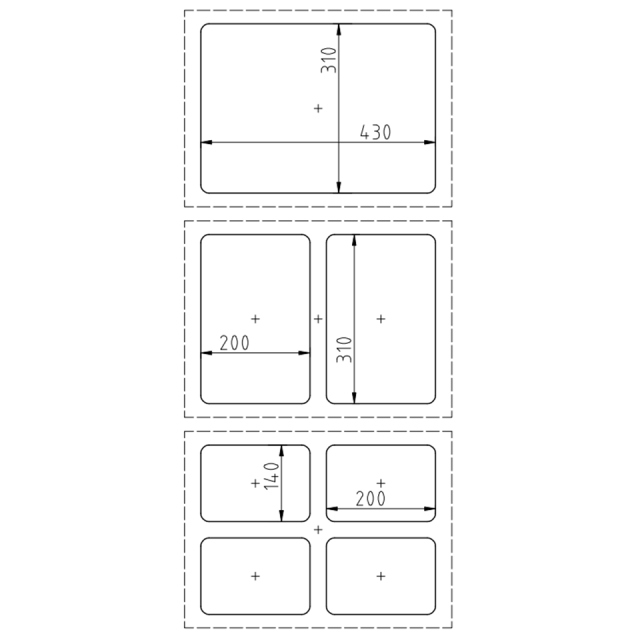

| Max Tray Size (mm) Output 2 | 310×200×80 (*2) | Phase Sequence Protector - CHINT |
| Max Tray Size (mm) Output 4 | 200×140×80 (*4) |

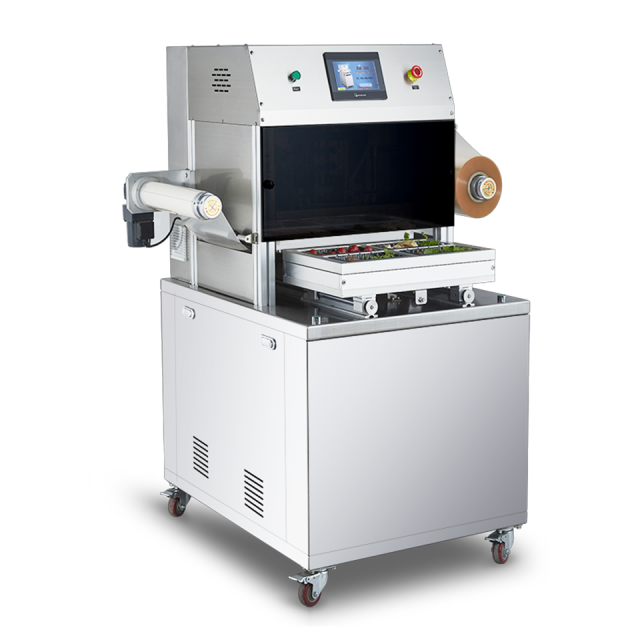

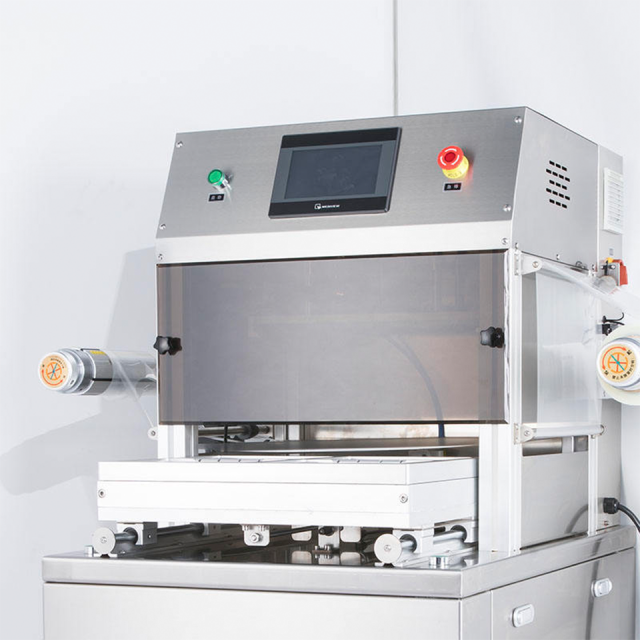

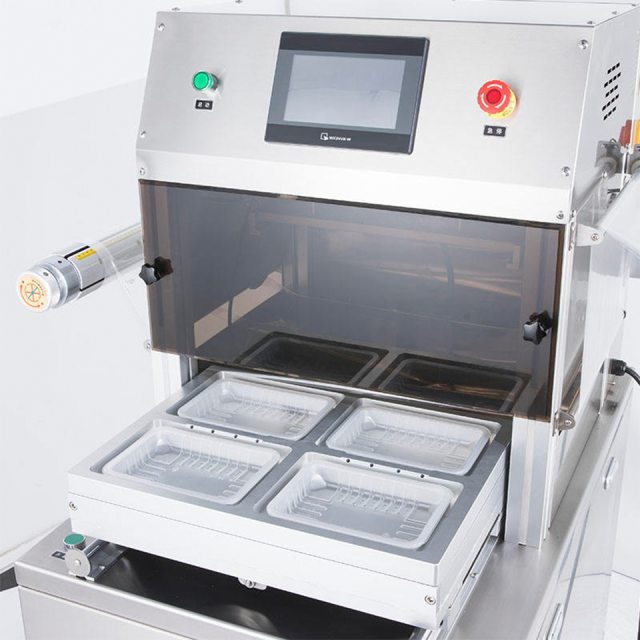

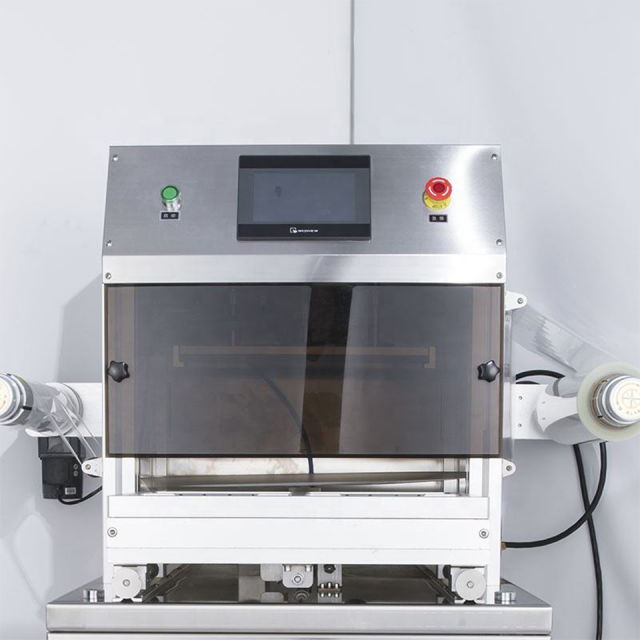

The DQ370L-V Vertical Modified Atmosphere Packaging Machine delivers industrial-grade food preservation through advanced vacuum-gas flush technology, achieving exceptional ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with heavy-duty 304 stainless steel construction and 6061 anodized aluminum molds, this robust system maintains reliable 3-4 cycles per minute operation while handling multiple tray configurations. Equipped with a powerful 63 m³/h vacuum pump and professional-grade components including Panasonic sensors and Airtac pneumatic systems, it provides consistent performance for medium-to-large scale production requirements. The intuitive Kunlun Tongtong touchscreen interface and intelligent control system make sophisticated MAP packaging accessible for food processors seeking to enhance product freshness and extend shelf life.
Precision Atmosphere Control - Maintains ≥99% gas replacement rate with laboratory-grade ±2% accuracy for optimal preservation
Industrial Vacuum Performance - 63 m³/h pump capacity ensures complete air removal and precise gas flushing
Multi-Output Efficiency - Flexible configurations process 240-700 packages hourly across different tray sizes
Professional Component Integration - Features Panasonic sensors, Airtac pneumatic systems, and Delta power supply
Meat & Poultry Processing - Ideal for fresh cuts, marinated products, and portioned meats
Prepared Food Production - Perfect for ready meals, ingredient kits, and meal solutions
Seafood Packaging - Excellent for fish fillets, shellfish, and value-added seafood products
Consistent vacuum-gas flush performance across production cycles
Quick changeover capability between different tray configurations
Industrial-grade components ensure reliable operation in demanding environments
Energy-optimized design with efficient 4.5kW power consumption
Each machine undergoes rigorous quality testing and includes comprehensive operational documentation. Our technical team provides complete installation guidance and ongoing maintenance support to ensure optimal performance.
