| Specification | Details |
|---|---|

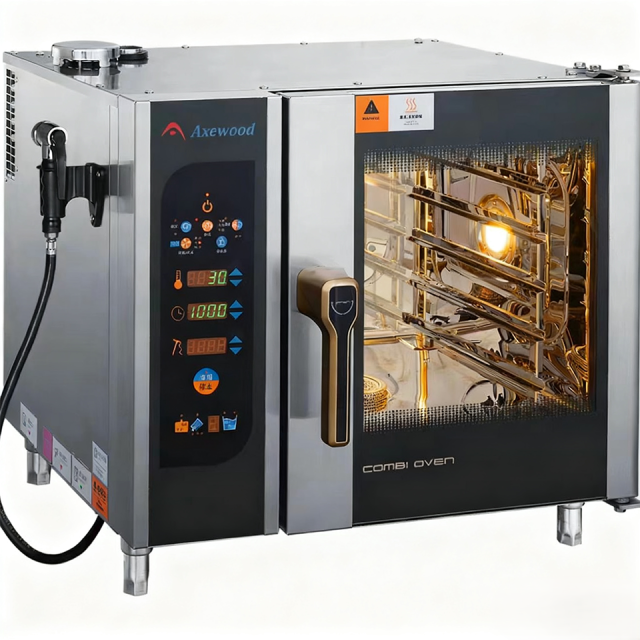

| Model | 6-Layer 6-Tray Universal Steam Oven AWE-0623DX-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Editor | 9 three-stage programmable menus |
| Cleaning Methods | 3 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Standard Fan |
| Capacity | 6 x 2/3 GN |
| Daily Meal Capacity | 35-100 portions |
| Heating Power | 4.8 kW |
| Total Power Consumption | 4.85 kW |
| Total Current | 21A |
| Circuit Breaker Requirement | 25A |
| Power Supply | N-220V AC/50Hz/1PH |
| External Dimensions (mm) | 770 × 635 × 615 |
| Cavity Entrance Size (mm) | 395 × 350 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 75 kg |
| Gross Weight | 90 kg |
| Package Dimensions (mm) | 840 × 700 × 800 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |
With a capacity of 6 GN pans and daily output of 35-100 meals, this space-saving unit (770×635×615mm) delivers restaurant-grade capabilities in a practical package. The 3 automatic cleaning modes and standard 220V power supply make it ideal for bakeries, cafes, and small restaurants seeking professional results with easy operation.
Precision Temperature Control - Maintains ±1°C accuracy across 30-290°C range
Flexible Programming - 9 three-stage menus for versatile cooking options
Professional Capacity - 6 GN pan capacity producing 35-100 meals daily
Smart Monitoring - Built-in 4-point meat probe ensures perfect results
Small Bakeries - Perfect for artisan breads and pastries
Cafe Kitchens - Ideal for light meals and baked goods
Restaurant Operations - Suitable for proteins and vegetable dishes
Compact design optimizes kitchen space
Energy-efficient 4.8kW heating system
User-friendly programming interface
Durable construction for daily use
Backed by 2-year warranty with professional technical support and detailed operational guidance.
