| Specification | Details |
|---|---|
| Model | 10-Layer 10-Tray Universal Steam Oven AWE-101DX-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Editor | 9 three-stage programmable menus |
| Cleaning Methods | 3 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Frequency Conversion Variable Speed Fan |
| Capacity | 10 x 1/1 GN |
| Daily Meal Capacity | 150-250 portions |
| Heating Power | 16 kW |
| Total Power Consumption | 16.4 kW |
| Total Current | 25A |
| Circuit Breaker Requirement | 40A |
| Power Supply | N-380V AC/50Hz/3PH |
| External Dimensions (mm) | 935 × 795 × 1100 |
| Cavity Entrance Size (mm) | 609 × 734 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 132 kg |
| Gross Weight | 170 kg |
| Package Dimensions (mm) | 1080 × 930 × 1300 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |

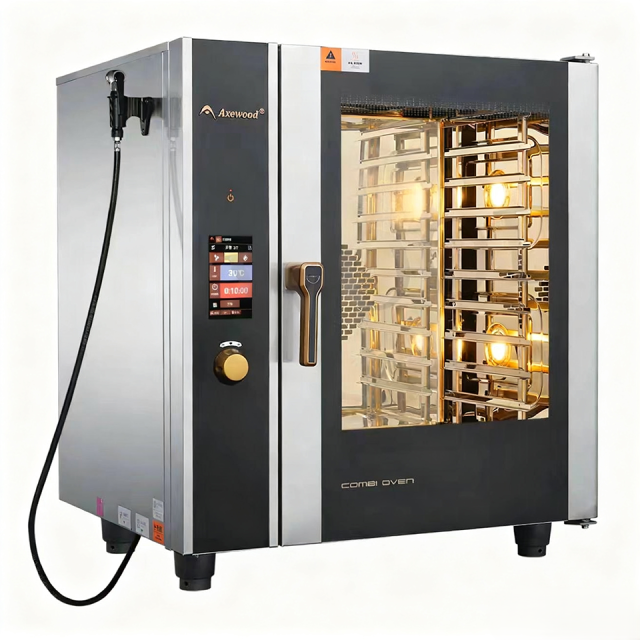

The Axewood AWE-101DX-M2 10-Layer Universal Steam Oven delivers high-volume cooking performance for demanding commercial kitchens, combining powerful 16kW heating with precision steam control. This heavy-duty combi oven maintains exceptional ±1°C temperature accuracy across a 30-290°C range, featuring professional-grade construction and intelligent programming. The system includes 9 three-stage programmable menus and a built-in 4-point meat probe for consistent cooking results.
High-Capacity Design - 10 GN pan capacity producing 150-250 meals daily
Precision Temperature Control - ±1°C accuracy with full steam/convection capability
Advanced Programming - 9 three-stage menus for versatile cooking options
Professional Performance - 16kW heating system for rapid heating and recovery
Hotel Banquet Operations - High-volume meal production for events
Large Restaurant Kitchens - Versatile cooking for busy service periods
Institutional Catering - Efficient batch cooking for large facilities
Energy-efficient 16.4kW power consumption
Frequency conversion fan for optimal heat distribution
Three automated cleaning programs
Standard 380V 3-phase power compatibility
Backed by 2-year warranty with professional technical support and comprehensive operational documentation.
