| Parameter | Technical Specification |
|---|---|
| Punching & Shearing Speed | 70 times/minute |
| Feeding Distance | 0.5-4.0 mm |
| Overall Dimensions | 1600×3000×2200 mm |
| Material Thickness | 0.5-4.0 mm |
| Maximum Shearing Width | 2500 mm |
| Motor Power | 60 kW |
| Equipment Weight | 15 tons |
| Control System | CNC Numerical Control System |
| Maximum Punching Diameter | 50×120 mm |
| Punching Force | 180 tons |

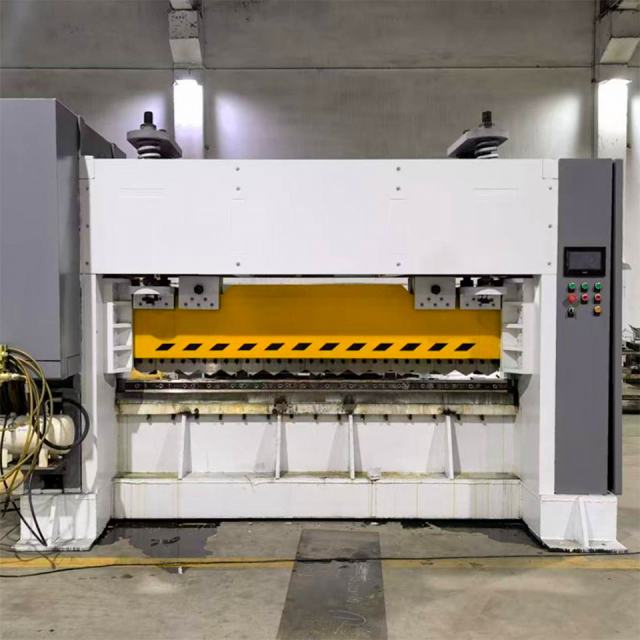

Designed for industrial manufacturing applications, the Stencil Punching Machine delivers precision perforation capabilities for metal processing operations. This heavy-duty equipment combines robust construction with advanced CNC control to produce consistent, high-quality perforated patterns across various materials. The machine's powerful punching force and flexible configuration make it suitable for diverse industrial applications requiring precise hole patterns and efficient material processing.
High-Speed Operation - 70 strokes/minute punching capacity ensures efficient production throughput
Precision Control System - CNC numerical control maintains accurate 0.5-4.0mm feeding distance with consistent hole patterns
Heavy-Duty Construction - 15-ton frame withstands continuous 180-ton punching force for long-term reliability
Versatile Material Handling - Processes 0.5-4.0mm thickness materials with up to 2500mm maximum shearing width
Large Capacity Tooling - Accommodates punching dies up to 50×120mm for diverse pattern requirements
Industrial-Grade Power - 60kW motor provides consistent performance for high-volume production environments
Architectural and construction material manufacturing
Industrial machinery protective components
Decorative metal panel fabrication
Ventilation system components
Electronic enclosure production
Precision-guided sliding mechanism ensures consistent punching accuracy
Rigid frame design minimizes vibration during high-speed operation
User-friendly CNC interface simplifies operation and parameter adjustment
Durable tooling system maintains sharpness through extended production runs
Comprehensive safety features protect operators and equipment
For industrial operations requiring reliable perforation solutions, the Stencil Punching Machine offers professional-grade performance with precision engineering. Contact us for technical specifications and application-specific configuration options.
