| Specification | Details |
|---|---|
| Model | 6-Layer -Tray Touchscreen Universal Steam Oven AWE-061B-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Capacity | 300 Programs |
| Menu Programming Steps | Up to 15 steps per program |
| Cleaning Methods | 6 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Frequency Conversion Variable Speed Fan |
| Adjustable Air Speed | 50-110% |
| Steam (Humidity) Control | 10-100% Adjustable |
| Capacity | 6 x 1/1 GN |
| Daily Meal Capacity | 50-150 portions |
| Heating Power | 9 kW |
| Total Power Consumption | 9.4 kW |
| Total Current | 14A |
| Circuit Breaker Requirement | 25A |
| Power Supply | N-380V AC/50Hz/3PH |
| External Dimensions (mm) | 935 × 795 × 830 |
| Cavity Entrance Size (mm) | 609 × 484 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 112.5 kg |
| Gross Weight | 158 kg |
| Package Dimensions (mm) | 1080 × 930 × 1030 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |

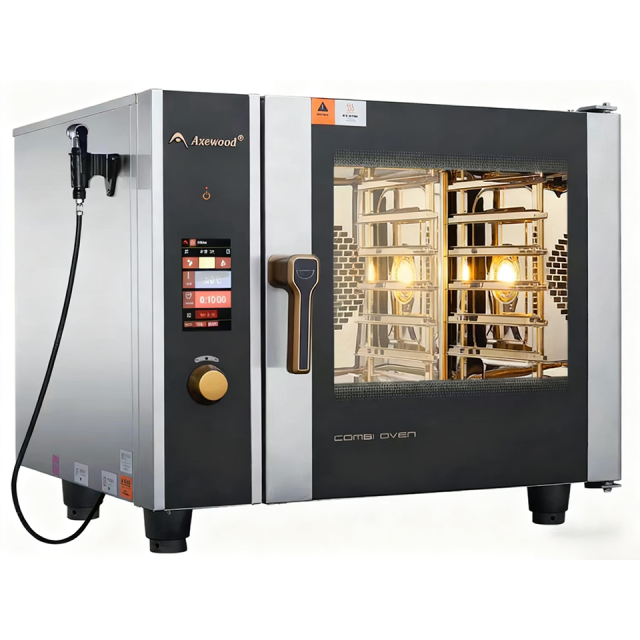

The Axewood 6-Tray Combi Oven delivers professional-grade performance for medium-volume commercial kitchens, combining advanced frequency conversion technology with precise steam control. This robust unit maintains exceptional ±1°C temperature accuracy across a 30-290°C range while offering 10-100% adjustable humidity control. The intelligent programming system features 300 customizable recipes with 15-step sequencing capability, supported by a built-in 4-point meat probe for perfect cooking results.
Featuring a variable speed fan with 50-110% adjustable airflow, this oven ensures optimal heat distribution for consistent baking and roasting. With a generous 6 full-size GN pan capacity and daily output of 50-150 meals, the heavy-duty 9kW heating system delivers powerful performance in a compact footprint. The six automated cleaning programs simplify maintenance while standard 380V 3-phase power ensures reliable operation in demanding kitchen environments.
Precision Cooking Control - ±1°C temperature accuracy with 10-100% steam adjustment
Advanced Airflow System - Frequency conversion fan with 50-110% speed adjustment
Smart Programming - 300 customizable recipes with 15-step sequencing
Professional Capacity - 6 full GN pans handling 50-150 meals daily
Restaurant Kitchens - Versatile cooking for proteins, vegetables and baked goods
Hotel Food Service - Efficient meal production for banquet operations
Bakery Operations - Perfect for artisan breads and pastry production
Variable speed fan for optimal heat distribution
Heavy-duty construction for continuous use
Six automated cleaning programs
Backed by 2-year warranty with professional technical support and comprehensive documentation.
