Technical Specifications
| Specification |
Parameter |
| Power Voltage (V/Hz) |
AC220/50 |
| Vacuum Pump Motor Power (W) |
370 |
| Sealing Power (W) |
200 |
| Ultimate Vacuum Pressure (Kpa) |
1 |
| No. of Sealing Bars for Each Chamber (pcs) |
1 |
| Chamber Dimension (L×W×H) (mm) |
390*285*50 |
| Sealing Length (mm) |
260 |
| Sealing Width (mm) |
10 |
| Vacuum Pump Rate (m³/h) |
6.5 |
| Material for Vacuum Chamber |
Stainless Steel 201 |
| Dimension (L×W×H) (mm) |
500*340*360 |
| Net Weight (kg) |
29 |
| Distance from Sealing Bar to Chamber Side (mm) |
340 |

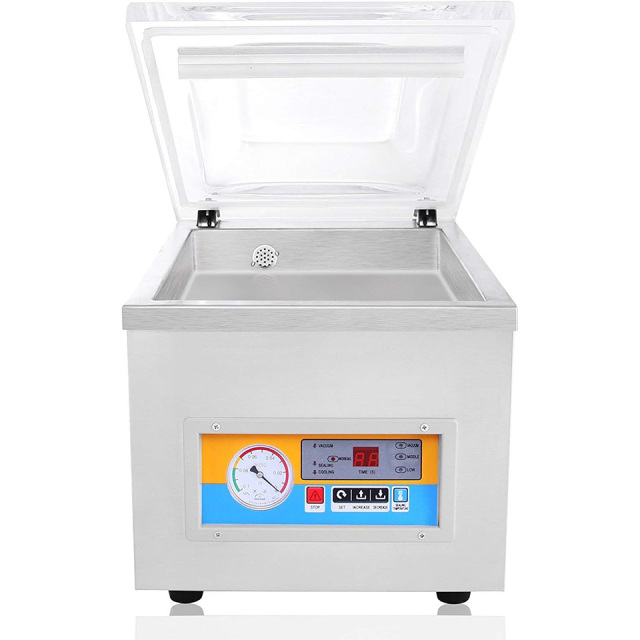

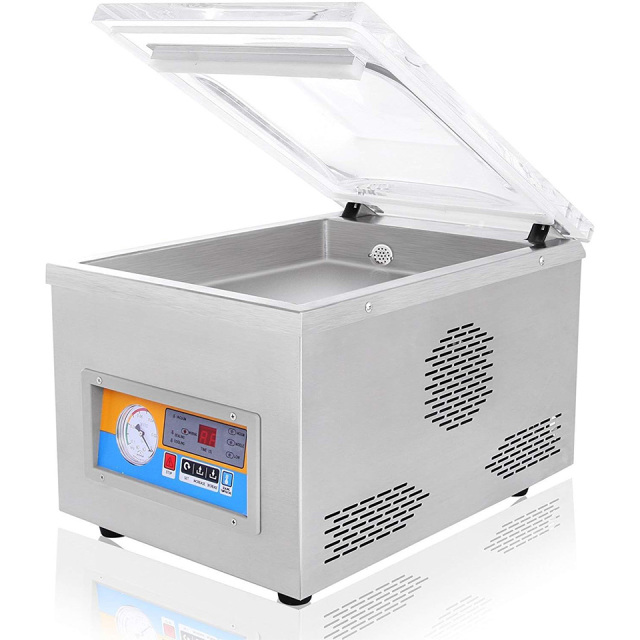

Product Overview
The Desktop Vacuum Sealer is designed for versatile vacuum packaging of various foods, including cooked dishes, pickled products, beans, and fruits. It keeps food fresh while preserving its original taste and extending shelf life. Featuring advanced sealing technology, the machine tightly bonds packaging materials to prevent spoilage. It is also suitable for packaging small non-food items such as coins, financial documents, vouchers, and other valuables.
Key Features
•Advanced Sealing Technology – Ensures tight, reliable sealing for food and small items, preventing oxidation, mildew, and moisture damage.
•Versatile Application – Suitable for sealing liquids, solids, powders, pastes, and various small products.
•Durable & Compact Design – Built with strong materials in a space-saving desktop structure.
•Easy Operation – Simple controls with adjustable vacuum and sealing times for efficient use.
How to Use
Vacuum Time – Adjust based on packaging requirements and vacuum gauge readings. For high-moisture or special products, the time may be extended up to 50 seconds depending on actual conditions.
Sealing Time – Typical sealing time ranges from 1.5 to 2 seconds.
Fuse Tube – Includes a built-in fuse for safety.
Power Switch – Turn ON to start operation and OFF to stop.
Operating Steps
Connect the power supply and ensure proper grounding.
Turn on the power switch.
Adjust vacuum time as needed.
Pack the items and place them at the sealing position inside the vacuum chamber.
Press the organic cover to start the machine; it stops automatically when the vacuum returns to zero.
Applications
Food Industry — Tea, snacks, dried and fresh foods, and medicinal materials.
Commercial & Retail — Shops and research institutes requiring reliable small-item vacuum packaging.
Medical & Laboratory — Packaging precision instruments, chemicals, or sensitive materials.
Advantages
Compact and space-saving desktop design
Advanced sealing technology for reliable protection
Easy operation with adjustable vacuum and seal settings
Wide range of applications from food to small valuables
High efficiency with durable stainless steel construction
