| Electric Standard Package - Semi-Automatic | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DF250T | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Width (mm) | 245 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 180 | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Packaging Speed (times/min) | 7～8 | Film Rewinding Motor | Taisong |
| Production Capacity (boxes/hour) 1-out-1 | ≈480 | Control System | Dasheng Intelligent Self-developed Control System |
| Power Supply (V/Hz) | 220/50 | Push Button Switch | Meiyu |
| Total Power (kW) | 0.6 | Proximity Switch | Hugong |
| Equipment Weight (kg) | 25 | Sealing Motor | Boke Li |
| Equipment Dimension LWH (mm) | 465360655 | ||
| Packaged Gross Weight (kg) | 31.7 | ||
| Anneng Volumetric Weight (kg) | 29 | ||
| Outer Carton Dimension LWH (mm) | 500380670 | ||

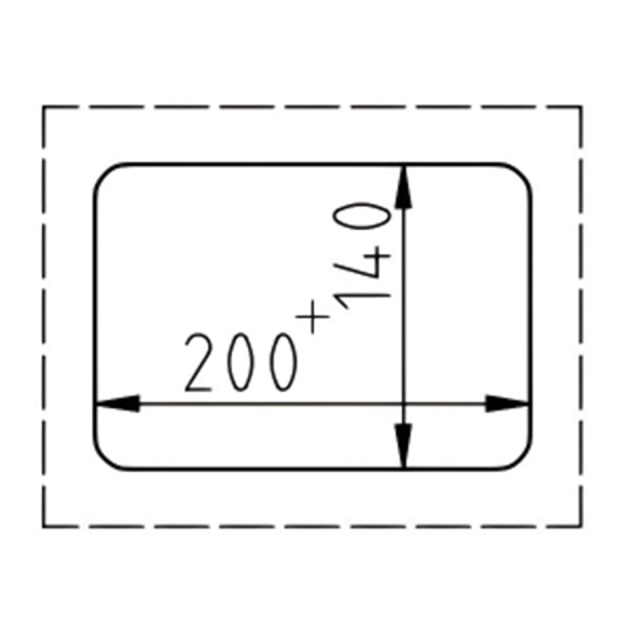

| Max. Tray Size (mm) - 1-out | 200140120 (*1) |

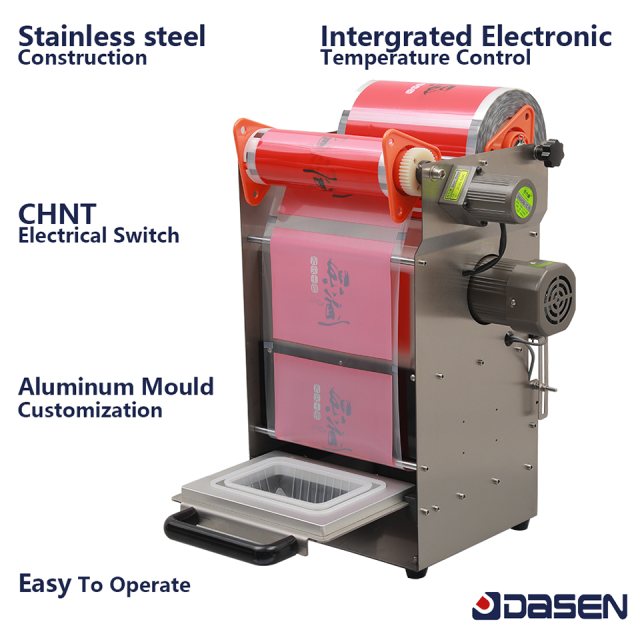

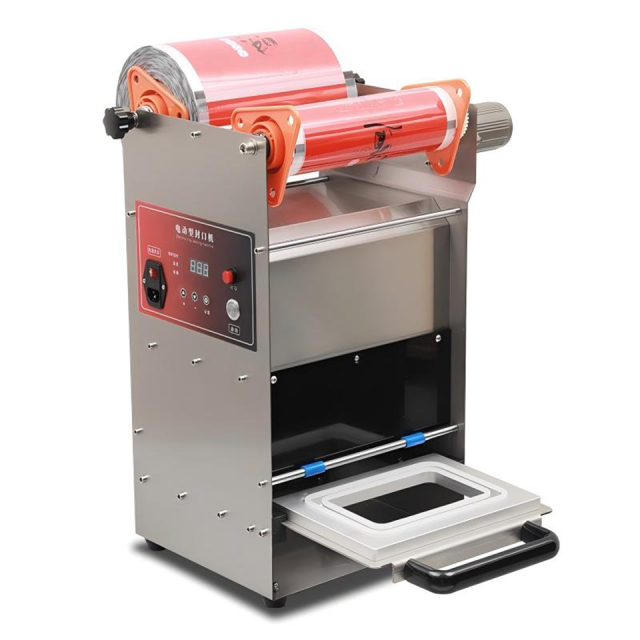

The DF250T Electric Security Box Sealer delivers professional-grade, tamper-evident packaging for high-value products. Engineered for small to medium-scale operations, this semi-automatic machine processes up to 480 boxes per hour with consistent 7–8 cycles per minute. Its compact stainless steel body (465×360×655 mm) and precision-engineered 6061 anodized aluminum molds ensure durability and compliance with industrial hygiene standards—making it the ideal solution for secure packaging across sectors.
Tamper-Proof Sealing Technology – Creates irreversible seals to protect contents from unauthorized access, ideal for high-security applications.
Semi-Automatic Electric Operation – Combines manual loading with motorized sealing for efficiency and reduced operator effort.

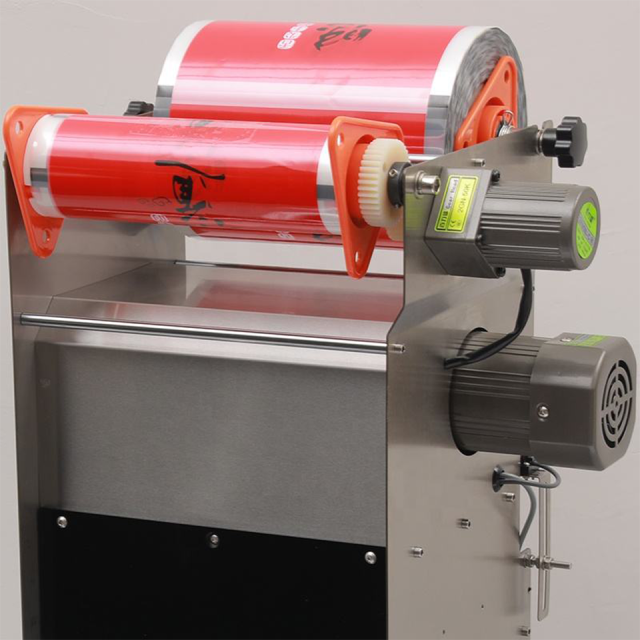

High-Precision Film Control – Equipped with a photoelectric sensor and Taisong rewinding motor for smooth, accurate film alignment.
Compact & Industrial Build – Stainless steel structure and anodized molds offer long-term reliability in limited spaces.
Energy-Saving Performance – Low power consumption (0.6 kW) supports continuous operation without high operational costs.
Secure Product Packaging – Electronics, luxury items, confidential documents, and legal evidence.
Pharmaceutical & Healthcare – Medical devices, lab samples, and sterile products requiring tamper evidence.

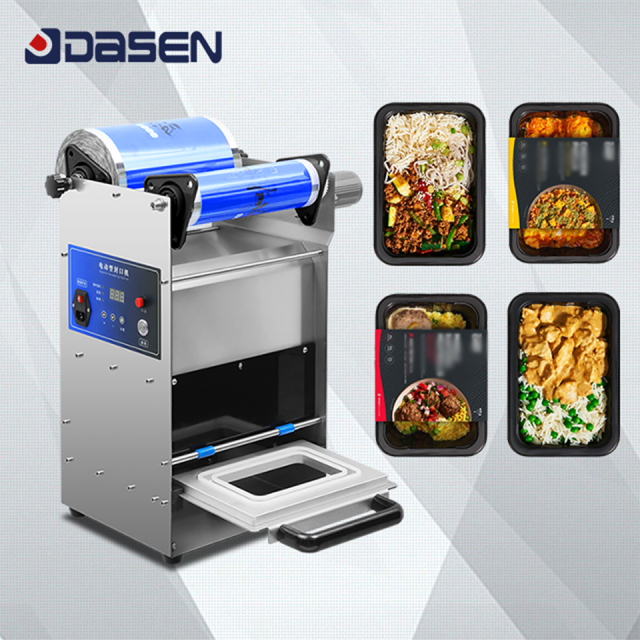

Food & Premium Goods – High-end foods, supplements, and gourmet items where package integrity is critical.
Logistics & Distribution – Sealing shipped boxes to prevent tampering during transit.
✅ Reliable and repeatable tamper-evident seals
✅ Easy-to-use with minimal training required
✅ Built with industrial-grade electrical components
✅ Compatible with a range of box sizes up to 200×140×120 mm
✅ Low maintenance and quiet operation
Upgrade your security packaging with the DF250T Electric Security Box Sealer. Contact us today for quotes, custom configurations, or to schedule a demo. Let’s help you build a safer, more reliable packaging process.
