| Electric Standard Package - Full Automatic | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | DF250TA | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Width (mm) | 260 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 180 | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Packaging Speed (times/min) | 7～8 | Film Rewinding/In-out Motor | Taisong |
| Production Capacity (boxes/hour) 1-out-1 | ≈480 | Control System | Dasheng Intelligent Self-developed Control System |
| Power Supply (V/Hz) | 220/50 | Changeover Switch | Chint |
| Total Power (kW) | 0.7 | Run/Emergency Stop Switch | Delixi |
| Equipment Weight (kg) | 40.5 | Power Switch | Meiyu |
| Equipment Dimension LWH (mm) | 550425685 | Proximity Switch | Hugong |
| Packaged Gross Weight (kg) | 50.65 | Sealing Motor | Boke Li |
| Anneng Volumetric Weight (kg) | 44 | Coin Switch | Chilong |
| Outer Carton Dimension LWH (mm) | 590490705 | ||

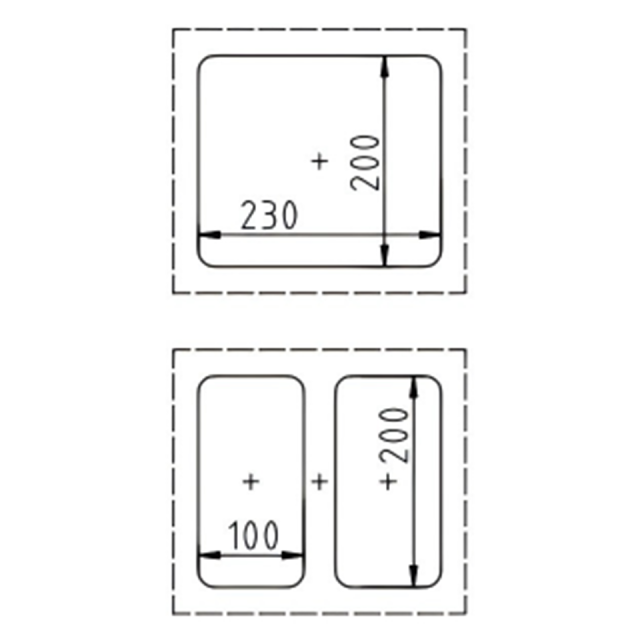

| Max. Tray Size (mm) - 1-out | 230200120 (*1) |

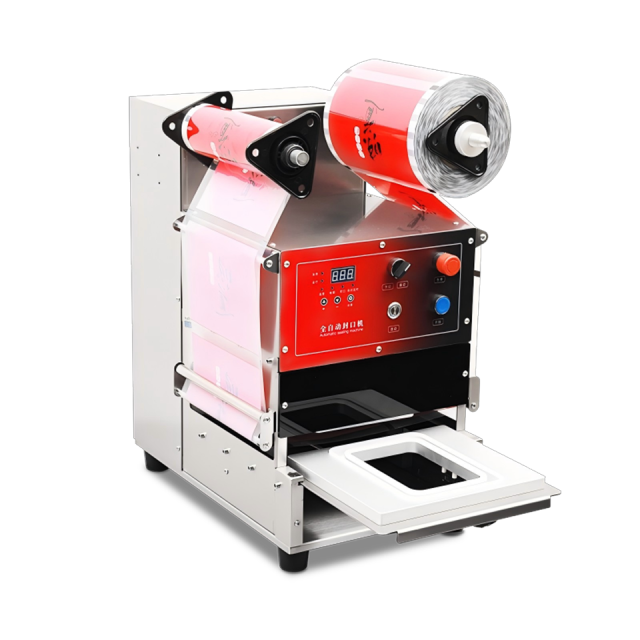

The DF250TA Full-Automatic Container Sealing Machine delivers efficient, hands-free sealing for food-grade containers, designed to streamline operations in busy production environments. With a 260 mm film width capacity and consistent 7–8 cycles per minute, it accommodates trays up to 230×200×120 mm — ideal for meal kits, fresh produce, and prepared foods. Built with stainless steel and anodized aluminum molds, it ensures lasting performance while meeting food safety standards.

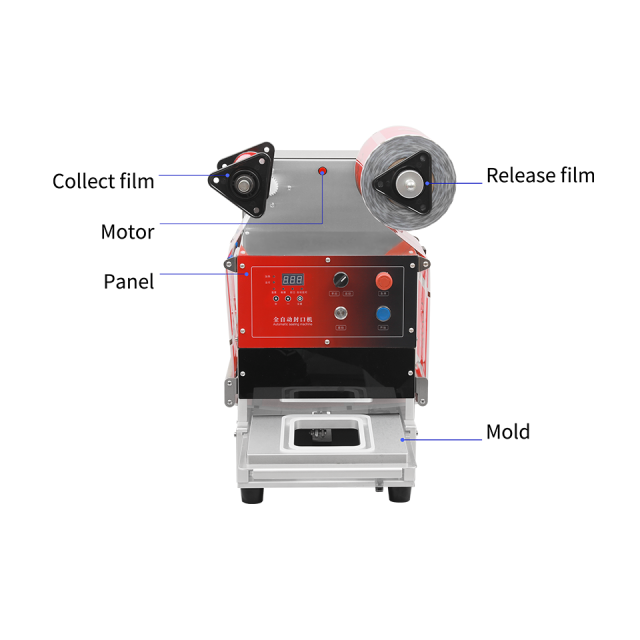

Fully Automated Sealing – Enables continuous operation with automatic film feeding and cutting for improved productivity.
Wide Compatibility – Supports trays up to 230×200×120 mm, suitable for a variety of container types and portion sizes.

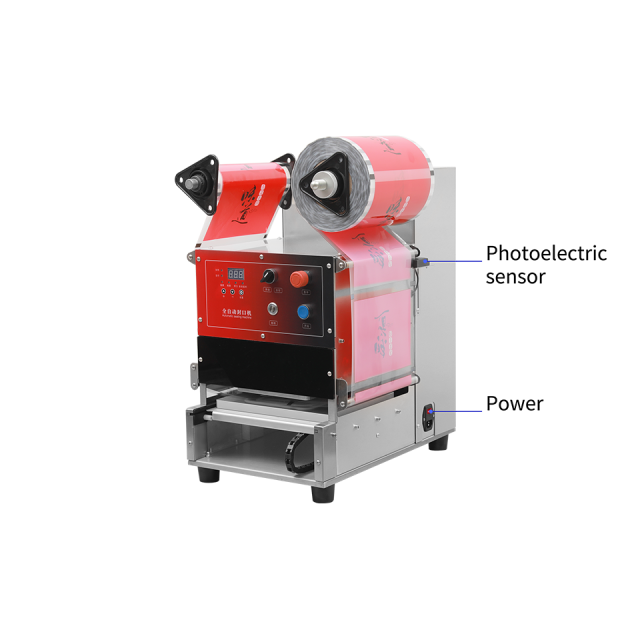

High-Quality Components – Equipped with Taisong motors, Xinling photoelectric sensors, and Chilong coin switches for precision and reliability.
User-Friendly Control Panel – Intuitive switches and emergency stop functions ensure safe and simple operation.
Compact & Robust Design – Space-saving dimensions (550×425×685 mm) with a durable stainless steel frame for long-term use.
Ready-to-eat meal packaging
Fresh fruit and vegetable tray sealing
Snack and dessert packaging
Retail and supermarket food counters
Small-batch food production lines
Fast, consistent sealing with minimal operator input
Easy to clean and maintain
Energy-efficient (0.7 kW) for reduced operating costs
Compatible with common film and tray types
Ideal for small to mid-volume food businesses
Enhance your food packaging workflow with the DF250TA — where automation meets affordability. Contact us today for pricing, customization, or to schedule a live demonstration!
