| Parameter | DZ-500/2S Deepened Series | DZ-600/2S 150mm Deep | DZ-600/2S 200mm Deep | DZ-600/2S 300mm Deep | DZ-700/2SB Deepened Series |
|---|---|---|---|---|---|
| Basic Information | |||||
| English Name | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine |
| Model | DZ-500/2S | DZ-600/2S | DZ-600/2S | DZ-600/2S | DZ-700/2SB |
| Series | Deepened Series | 150mm Deepened | 200mm Deepened | 300mm Deepened | Deepened Series |
| Technical Specifications | |||||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 | 2000 | 3000 |
| Sealing Power (W) | 1000 | 1000 | 1000 | 1000 | 1300 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 580×440×(150-300) | 680×440×150 | 680×440×200 | 680×440×300 | 750×620×(150-300) |
| Deep Chamber Dimensions (L×W×H) (mm) | - | 680×440×150 | 680×440×200 | 680×440×300 | - |
| Sealing Length (mm) | 500 | 600 | 600 | 600 | 700 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 | 20×2 | 20×2 | 20×3 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1295×780×(1090-1340) | 1495×780×1090 | 1495×780×1240 | 1495×780×1340 | 1600×810×(1090-1340) |
| Net Weight (kg) | 200 | 230 | 240 | 245 | 360 |
| Center Distance Between Sealing Bars (mm) | 500 | 500 | 500 | 500 | 530 |

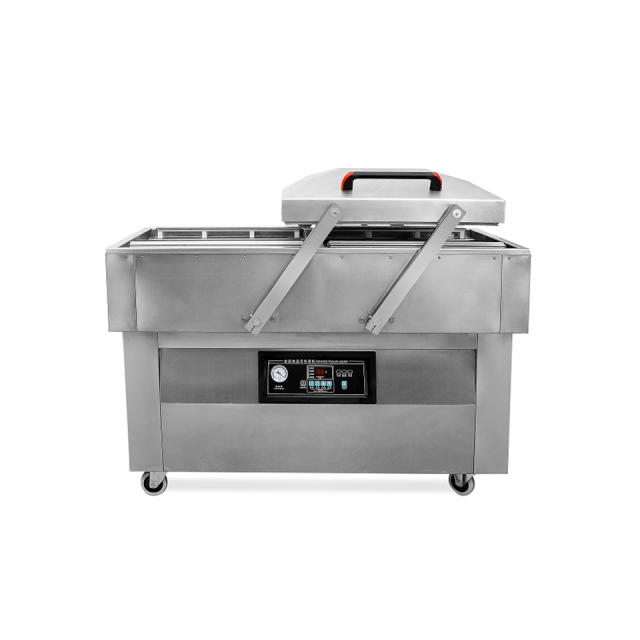

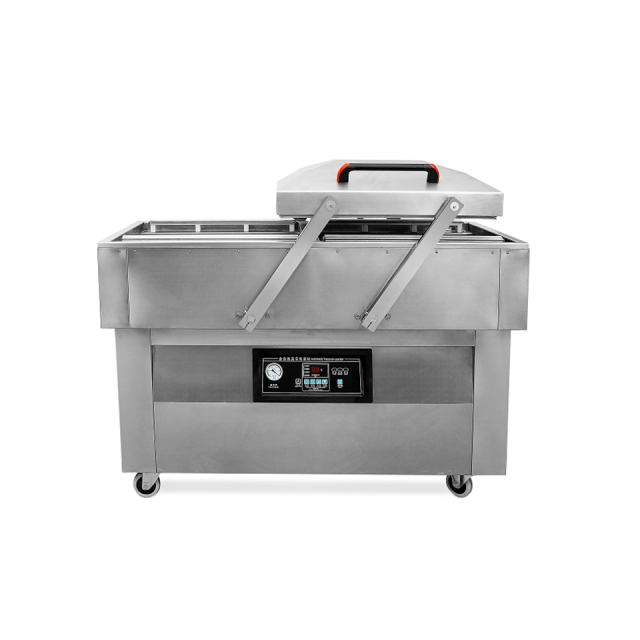

Engineered for specialized food packaging applications, the Double-Chamber Deepened Series Vacuum Packaging Machine delivers enhanced vertical capacity through its innovative deep chamber design. This professional-grade system combines extended chamber depth with continuous dual-chamber operation to accommodate taller products and optimize production efficiency. Available in multiple depth configurations, the machine addresses unique packaging requirements for bulk and irregularly shaped food products in commercial processing environments.
Enhanced Depth Capacity - 150mm to 300mm adjustable chamber height accommodates taller products and bulk packaging requirements
Multiple Depth Options - Choose from 150mm, 200mm, or 300mm chamber depths to match specific product dimensions
Dual Chamber Efficiency - Continuous alternating operation maximizes production output with minimal downtime
Progressive Sizing Range - Available in 500mm, 600mm, and 700mm sealing lengths for various production scales
High-Performance Vacuum - 2000-3000W motor power with 40-60m³/h extraction capacity ensures complete air removal
Dual Sealing System - Two 10mm sealing bars per chamber with 1000-1300W power deliver secure package integrity
Tall or stacked product packaging
Bulk food and ingredient packaging
Irregularly shaped food products
Portioned meat and poultry packaging
Prepared meal and multi-layer packaging
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Heavy-duty construction (200-360kg) ensures stability during continuous operation
Extended chamber design (580×440mm to 750×620mm) supports various product configurations
Industrial-grade components guarantee reliable 24/7 performance
Standard 380V power compatibility meets industrial facility requirements
For food processing operations requiring enhanced vertical packaging capacity, the Double-Chamber Deepened Series Vacuum Packaging Machine offers specialized solutions with professional-grade performance. Contact us for technical specifications and depth configuration guidance.
