| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ320L-E | Dasa Core Modified Atmosphere Packaging Technology |
| Film Max Width (mm) | 320 | Main Structure & Shell - 304 Stainless Steel |
| Film Max Diameter (mm) | 220 | Molding Parts - 6061 Aluminum (Anodized) |

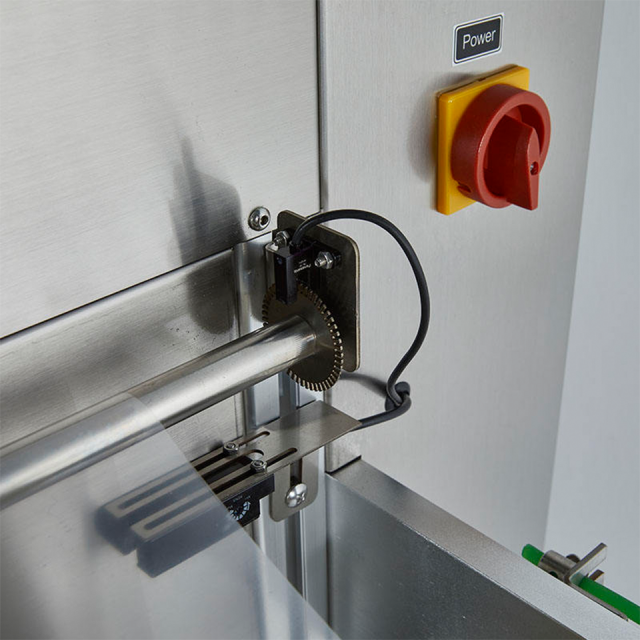

| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Dasa Self-developed |
| Gas Mixing Accuracy (%) | ±2% Fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 5-6 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈360 | Cylinders - Airtac (Taiwan) ACQ125 |
| Output Capacity (boxes/hour) Output 2 | ≈640 | Solenoid Valves - Airtac (Taiwan) |
| Power Supply (V/Hz) | 220/50 | Touch Screen - Kunlun Tongtong |

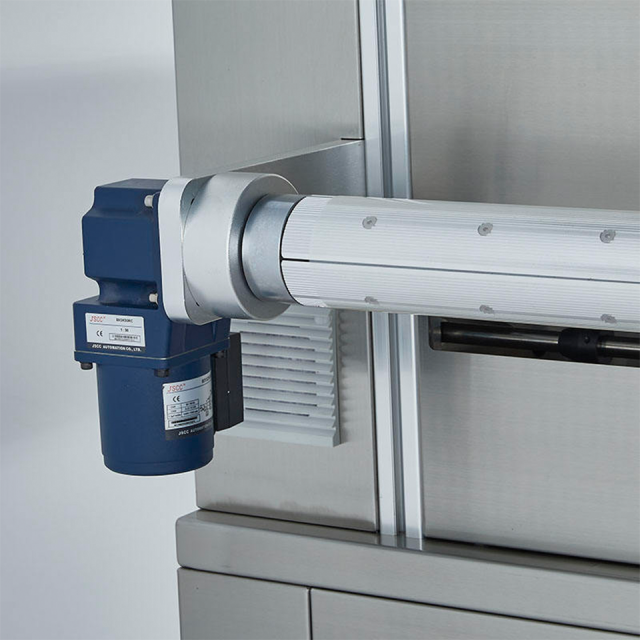

| Total Power (kW) | 1.5 | Film Winding Motor - Baokelee |
| Working Pressure (MPa) | 0.6-0.8 | Control System - Dasa Intelligent Self-developed System |
| Equipment Weight (kg) | 141.5 | Push Button Switch - Delixi |
| Equipment Dimensions L×W×H (mm) | 1000×915×1400 | Circuit Breaker - Delixi |
| Gross Weight (kg) | 351 | Relay - Delixi |
| Net Weight (kg) | 351 | Fuse Holder - Delixi |
| Package Dimensions L×W×H (mm) | 1100×1020×1560 | Film Winding System - Dual-hand Expandable Shaft |

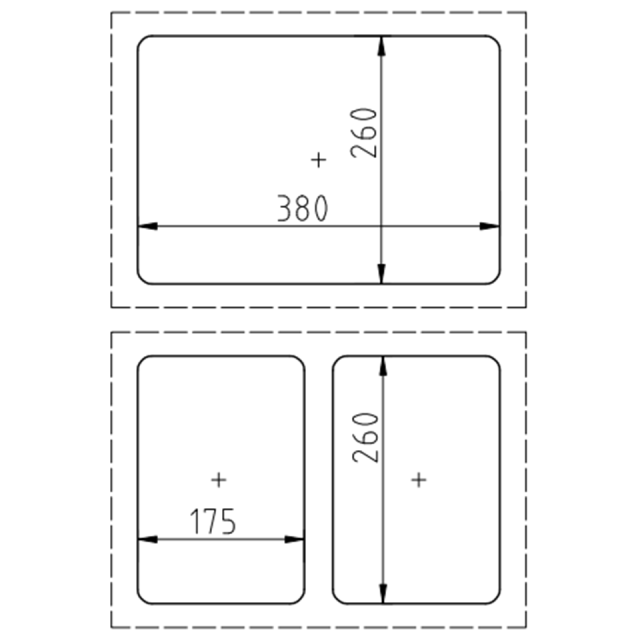

| Max Tray Size (mm) Output 1 | 380×260×80 (*1) | Solid State Relay - Xinda |
| Max Tray Size (mm) Output 2 | 260×180×80 (*2) |

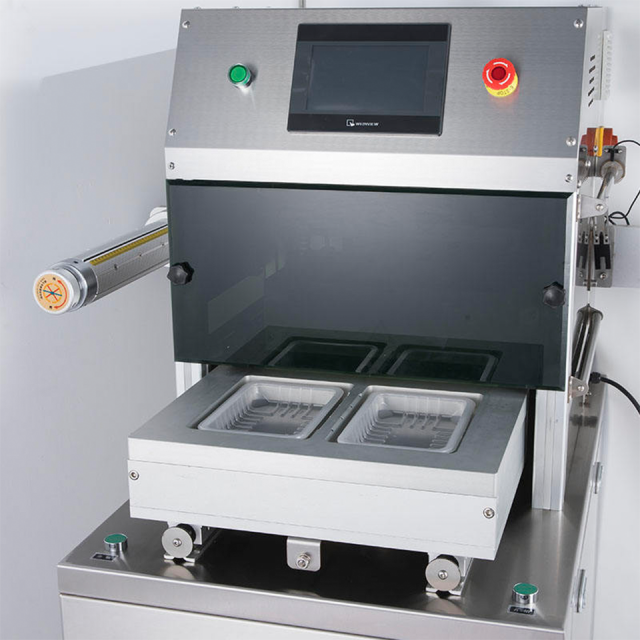

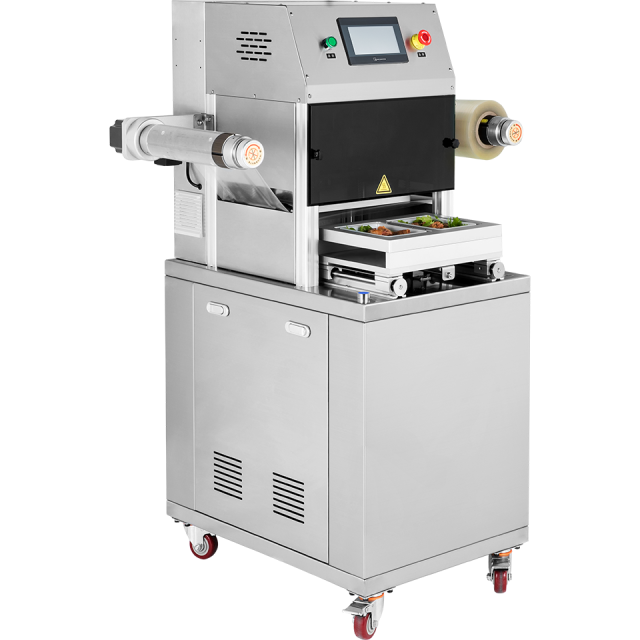

The DQ320L-E Vertical Modified Atmosphere Packaging Machine delivers exceptional food preservation through advanced gas flushing technology, achieving laboratory-grade ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with durable 304 stainless steel construction and 6061 anodized aluminum molds, this system maintains reliable 5-6 cycles per minute operation while ensuring optimal atmosphere control for extended shelf life. Equipped with Airtac pneumatic components and Delta power systems, it provides consistent performance for medium-scale production requirements. The intuitive Kunlun Tongtong touchscreen interface and intelligent control system make professional MAP packaging accessible for food processors seeking to enhance product quality and freshness.
Precision Gas Control - Maintains ≥99% gas replacement rate with ±2% accuracy for optimal food preservation
High-Speed Operation - Delivers 5-6 cycles per minute with dual-output capacity up to 640 packages hourly
Professional Components - Features Airtac pneumatic systems, Delta power supply, and self-developed photoelectric sensors
Durable Construction - 304 stainless steel frame with anodized aluminum molds for long-lasting performance
Fresh Meat & Poultry - Ideal for portioned cuts, marinated products, and value-added meats
Prepared Foods - Perfect for ready-to-eat meals, ingredient kits, and meal preparation services
Fresh Produce - Excellent for seasonal fruits, vegetables, and salad mixes
Specialty Products - Suitable for dairy items, baked goods, and gourmet food lines
Consistent gas flushing performance across all production cycles
Quick changeover capability between different tray configurations
Energy-efficient operation with optimized 1.5kW power consumption
Compact vertical design maximizes production space utilization
Compatible with various film types and packaging materials
Each machine undergoes comprehensive testing and includes detailed operational guidance. Our technical team provides complete installation support and ongoing maintenance services.
