| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ320L-V | Modified Atmosphere Packaging Technology |
| Film Max Width (mm) | 320 | Main Structure & Shell - 304 Stainless Steel |
| Film Max Diameter (mm) | 220 | Molding Parts - 6061 Aluminum (Anodized) |
| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Panasonic (Japan) |
| Gas Mixing Accuracy (%) | ±2% Fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 3-4 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈240 | Cylinders - Airtac (Taiwan) ACQ125 |
| Output Capacity (boxes/hour) Output 2 | ≈400 | Solenoid Valves - Airtac (Taiwan) |
| Vacuum Pump Capacity (m³/h) | 63 | Touch Screen - Kunlun Tongtong |
| Power Supply (V/Hz) | 380/50 | Film Winding Motor - Baokelee |
| Total Power (kW) | 3.5 | Control System - Dasa Intelligent Self-developed System |
| Working Pressure (MPa) | 0.6-0.8 | Push Button Switch - Delixi |
| Equipment Weight (kg) | 220 | Circuit Breaker - Delixi |
| Equipment Dimensions L×W×H (mm) | 1000×915×1400 | Relay - Delixi |
| Gross Weight (kg) | 351 | Fuse Holder - Delixi |
| Net Weight (kg) | 351 | Vacuum Pump - Zhongde 40 |

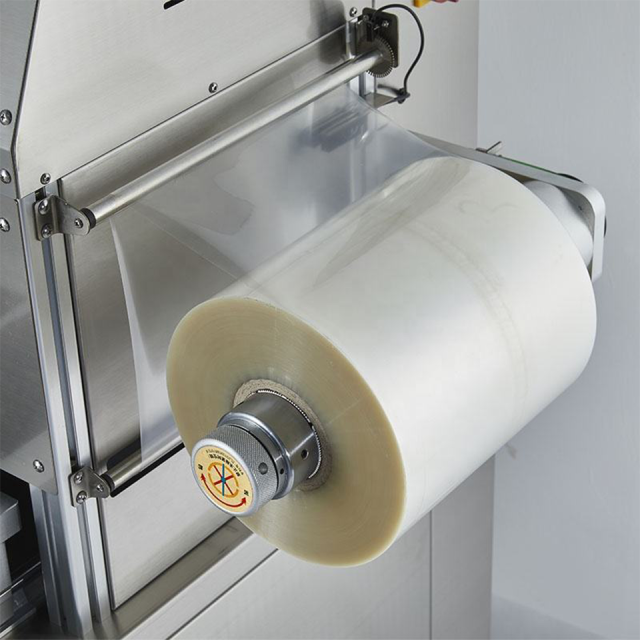

| Package Dimensions L×W×H (mm) | 1100×1020×1560 | Film Winding System - Dual-hand Expandable Shaft |
| Max Tray Size (mm) Output 1 | 380×260×80 (*1) | Pressure Sensor - Panasonic (Japan) |
| Max Tray Size (mm) Output 2 | 260×175×80 (*2) | Phase Sequence Protection - CHINT |

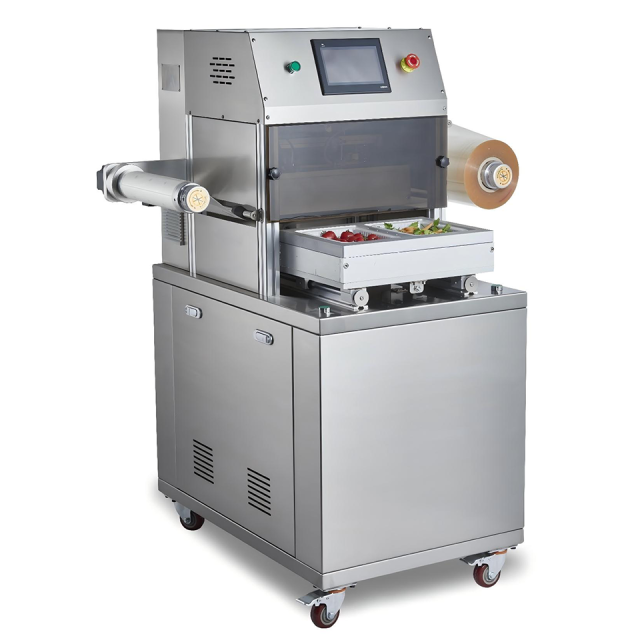

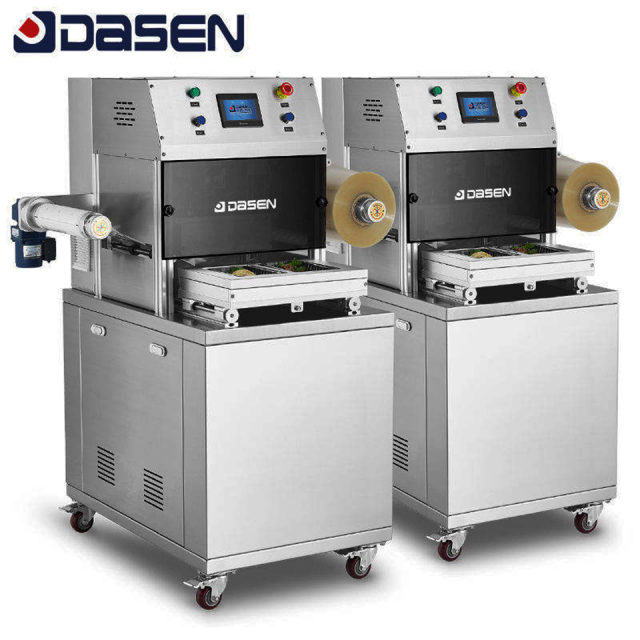

The DQ320L-V Vertical Modified Atmosphere Packaging Machine delivers industrial-grade food preservation through advanced vacuum-gas flush technology, achieving exceptional ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with heavy-duty 304 stainless steel construction and 6061 anodized aluminum molds, this robust system maintains reliable 3-4 cycles per minute operation while ensuring perfect atmosphere control. Equipped with a powerful 63 m³/h vacuum pump and professional-grade components including Panasonic sensors and Airtac pneumatic systems, it provides consistent performance for medium-to-large scale production requirements. The intuitive Kunlun Tongtong touchscreen interface and intelligent control system make sophisticated MAP packaging accessible for food processors seeking to enhance product freshness and shelf life.
Precision Atmosphere Control - Maintains ≥99% gas replacement rate with laboratory-grade ±2% accuracy for optimal preservation
Industrial Vacuum Performance - 63 m³/h pump capacity ensures complete air removal and precise gas flushing
Professional Component Integration - Features Panasonic sensors, Airtac pneumatic systems, and Delta power supply
Robust Construction - Heavy-duty 304 stainless steel frame with anodized aluminum molds

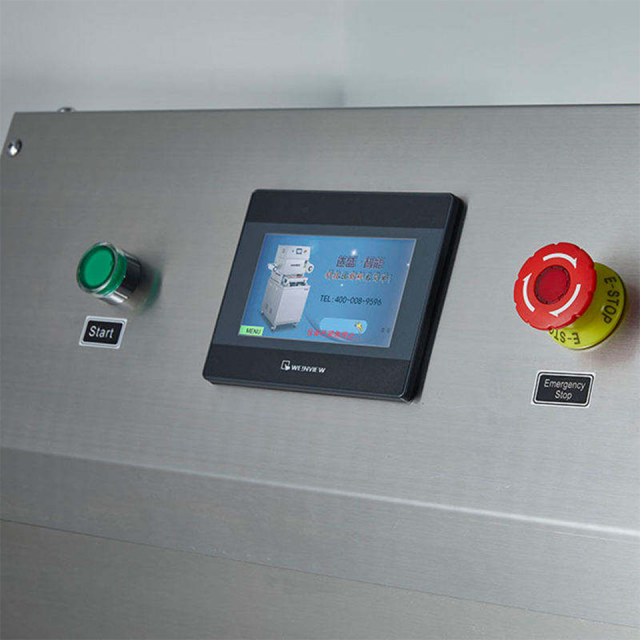

Intelligent Operation - Kunlun Tongtong touchscreen with self-developed control system
Meat & Poultry Processing - Ideal for fresh cuts, marinated products, and portioned meats
Prepared Food Production - Perfect for ready meals, ingredient kits, and meal solutions
Seafood Packaging - Excellent for fish fillets, shellfish, and value-added seafood products
Fresh Produce - Suitable for seasonal fruits, vegetables, and salad mixes
Consistent vacuum-gas flush performance across production cycles
Quick changeover capability between different tray configurations
Industrial-grade components ensure reliable operation
Compact vertical design optimizes production space
Compatible with various packaging materials and film types
