| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ330VSL | Main Structure & Shell |
| Type | Vertical Skin Packaging Machine | Molding Parts |
| Max Film Width (mm) | 320 | Photoelectric Sensor (Length Counter) |
| Max Film Diameter (mm) | 220 | DC Power Supply |
| Packing Speed (times/min) | 2-3 | Variable Frequency Drive |
| Output Capacity (boxes/hour) Output 1 | ≈180 | Pressure Sensor |
| Output Capacity (boxes/hour) Output 2 | ≈300 | Cylinder |
| Vacuum Pump Capacity (m³/h) | 63 | Solenoid Valve |

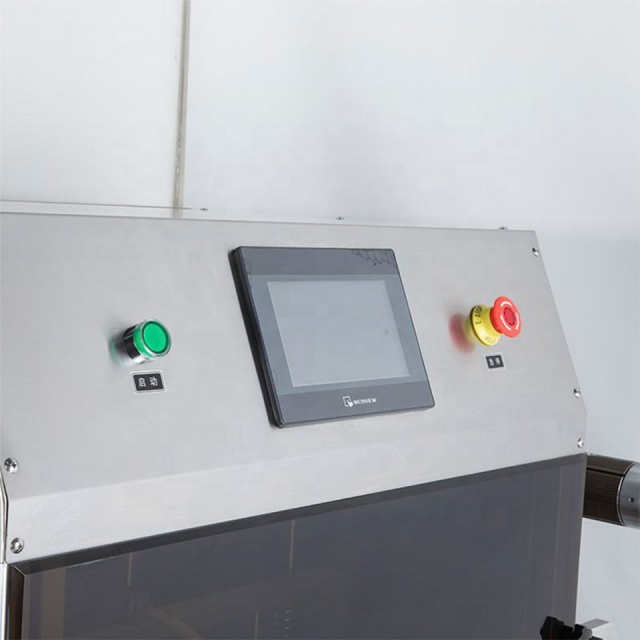

| Power Supply (V/Hz) | 380/50 | Touch Screen |

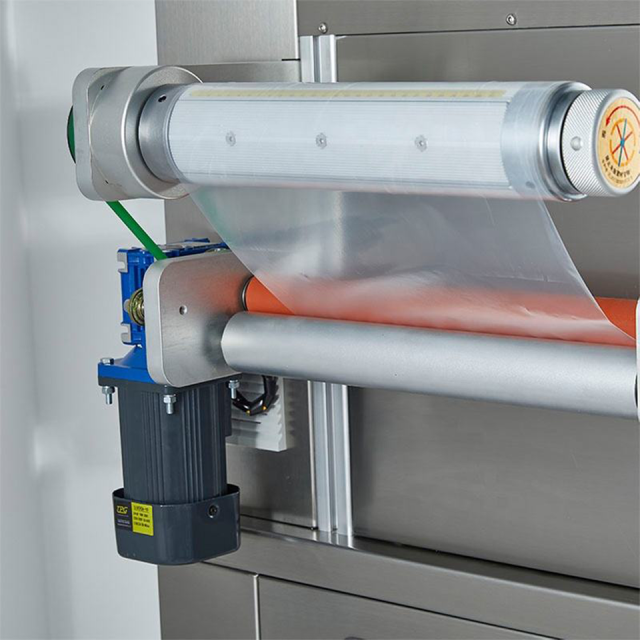

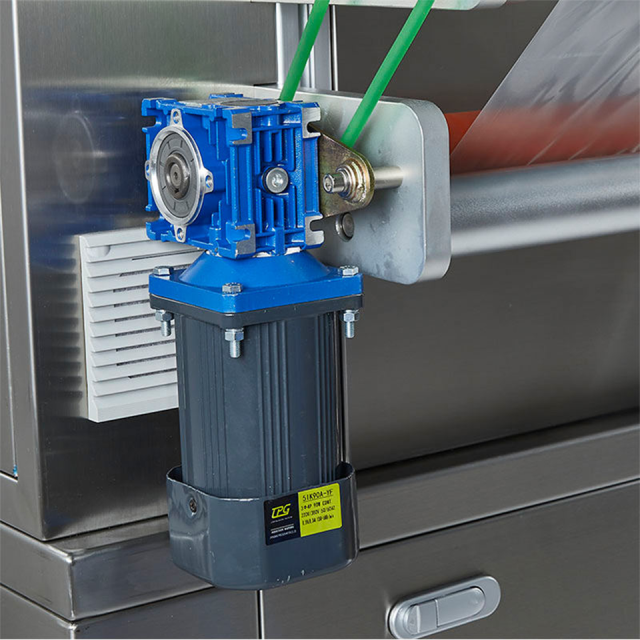

| Total Power (kW) | 4 | Film Winding Motor |
| Working Pressure (MPa) | 0.6-0.8 | Control System |
| Equipment Weight (kg) | 237 | Push Button Switch |
| Equipment Dimensions L×W×H (mm) | 1020×1005×1400 | Circuit Breaker |
| Gross Weight (kg) | 350 | Relay |
| Net Weight (kg) | 350 | Fuse Holder |
| Package Dimensions L×W×H (mm) | 1110×1020×1550 | Vacuum Pump |

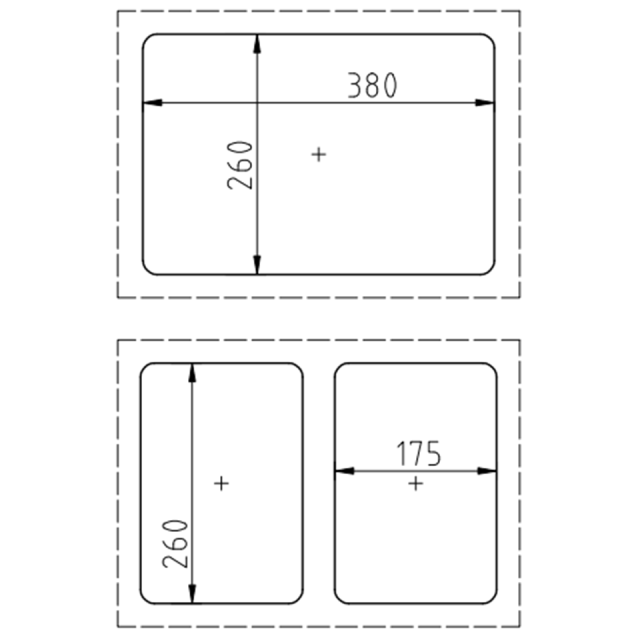

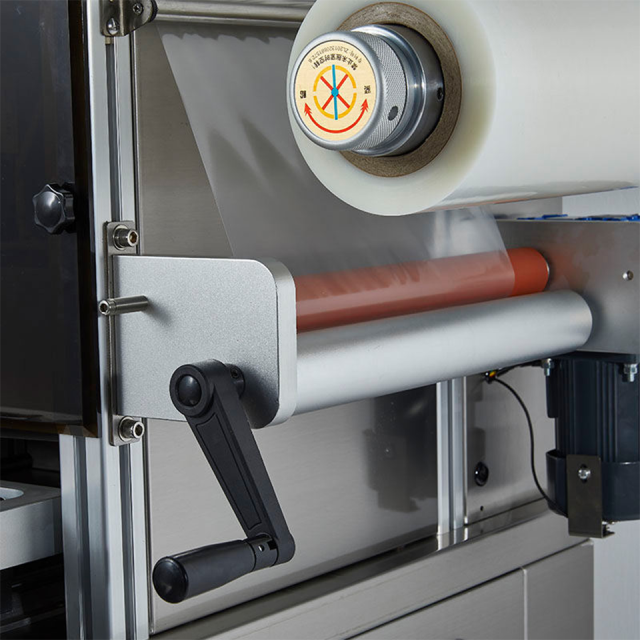

| Max Tray Size (mm) Output 1 | 380×260×40 (*1) | Film Winding System |
| Max Tray Size (mm) Output 2 | 260×175×40 (*2) |

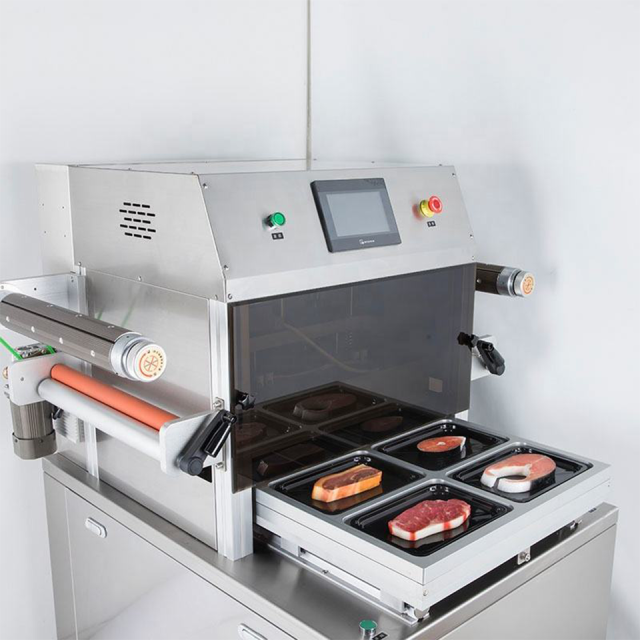

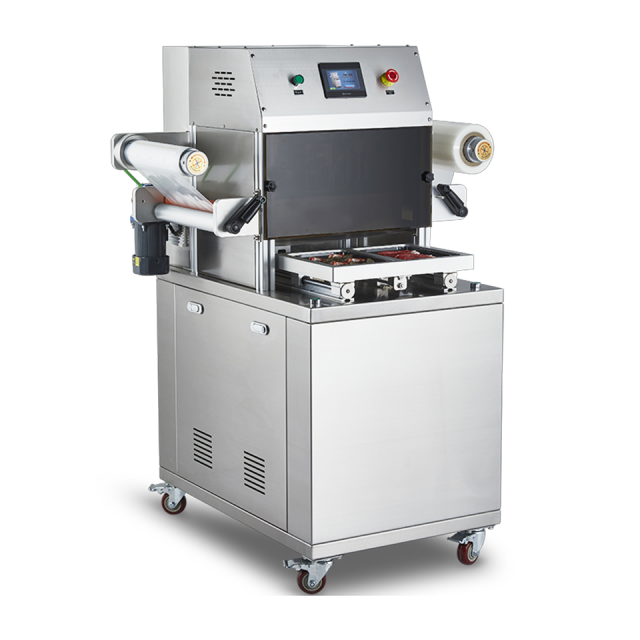

The DQ330VSL Vertical Skin Packaging Machine delivers exceptional product presentation through advanced vacuum-skin technology, creating crystal-clear packaging that molds perfectly to product contours. Engineered for premium food applications, this robust system combines a powerful 63 m³/h vacuum pump with precision thermal controls to achieve flawless, airtight seals. Built with industrial-grade materials and designed for continuous operation, it maintains consistent 2-3 cycles per minute while handling diverse product sizes up to 380×260×40mm.
Advanced Skin Packaging - Creates form-fitting transparent packaging for enhanced product visibility
High-Capacity Vacuum System - 63 m³/h pump ensures perfect film adhesion and oxygen removal
Versatile Production Capacity - Processes 180-300 packages hourly across multiple tray configurations
Professional-Grade Construction - Durable stainless steel frame with precision components
Premium Meat & Seafood - Ideal for steaks, fish fillets, and gourmet protein presentation
Specialty Foods - Perfect for artisan cheeses, baked goods, and confectionery items
Ready-to-Eat Meals - Excellent for premium meal kits and prepared food lines
Consistent vacuum performance across production cycles
Quick changeover between different product sizes
Energy-efficient operation with optimized power management
Hygienic design with easy-clean surfaces
Each machine undergoes rigorous testing and includes detailed documentation. Professional technical support ensures seamless integration and ongoing operational excellence.
