| Style |
Electric – Air Flow Replacement |
Main Configuration |
Main Configuration |
| Equipment Model |
DQ400T – E |
Dasheng Core Air Conditioning Technology |
Dasheng Self – Developed Core Technology |
| Max. Width of Wrapper (mm) |
390 |
Main Structure and Shell |
304 Stainless Steel |
| Max. Diameter of Wrapper (mm) |
220 |
Mold Part |
6061 Aluminum (Anodized) |
| Air Replacement Rate |
≥99% |
Photoelectric Sensor (Long – Range) |
Panasonic (Japan) |
| Gas Distribution Precision (%) |
Fluctuation ≤±2% |
Photoelectric Sensor (Optical Fiber) |
Chengguang Electric |
| Packaging Speed (times/min) |
5 – 60 |
Straight – Flow Power Supply |
Hexin |
| Capacity (boxes/hour) – Out 1 |
≥360 |

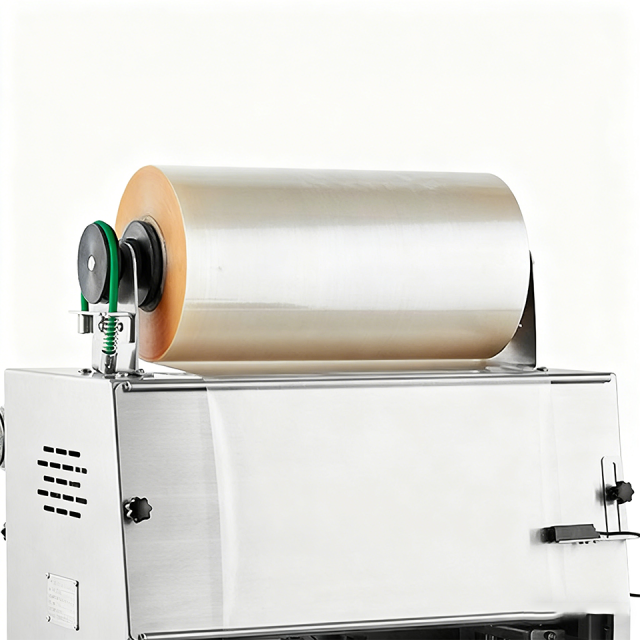

Film Collection Motor |
Kunlun Tongtai |
| Capacity (boxes/hour) – Out 2 |
≥640 |
Film Collection Motor |
Lianhong |
| Power Supply (V/Hz) |
220/50 |
Sealing Machine |
Ouyi |
| Total Power (kw) |
1.8 |
Control System |
Dasheng Smart Energy Self – Developed Control System |
| Working Air Pressure (Mpa) |
0.6 – 0.8 |
Button Switch |
Delixi |
| Equipment Weight (kg) |
90 |
Circuit Breaker |
Delixi |
| Equipment Dimensions:LWH (mm) |
835*570*800 |
Relay |
Delixi |
| Packaging Net Weight (kg) |
139 |
Fuse Holder |
Delixi |
| Installation Weight (kg) |
– |
Film Collection System |
Handwheel |
| Outer Packaging Dimensions:LWH (mm) |
950*800*910 |
Power Switch |
GeYa |
| Max. Box Size (mm) – Out 1 |
330*220*70 (*1) |
Electrical Cabinet |
Yadeke (Taiwan) |
| Max. Box Size (mm) – Out 2 |
220*150*70 (*2) |
|
|
Product Overview

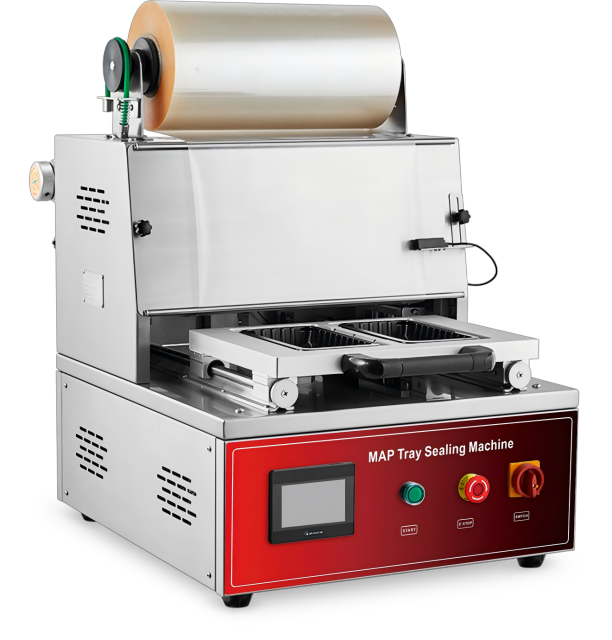

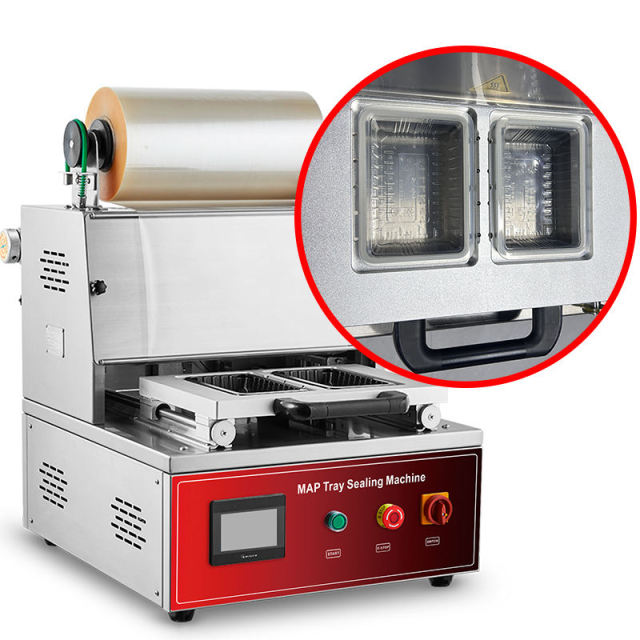

The Tabletop Modified Atmosphere Tray Sealing Packaging Machine is a high-efficiency, intelligent MAP sealing device designed for the precise and reliable packaging of fresh food products. It supports tray sizes up to 330 × 220 × 70 mm, with a sealing speed of 5–6 cycles per minute.
Featuring a 304 stainless steel body and 6061 anodized aluminum molds, the machine achieves a gas replacement rate of ≥99% ±2% accuracy, ensuring excellent preservation and consistent packaging quality. It is ideal for supermarkets, central kitchens, and food processing lines.
Key Features
•Durable Construction — A 304 stainless steel body and 6061 anodized aluminum molds provide long-lasting stability and precise sealing performance.
•Advanced MAP Gas Flushing Technology — Achieves a ≥99% gas replacement rate for extended freshness and food safety.

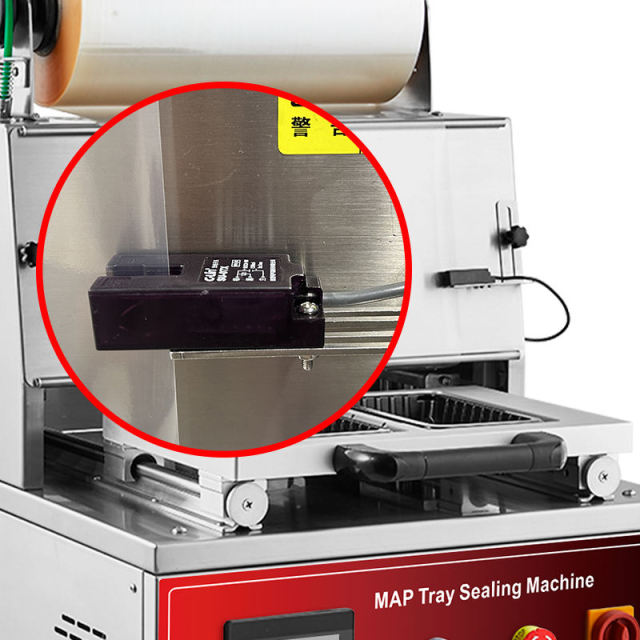

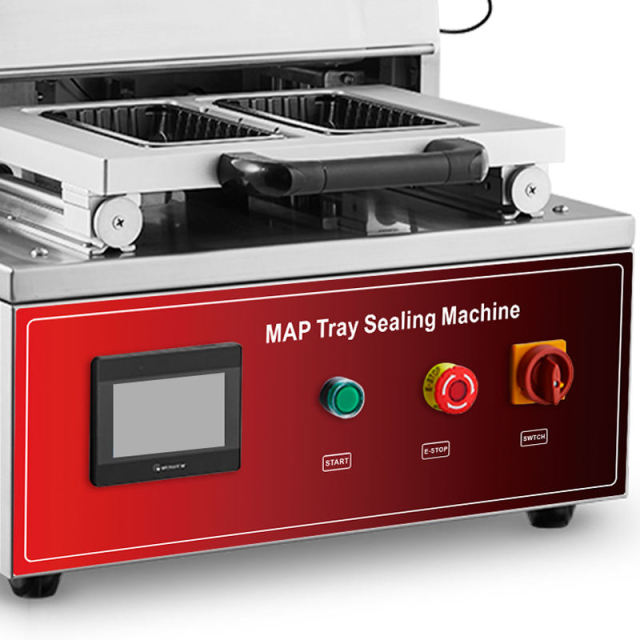

•High-Quality Sensors & Control — Equipped with Panasonic photoelectric sensors and a smart touchscreen control system for accurate tray positioning and easy operation.
•Reliable Electrical Components — Includes Delta DC power supply, Lianyi sealing motor, Delixi switches, and relays for safe and stable performance.
•Compact & Lightweight Design — Dimensions: 835 × 570 × 800 mm, weighing 90 kg, ideal for limited workspace environments.
Applications
The Tabletop MAP Tray Sealer is suitable for a wide range of packaging scenarios:
•Food Industry — Fresh produce, ready-to-eat meals, snacks, and vacuum-packed products.
•Retail & Supermarket Packaging — Pre-packed trays for display and sale.
•Catering & Central Kitchens — Efficient batch packaging for restaurants and meal prep services.
•Small Batch or Pilot Production — Ideal for R&D and laboratory packaging applications.
Advantages
High Efficiency — 5–6 sealing cycles per minute for consistent, high-quality results
Precise Gas Control — ±2% gas accuracy ensures optimal food preservation
Fully Automatic Operation — Reduces manual labor and improves productivity
Reliable & Durable — Industrial-grade materials minimize maintenance needs
Flexible & Adaptable — Supports a variety of tray sizes and film types
