| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ630AT-VS | Main Structure & Shell |
| Type | Continuous Flow Packaging Machine | Molding Parts |
| Max Film Width (mm) | 650 | Photoelectric Sensor (Length Counter) |
| Max Film Diameter (mm) | 220 | Photoelectric Sensor (Mark Film) |
| Packing Speed (times/min) | 5-6 | DC Power Supply |
| Output Capacity (boxes/hour) Output 3 | 900-1000 | Cylinder |
| Vacuum Pump Capacity (m³/h) | 200 | Solenoid Valve |
| Power Supply (V/Hz) | 380/50 | Touch Screen |
| Total Power (kW) | 7 | Film Winding Motor |
| Working Pressure (MPa) | 0.6-0.8 | Control System |
| Equipment Weight (kg) | 340 | Push Button Switch |
| Equipment Dimensions L×W×H (mm) | 1850×890×1450 | Circuit Breaker |
| Gross Weight (kg) | 452 | Relay |
| Net Weight (kg) | 452 | Fuse Holder |
| Package Dimensions L×W×H (mm) | 1880×1160×1630 | Vacuum Pump |

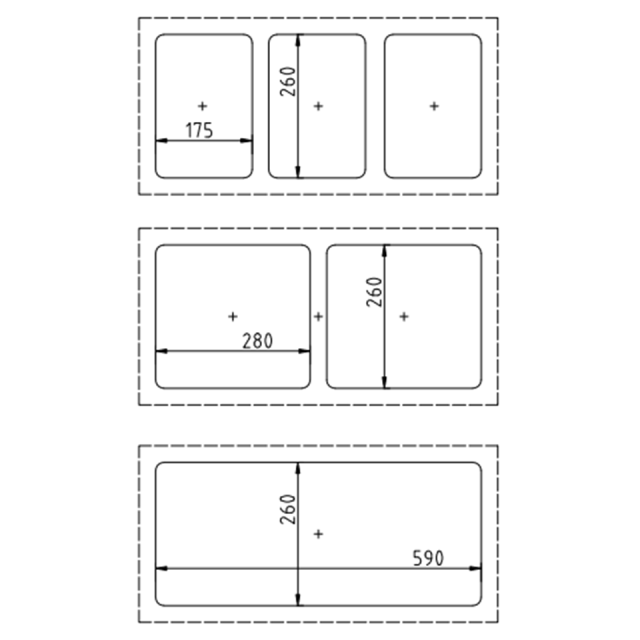

| Max Tray Size (mm) Output 3 | 260×175×40 (*3) | Film Winding System |

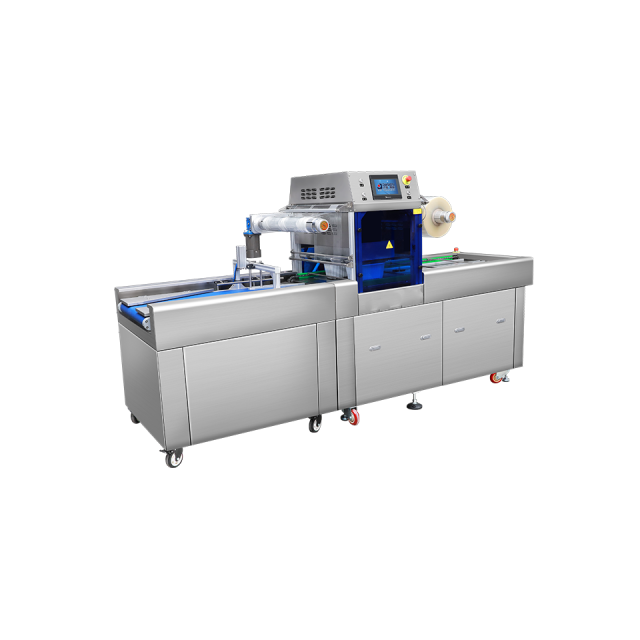

The DQ630AT-VS Continuous Flow Packaging Machine delivers industrial-scale efficiency with its extra-wide 650mm film capacity and powerful 200 m³/h vacuum system, achieving remarkable outputs of 900-1000 packages per hour. Engineered for uninterrupted production lines, this heavy-duty machine maintains consistent 5-6 cycles per minute while handling substantial tray sizes up to 260×175×40mm. The fully stainless steel construction ensures durability and hygiene compliance in demanding food processing environments.
Extra-Wide Continuous Operation - 650mm film width supports large-format packaging requirements
High-Capacity Vacuum System - 200 m³/h pump ensures efficient air removal and packaging integrity
Industrial-Scale Output - Processes 900-1000 packages hourly for maximum productivity
Heavy-Duty Construction - Full stainless steel frame built for continuous operation
Large-Scale Food Processing - Ideal for high-volume meat, poultry, and prepared foods
Industrial Meal Production - Perfect for institutional packaging and food service portions
Frozen Food Lines - Excellent for frozen vegetable, seafood, and ready meal packaging
Continuous operation capability for non-stop production
Quick adjustment for different product configurations
Energy-efficient performance with optimized power usage
Robust components ensure minimal maintenance requirements
Each unit undergoes rigorous factory testing and includes comprehensive operational documentation. Professional technical support provides complete installation guidance and ongoing maintenance services.
