| Parameter | DZ-400/2E Arc Extending Chamber | DZ-500/2E Arc Extending Chamber | DZ-600/2E Arc Extending Chamber |
|---|---|---|---|
| Basic Information | |||
| English Name | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) |
| Model | DZ-400/2E | DZ-500/2E | DZ-600/2E |
| Technical Specifications | |||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 |
| Sealing Power (W) | 500 | 750 | 1000 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 1000×425×170 | 1000×520×230 | 1000×620×230 |
| Sealing Length (mm) | 400 | 500 | 600 |
| Sealing Width (mm) | 10 | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 | 20×2 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1040×475×980 | 1040×575×980 | 1040×675×980 |
| Net Weight (kg) | 200 | 230 | 280 |
| Center Distance Between Sealing Bars (mm) | 900 | 900 | 900 |

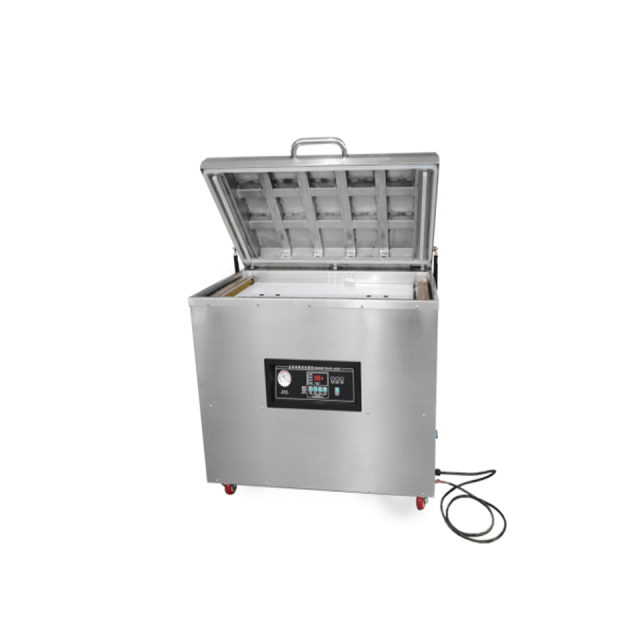

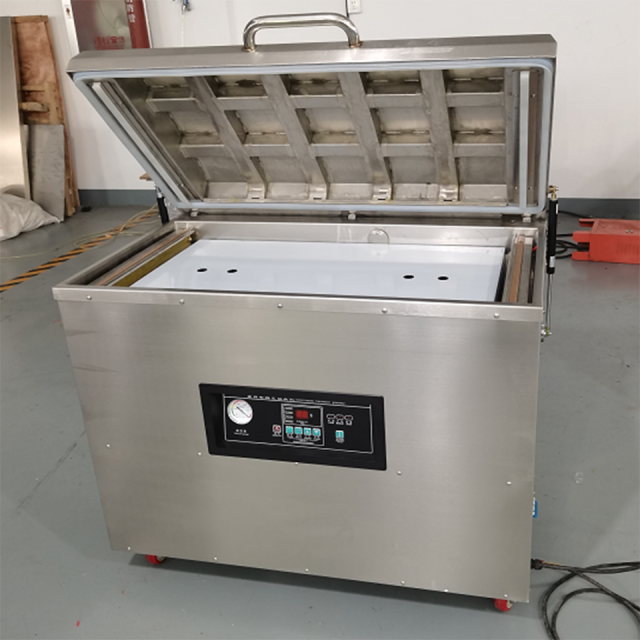

Engineered for modern food processing facilities, the Arc Extending Chamber Vacuum Packaging Machine delivers enhanced packaging efficiency through its innovative elongated chamber design. This professional-grade equipment combines powerful vacuum technology with extended sealing capabilities to handle larger or multiple products simultaneously. Available in three configurations with varying sealing lengths, the machine maintains consistent performance while optimizing production workflow in demanding food packaging environments.
Extended Chamber Design - 1040mm chamber length accommodates larger products or multiple items per cycle
Dual Vacuum System - 2000W motor power with 40m³/h total extraction capacity ensures rapid air removal
Progressive Sealing Options - Choose from 400mm, 500mm, or 600mm sealing lengths to match production requirements
High-Capacity Performance - Generous chamber dimensions (1000×425×170mm to 1000×620×230mm) support diverse product sizes
Dual Sealing Bar Configuration - Two 10mm wide sealing bars with 500-1000W power ensure reliable package integrity
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (200-280kg) withstand continuous operation
Large-format food product packaging
Batch processing of multiple items
Meat and poultry processing facilities
Seafood and fishery product packaging
Prepared meal and portion packaging
High-efficiency dual vacuum pumps (20×2 m³/h) accelerate production cycles
Precision temperature control maintains consistent sealing quality
Optimized chamber geometry maximizes usable workspace
Industrial-grade components ensure reliable 24/7 operation
Standard 220V power compatibility simplifies facility integration
For food processing operations requiring extended packaging capabilities, the Arc Extending Chamber Vacuum Packaging Machine offers enhanced capacity with professional-grade reliability. Contact us for technical specifications and model selection guidance.
