| Parameter | DZ-400/2E Deep Chamber | DZ-500/2E Deep Chamber | DZ-520 Deep Chamber | DZ-600/2E Deep Chamber |
|---|---|---|---|---|
| Basic Information | ||||
| English Name | Deep Chamber Vacuum Packaging Machine (Chamber Height: 200mm) | Deep Chamber Vacuum Packaging Machine (Chamber Height: 150mm) | Deep Chamber Vacuum Packaging Machine | Single Chamber Vacuum Packaging Machine |
| Model | DZ-400/2E | DZ-500/2E | DZ-520 | DZ-600/2E |
| Technical Specifications | ||||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 1000 | 1000 | 1000 | 1000 |
| Sealing Power (W) | 500 | 750 | 600 | 1000 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 435×300×(100-400) | 525×370×(150-400) | 630×550×120 | 630×480×(200-400) |
| Sealing Length (mm) | 400 | 500 | 520 | 600 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×1 | 20×1 | 20 | 20×1 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 540×490×950 | 650×575×980 | 710×680×930 | 760×750×980 |
| Net Weight (kg) | 75 | 100 | 62 | 125 |
| Center Distance Between Sealing Bars (mm) | 370 | 440 | 550 | 540 |

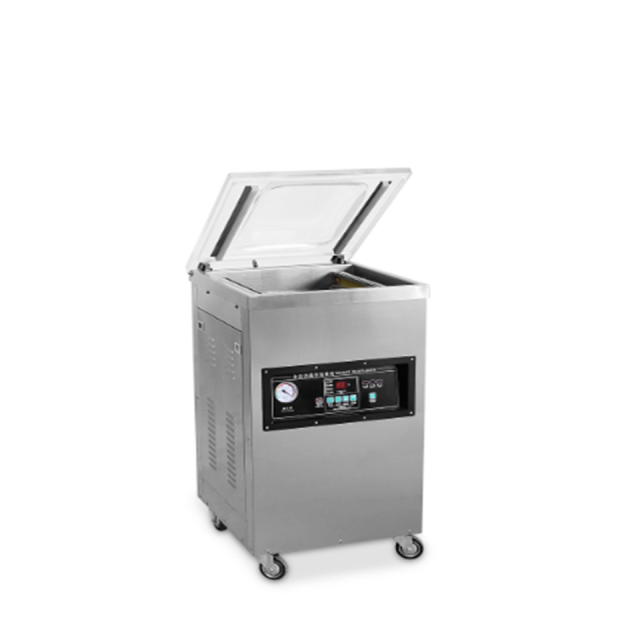

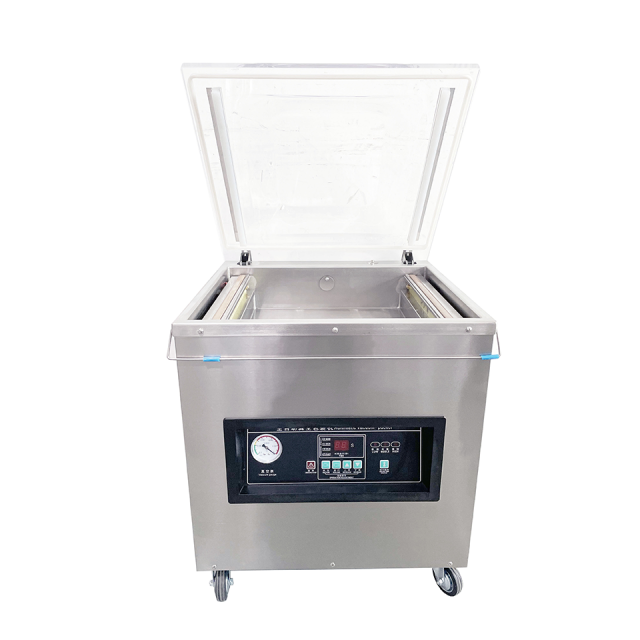

Engineered for demanding food processing environments, the Deep Chamber Vacuum Sealer delivers superior packaging performance through its enhanced chamber depth design. This professional-grade equipment combines powerful vacuum technology with deep cavity construction to accommodate taller products and optimize production efficiency. Available in multiple configurations with varying chamber dimensions, the machine maintains exceptional sealing quality while handling diverse product heights in commercial packaging operations.
Enhanced Depth Capacity - 100-400mm adjustable chamber height accommodates taller products and bulk packaging requirements
Progressive Sealing Options - Choose from 400mm, 500mm, 520mm, or 600mm sealing lengths to match specific production needs
Dual Sealing System - Two 10mm wide sealing bars with 500-1000W power ensure reliable, airtight package integrity
High-Efficiency Vacuum - 1000W motor power with 20m³/h extraction capacity delivers rapid air removal and consistent results
Optimized Chamber Design - Specially configured dimensions (435×300mm to 630×550mm) support various product configurations
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (62-125kg) withstand continuous industrial use
Tall or stacked product packaging
Bulk food and ingredient packaging
Irregularly shaped food products
Portioned meat and poultry packaging
Prepared meal and multi-layer packaging
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Adjustable chamber configurations adapt to different product heights
Industrial-grade components ensure reliable high-volume operation
Energy-efficient 1000W motor system reduces operational costs
Standard 220V power compatibility simplifies facility integration
For food processing operations requiring deep chamber packaging solutions, this vacuum sealer offers enhanced vertical capacity with professional-grade performance. Contact us for detailed specifications and application recommendations.
