| Parameter | DZ-600/2QX | DZ-600/2QX Extended Width | DZ-700/2QX |
|---|---|---|---|
| Basic Information | |||
| English Name | Double Chamber Inclined Vacuum Packaging Machine | Double Chamber Inclined Vacuum Packaging Machine | Double Chamber Inclined Vacuum Packaging Machine |
| Model | DZ-600/2QX | DZ-600/2QX | DZ-700/2QX |
| Series | 600mm Inclined | 600mm Inclined Extended Width | 700mm Inclined |
| Technical Specifications | |||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 |
| Sealing Power (W) | 1000 | 1000 | 1300 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 |
| Chamber Dimensions Depth (mm) | 202 | 180 | 190 |
| Chamber Gradient Angle | 40° | 30° | 45° |
| Chamber Working Depth (mm) | 200 | 180 | - |
| Baffle Adjustment Range (mm) | 150 | 150 | 150 |
| Sealing Bar to Chamber Bottom Distance (mm) | 330 | 355 | 300 |
| Distance Between Sealing Bars (mm) | - | - | 460 |
| Chamber Specifications | |||
| Sealing Length (mm) | 600 (M-type) | 600 (M-type) | 700 (M-type) |
| Sealing Width (mm) | 8 | 8 | 8 |
| Chamber Material | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2/63/100 | 20×2 |
| Physical Specifications | |||
| External Dimensions (L×W×H) (mm) | 1450×640×1020 | 1500×890×1110 | 1650×640×1020 |
| Net Weight (kg) | 205 | 320 | 320 |

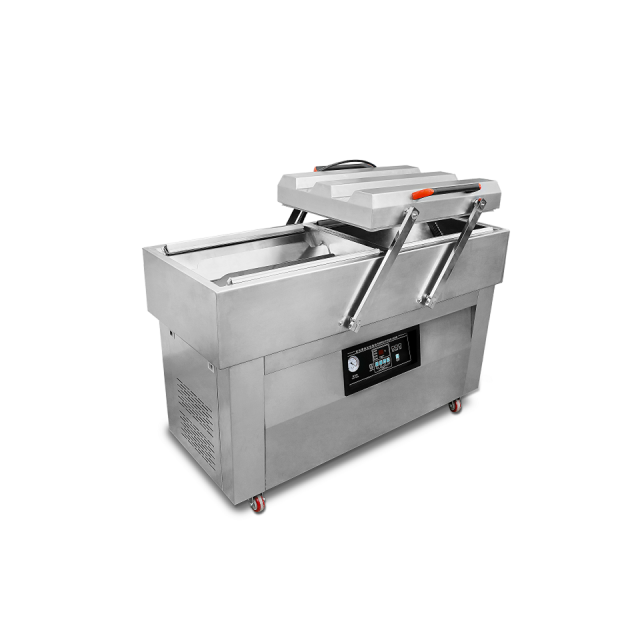

Engineered for ergonomic food packaging operations, the Double-Chamber Inclined Vacuum Packaging Machine delivers enhanced accessibility and workflow efficiency through its innovative angled chamber design. This professional-grade system combines operator-friendly ergonomics with industrial performance to optimize production of liquid-containing and delicate food products. Available in multiple configurations with varying incline angles, the machine addresses challenging packaging requirements while reducing operator fatigue in high-volume environments.
Ergonomic Incline Design - 30° to 45° chamber angles improve loading accessibility and reduce operator strain
Dual Chamber Efficiency - Continuous alternating operation maintains maximum production output
Extended Width Option - Additional chamber width accommodates larger products and batch processing
Liquid Management System - Angled chamber design effectively handles liquid-rich products and sauces
High-Performance Vacuum - 2000W motor power with 40-100m³/h extraction capacity ensures complete air removal
Dual Sealing Configuration - Two 8mm sealing bars with 1000-1300W power deliver secure package integrity
Liquid-containing food products
Marinated meat and poultry packaging
Sauce-based prepared foods
Delicate and fragile food items
High-volume production lines
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Adjustable baffle system (150mm range) accommodates various product sizes
Premium stainless steel 304 construction ensures corrosion resistance
Heavy-duty construction (205-320kg) provides operational stability
Industrial-grade components support continuous 24/7 performance
For food processing operations prioritizing ergonomic design and liquid management, the Double-Chamber Inclined Vacuum Packaging Machine offers superior accessibility with professional-grade reliability. Contact us for technical specifications and configuration options.
