| Parameter | Automatic Lid Model | Manual Lid Model |
|---|---|---|
| Basic Information | ||
| English Name | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine |
| Model | DZ-600/4SC | DZ-600/4SC |
| Chamber Design | Flatbed | Flatbed |
| Lid Type | Automatic Lid | Manual Lid |
| Technical Specifications | ||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 3000 | 3000 |
| Sealing Power (W) | 2200 | 2200 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 |
| Chamber Specifications | ||
| Chamber Dimensions (L×W×H) (mm) | 700×660×70 | 700×660×70 |
| Sealing Length (mm) | 600 | 600 |
| Sealing Width (mm) | 10 | 10 |
| Center Distance Between Sealing Bars (mm) | 620 | 620 |
| Chamber Material | Stainless Steel 304 | Stainless Steel 304 |
| Vacuum Pump Rate (m³/h) | 25×2 | 25×2 |
| Physical Specifications | ||
| External Dimensions (L×W×H) (mm) | 1490×900×900 | 1490×900×900 |
| Net Weight (kg) | 360 | 360 |

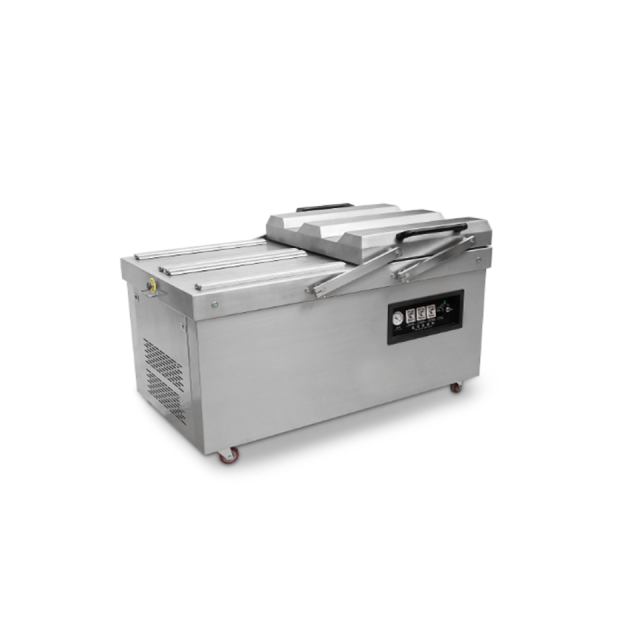

Meet the ultimate packaging partner for your food business—the Double-Chamber Flat-Plate Four-Sealing Vacuum Packaging Machine. Designed to keep pace with demanding production schedules, this robust unit combines high-speed performance with exceptional sealing reliability. Whether you choose the automatic or manual lid model, you're investing in a machine built to preserve freshness, reduce waste, and streamline your packaging line with industrial-grade precision.
Dual-Chamber Continuous Workflow
Keep your packaging process moving with two fully functional chambers that operate in tandem. Load one while the other seals—no more production pauses. Ideal for medium to high-volume output of meats, cheeses, prepared meals, and more.
Four-Bar Sealing Assurance
Each chamber features two independent sealing bars, providing four sealing lines in total. With a generous 600mm sealing length and 10mm seal width per bar, this machine delivers airtight protection for multiple bags per cycle, boosting both speed and package integrity.
Powerful Dual Vacuum Pumps
Experience fast and efficient air extraction with twin 25m³/h vacuum pumps. Reach an ultimate vacuum of 1 kPa rapidly, removing oxygen effectively to extend shelf life and lock in flavor and quality.
Automatic & Manual Lid Options
Select the lid style that fits your workflow. The automatic lid model enhances efficiency in high-speed settings, while the manual version offers dependable control for operations where flexibility and budget are key.
Durable Stainless Steel Build
Crafted from food-grade 304 stainless steel, this machine resists corrosion, withstands rigorous daily use, and meets hygienic standards for food processing environments. Its solid 360kg frame ensures vibration-free operation.
Perfect for packaging a wide range of food products:
Fresh and processed meats, poultry, and seafood
Cheese slices, blocks, and dairy products
Prepared meals, snacks, and dried foods
Fruits, vegetables, and agricultural products
Spices, coffee, and other dry goods
Rely on consistent performance with a 3000W vacuum motor and 2200W sealing power
Achieve professional results with a spacious 700×660×70mm chamber
Operate seamlessly in industrial settings with a standard AC 380V/50Hz power supply
Benefit from a compact footprint (1490×900×900mm) that saves valuable floor space
Upgrade your packaging process with a machine designed for reliability and results. Choose the Double-Chamber Flat-Plate Four-Sealing Vacuum Packaging Machine for freshness that lasts and efficiency that pays. Click to explore specifications or contact our team for personalized support.
