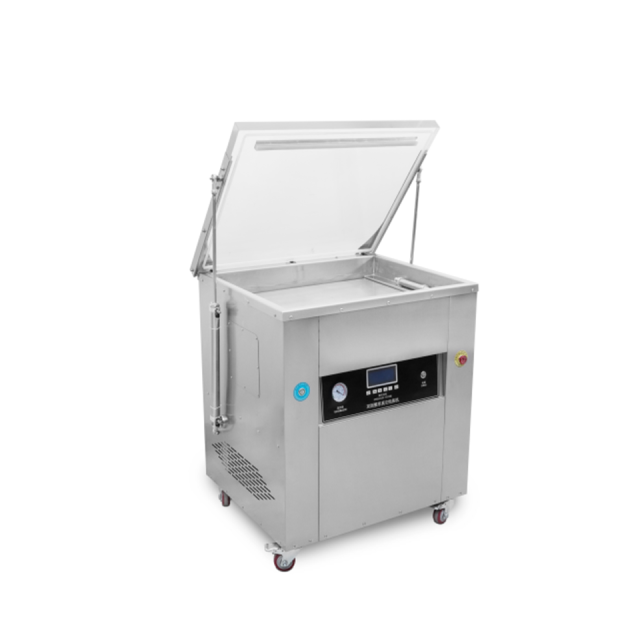

| Parameter | DZ-650 Double Face Shaping Vacuum Packaging Machine | DZ-770 Double Face Shaping Vacuum Packaging Machine |
|---|---|---|
| Basic Information | ||
| English Name | Double Face Shaping Vacuum Packaging Machine | Double Face Shaping Vacuum Packaging Machine |
| Model | DZ-650 | DZ-770 |
| Technical Specifications | ||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 1000 | 1000 |
| Sealing Power (W) | 800 | 900 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 |
| Number of Sealing Bars per Chamber | 1 | 1 |
| Chamber Dimensions (L×W×H) (mm) | 660×510×90 | 840×650×130 |
| Sealing Length (mm) | 660 | 770 |
| Sealing Width (mm) | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×1 | 20×1 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 900×700×930 | 1000×750×950 |
| Net Weight (kg) | 200 | 220 |
Engineered for premium food packaging applications, the Double-Sided Shaping Vacuum Packaging Machine delivers enhanced product presentation through advanced molding technology. This specialized equipment combines precision vacuum sealing with dual-side shaping capabilities to create uniformly packaged products with superior visual appeal. Available in two configurations with varying chamber sizes, the machine meets the demanding requirements of value-added food packaging in commercial production environments.
Dual-Side Shaping Technology - Creates uniform product shape and appearance through precision molding
Dual Configuration Options - Choose between DZ-650 (660mm seal) and DZ-770 (770mm seal) models for different production scales
Optimized Chamber Design - 660×510×90mm to 840×650×130mm chamber dimensions accommodate various product sizes
Efficient Vacuum Performance - 1000W motor power with 20m³/h extraction ensures complete air removal
Enhanced Sealing System - 800-900W sealing power with 10mm wide bars ensures secure, airtight packaging
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (200-220kg) ensure operational stability
Portioned meat and poultry products
Cheese and dairy product molding
Prepared meal and entrée packaging
Specialty food and gourmet products
Value-added agricultural products
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Dual-side molding system ensures consistent product appearance
Industrial-grade components support continuous production cycles
Standard 220V power compatibility simplifies facility integration
Heavy-duty construction withstands demanding production environments
For food processing operations requiring enhanced product presentation, the Double-Sided Shaping Vacuum Packaging Machine offers professional molding capabilities with reliable performance. Contact us for technical specifications and application guidance.
