| Parameter | Specification |
|---|---|
| Basic Information | |

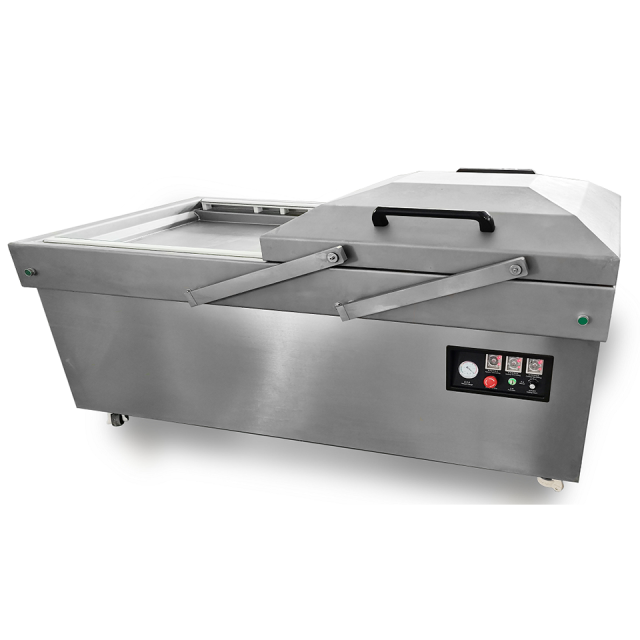

| English Name | Automatic Lid Double Chamber Channel-Style Vacuum Packaging Machine |
| Model | DZ-820/2SB |
| Power Supply (V/Hz) | AC 380/50 |
| Technical Specifications | |
| Vacuum Pump Motor Power (W) | 3000 |
| Sealing Power (W) | 1400 |
| Ultimate Vacuum Pressure (KPa) | 1 |
| Number of Sealing Bars per Chamber | 2 |
| Chamber Specifications | |
| Chamber Dimensions (L×W×H) (mm) | 820×600×300 |
| Sealing Length (mm) | 820 |
| Sealing Width (mm) | 8 |
| Center Distance Between Sealing Bars (mm) | 665 |
| Vacuum Pump Rate (m³/h) | 100 |
| Chamber Material | Stainless Steel 304 |
| Physical Specifications | |
| External Dimensions (L×W×H) (mm) | 2010×970×1030 |
| Net Weight (kg) | 295 |
Designed for food processors handling liquid-rich and marinated products, the Automatic Flip-Top Dual-Chamber Groove Vacuum Packaging Machine delivers professional-grade performance with its unique deep-groove chamber design. This industrial-grade system features 300mm deep chambers that effectively prevent liquid spillage while maintaining perfect vacuum. The automatic flip-top operation and dual-chamber configuration ensure continuous workflow, making it an ideal solution for medium to large-scale food production facilities seeking to enhance efficiency and packaging quality.
Deep Groove Chamber Design
300mm chamber depth specifically engineered for packaging liquid-rich foods, marinated products, and semi-solid items with excellent leakage prevention
Automatic Flip-Top Operation
Hands-free automatic lid system ensures consistent sealing performance and reduces operator fatigue during continuous production cycles
Dual-Chamber Alternating Workflow
Two independent chambers operate in perfect coordination, allowing simultaneous loading and packaging operations to maximize production efficiency
Professional Vacuum Performance
3000W vacuum motor with 100m³/h extraction capacity achieves 1kPa ultimate vacuum pressure for optimal food preservation and extended shelf life
Dual Sealing Bar System
Two independent 8mm sealing bars with 1400W total power deliver reliable and consistent seals for various packaging materials
Food-Grade Construction
Full 304 stainless steel construction meets food safety standards and withstands rigorous daily cleaning in production environments
Perfect for packaging challenging food products including
Marinated meats and poultry with sauces
Liquid-rich prepared meals and soups
Pickled vegetables and fermented foods
Sauces, dressings, and condiments
Hydrated tofu and bean products
Brine-packed seafood and fish
Industrial 380V/50Hz power supply ready for factory installation
820mm sealing length accommodates multiple packages per cycle
665mm optimized bar spacing for efficient packaging layout
Heavy-duty 295kg construction ensures operational stability
Compact 2010×970×1030mm footprint saves valuable floor space
Premium components guarantee reliable 24/7 performance
Upgrade your packaging capabilities with this specialized groove-chamber vacuum machine. Its unique design addresses the challenges of liquid-rich product packaging while maintaining high production efficiency. Contact us today to learn how this system can solve your specific packaging requirements and receive personalized technical support.
