| Feature |
Specification |
| Model |
DZ-820/2SB Manual Hinged Lid Double Chamber Grooved Vacuum Packaging Machine |
| English Name |
DZ-820/2SA Double Chamber Vacuum Packaging Machine |
| Power Supply (V/Hz) |
AC 380/50 |
| Vacuum Pump Motor Power (W) |
3000 |
| Sealing Power (W) |
1400 |
| Ultimate Vacuum Pressure (KPa) |
1 |
| Number of Sealing Bars per Chamber |
2 |
| Chamber Effective Dimensions (L×W×H) (mm) |
820×600×(280-500) |
| Sealing Length (mm) |
820 |
| Sealing Width (mm) |
8 |
| Vacuum Pump Rate (m³/h) |
100 |
| Chamber Material |
Stainless Steel 304 |
| External Dimensions (L×W×H) (mm) |
2010×970×1030 |
| Net Weight (kg) |
295 |
| Center Distance Between Sealing Bars (mm) |
665 |
Product Overview

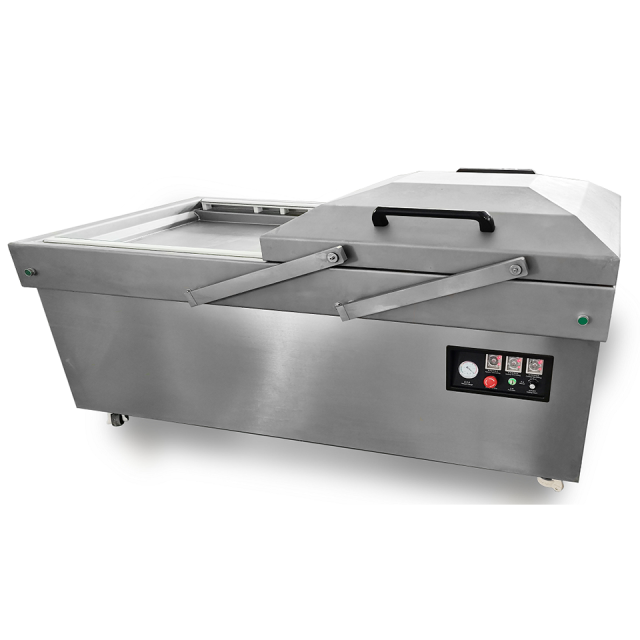

Discover reliable performance with our Manual Flip-Top Double-Chamber Grooved Vacuum Packaging Machine, designed for food processors seeking cost-effective yet professional packaging solutions. This robust system combines the efficiency of dual-chamber operation with user-friendly manual controls, making it ideal for small to medium-scale production facilities. Featuring adjustable chamber height from 280mm to 500mm to accommodate various product sizes, this machine delivers consistent vacuum sealing performance for a wide range of food products while maintaining affordable operational costs.
Key Features
Adjustable Chamber Height
Flexible chamber design with 280-500mm height adjustment accommodates everything from flat products to taller packaged items, providing exceptional versatility
Dual-Chamber Efficiency
Two independent chambers work in alternating sequence, allowing continuous packaging workflow that maximizes productivity while minimizing operator downtime
Professional Vacuum Performance
3000W vacuum motor with 100m³/h capacity achieves 1kPa ultimate vacuum pressure, ensuring optimal product preservation and extended shelf life
Manual Flip-Top Operation
User-friendly manual lid design provides precise control over packaging process while maintaining affordability and operational simplicity
Dual Sealing Bar System
Two independent 8mm sealing bars with 1400W total power deliver strong, consistent seals for various packaging materials and product types
Industrial-Grade Construction
Full 304 stainless steel construction withstands demanding food processing environments and meets strict hygiene standards
Applications
Ideal for various food packaging needs including
Meat and poultry products
Seafood and aquatic products
Cheese and dairy products
Prepared meals and convenience foods
Dried fruits and nuts
Bakery and confectionery items
Technical Excellence
Industrial 380V/50Hz power supply ready for factory installation
820mm sealing length accommodates multiple packages per cycle
665mm optimized bar spacing for efficient packaging layout
Heavy-duty 295kg construction ensures operational stability
Compact 2010×970×1030mm footprint saves production space
Food-grade materials guarantee safe food contact surfaces
Achieve professional packaging results with this reliable and affordable vacuum solution. Perfect for businesses looking to upgrade their packaging capabilities without complex automation. Contact us today to learn more about how this manual flip-top machine can enhance your production efficiency.
