| Parameter | Specification |
|---|---|
| Basic Information | |

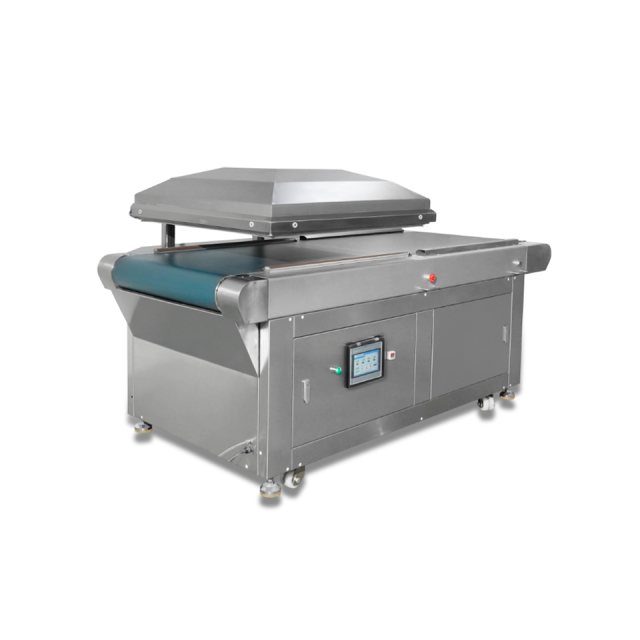

| English Name | Conveyor-Style Vacuum Packaging Machine |
| Model | DZ-850CFD |
| Technical Specifications | |
| Power Supply (V/Hz) | AC 380/50 |
| Vacuum Pump Motor Power (W) | 5000 |
| Sealing Power (W) | 2600 |
| Ultimate Vacuum Pressure (KPa) | 1 |
| Number of Sealing Bars | 2 |
| Chamber Specifications | |
| Chamber Dimensions (L×W×H) (mm) | 850×710×180 |
| Sealing Length (mm) | 850 |
| Sealing Width (mm) | 8 |
| Center Distance Between Sealing Bars (mm) | 760 |
| Vacuum Pump Rate (m³/h) | 200 |
| Chamber Material | Stainless Steel 304 |
| Physical Specifications | |
| External Dimensions (L×W×H) (mm) | 2270×1173×1235 |
| Net Weight (kg) | 780 |
| Control System | |
| PLC Control System | Xinjie XD2-24T-E |
| Control Panel | MCGS-7012EI |
Step into the future of automated food packaging with our Conveyor-Style Vacuum Packaging Machine. Designed for high-volume production lines, this industrial-grade system combines continuous conveyor operation with professional vacuum sealing technology to deliver unmatched efficiency. Featuring a robust 5000W vacuum system and intelligent PLC controls, this machine is engineered to handle everything from fresh meats to prepared meals with consistent, airtight seals. The seamless conveyor belt design ensures non-stop operation, making it the ideal choice for food processors seeking to maximize output while maintaining superior packaging quality.
Continuous Conveyor Operation
Automated belt system allows for non-stop loading and packaging, dramatically increasing production capacity while reducing labor costs
Industrial-Grade Vacuum Performance
Powered by a heavy-duty 5000W vacuum motor with 200m³/h extraction rate, achieving 1kPa ultimate vacuum pressure for optimal food preservation
Dual Sealing Bar System
Features two independent 8mm sealing bars with 2600W total power, ensuring strong and consistent seals across continuous production runs
Intelligent Control System
Equipped with Xinjie PLC and MCGS touch screen interface for precise control of packaging parameters, speed adjustment, and production monitoring
Spacious Chamber Design
Generous 850×710×180mm chamber accommodates larger products and multiple packages simultaneously, maximizing each cycle's efficiency
Heavy-Duty Construction
Built with full 304 stainless steel and weighing 780kg, this machine withstands the rigors of 24/7 operation in demanding food processing environments
Perfect for continuous packaging operations including
Fresh meat and poultry processing lines
Prepared meal and ready-to-eat food production
Frozen food and vegetable packaging operations
Seafood and fish processing facilities
Dairy products and cheese packaging lines
Snack food and dried product packaging
Industrial 380V/50Hz power supply ready for factory installation
Premium Xinjie PLC and MCGS control system for reliable operation
850mm sealing length accommodates various package sizes
Professional-grade components ensure continuous operation
Food-grade 304 stainless steel construction meets hygiene standards
Optimized 760mm bar spacing for efficient packaging layout
Upgrade your production line with the efficiency and reliability of continuous vacuum packaging. This conveyor-style machine delivers the automation and performance needed to take your food packaging operation to the next level. Contact us today to schedule a live demonstration and receive customized configuration support for your specific production needs.
