Efficient linear move irrigation systems offering 30–50% water savings, over 90% uniformity, GPS automation, and flexible power/water options. Ideal for large rectangular fields and high-value crops.

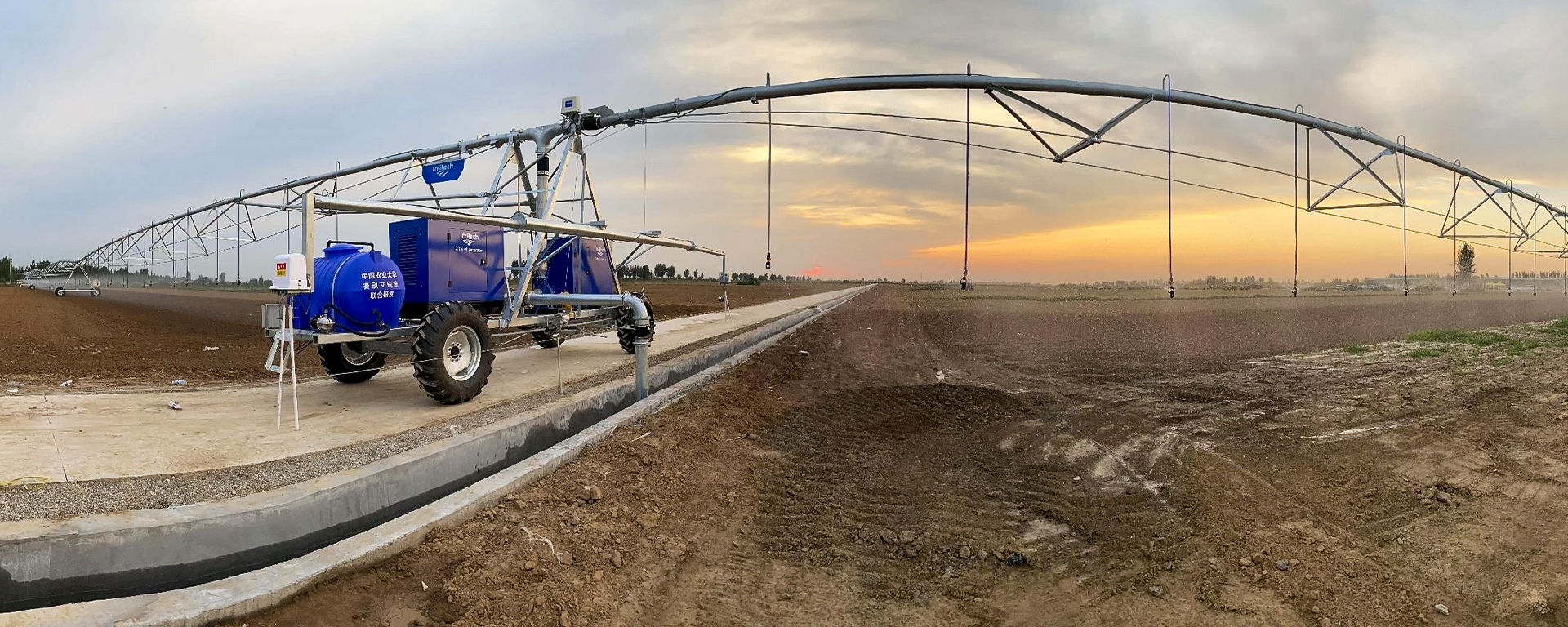

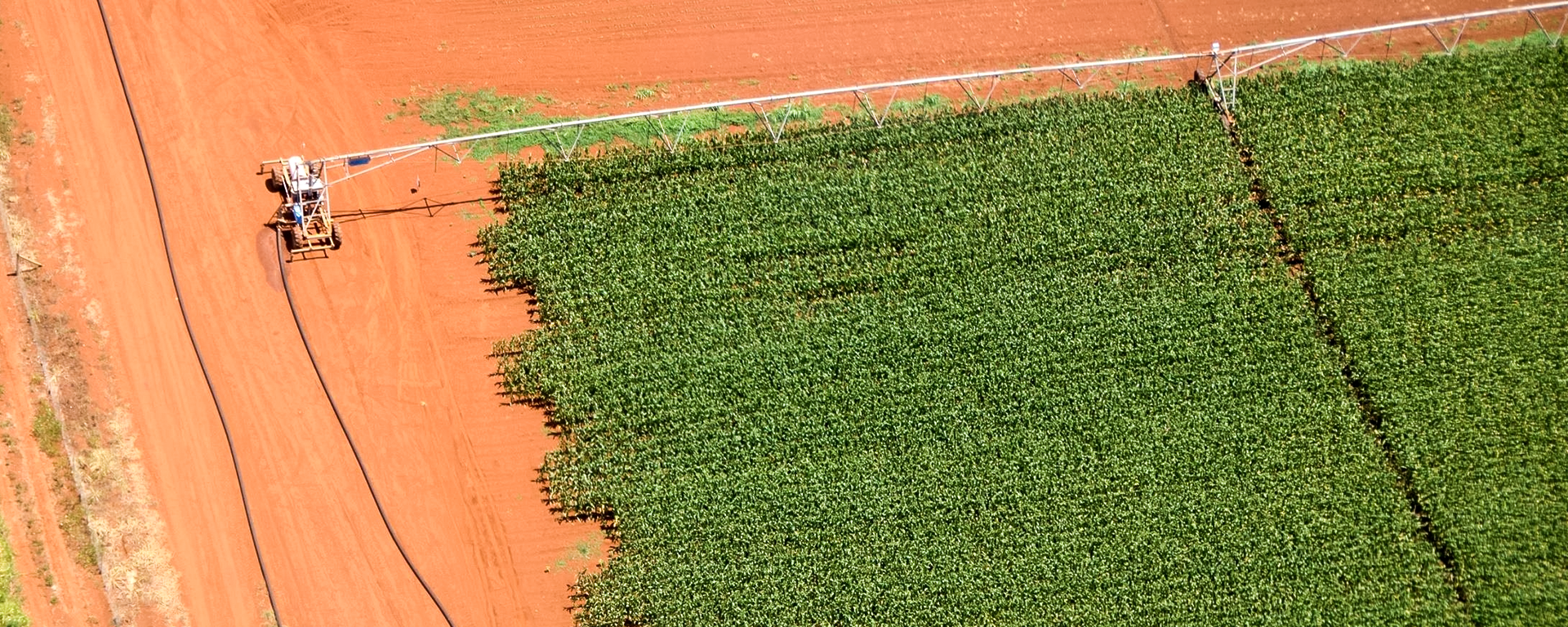

The linear move irrigation system travels along a straight path to irrigate rectangular fields. It provides an automation level comparable to a center pivot system but without irrigation dead zones, making it especially suitable for large, well-shaped rectangular farms.
Typical application: Best suited for smaller fields with up to four spans and a total machine length under 250 meters.
Water supply options: Canal-fed or hose-fed supply.
Power options: Diesel generator or towable power cable.
Alignment system: Standard mechanical alignment rods.
Guidance options: Furrow guidance, wire-guided, GPS guidance, or angle-iron guidance.
With a high degree of mechanization and automation, the system significantly increases labor productivity. It saves 30–50% more water compared to traditional irrigation, helps regulate the microclimate, achieves over 90% uniformity, and increases crop yields by 20–50%. When paired with other farm equipment, it enables standardized operations, including unified irrigation, cultivation, planting, field management, fertilization, and harvesting.
High Flexibility
Multiple power, water supply, and guidance configurations allow the machine to adapt to various field conditions.
Smart Control
Optional GPS guidance and touchscreen control deliver precise and fully automated operation.
Fertigation Capability
An integrated fertigation system applies water and nutrients simultaneously, improving efficiency.
Strong Adaptability
Various alignment and guidance systems ensure stable operation even in challenging terrain.
| Category | Configuration Options & Specifications |
|---|---|
| Basic Structure | |
| • Span Pipe Diameter | 127 mm / 168 mm |
| • Machine Length | Up to 8 spans |
| • Span Length | 37 m – 81 m (customizable) |
| • Maximum System Length | Up to 400 m |
| Water Supply System | |
| • Water Supply Method | Hose-fed supply / Canal-fed supply |
| Power System | |
| • Power Options | Towable power cable / Diesel generator |
| Sprinkler System | |
| • Sprinkler Spacing | 1.9 m / 2.9 m (optional) |
| Control System | |
| • Control Panel | Standard panel / Touchscreen panel |
| • Guidance System | Furrow guidance / Angle-iron guidance / Wire-guided / GPS guidance |
| • Alignment Method | Standard rod alignment / Enhanced alignment / Float-adjusted alignment |
| Fertigation System | |
| • Fertigation Capability | Compatible with fertigation; 1000 L – 3000 L fertilizer tank |

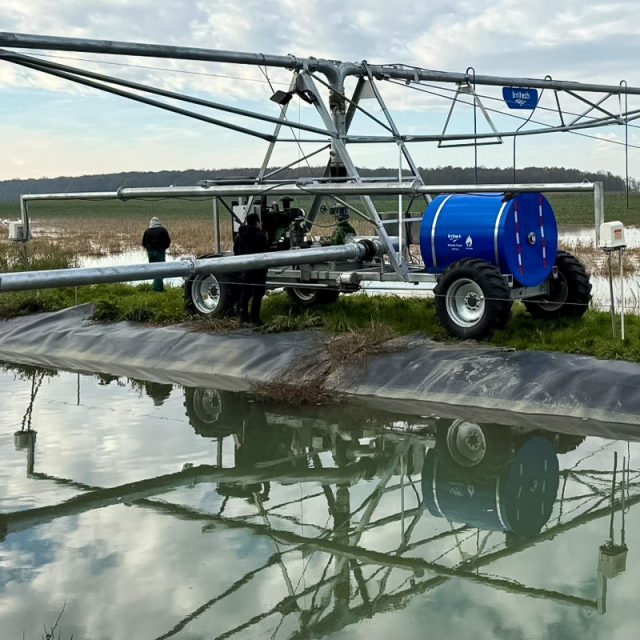

The large four-wheel linear move irrigation system is a high-capacity, self-propelled machine with an irrigation coverage rate of over 98%. It is suitable for irrigating corn, wheat, alfalfa, potatoes, grains, vegetables, sugar crops, and other high-value crops. The machine can also apply fertilizers, pesticides, and herbicides, offering practical, advanced, energy-efficient, water-saving, and highly automated performance.
With a large single-unit coverage area and high land-use efficiency, the system has a service life of over 20 years. It is ideal for large state-owned farms, agricultural enterprises, and cooperatives operating on medium to large rectangular fields. In regions such as Henan, Anhui, Hebei, and Shandong, this system represents a major development direction for water-saving irrigation in China.
The span structure is similar to that of a center pivot system, with a maximum machine length of up to 1,200 meters, depending on system type, water supply method, power supply, and guidance system.

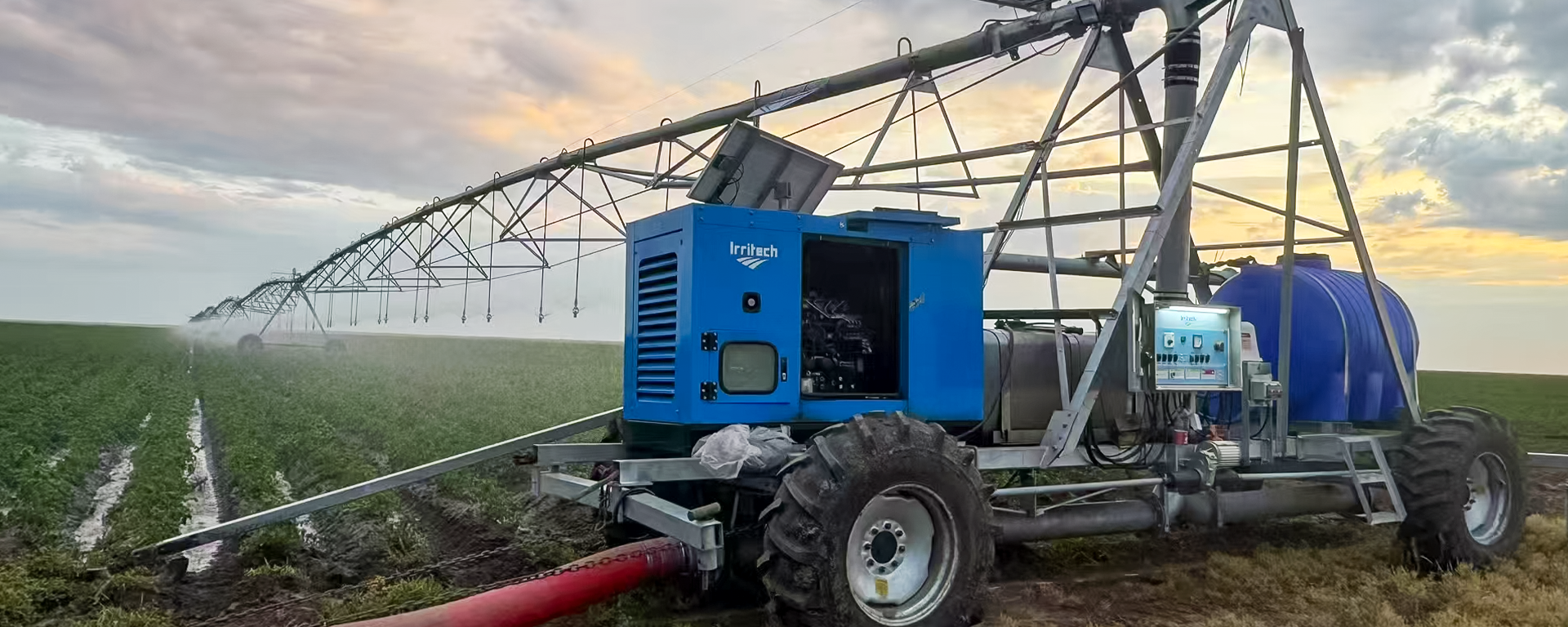

Generator set
Towable power cable

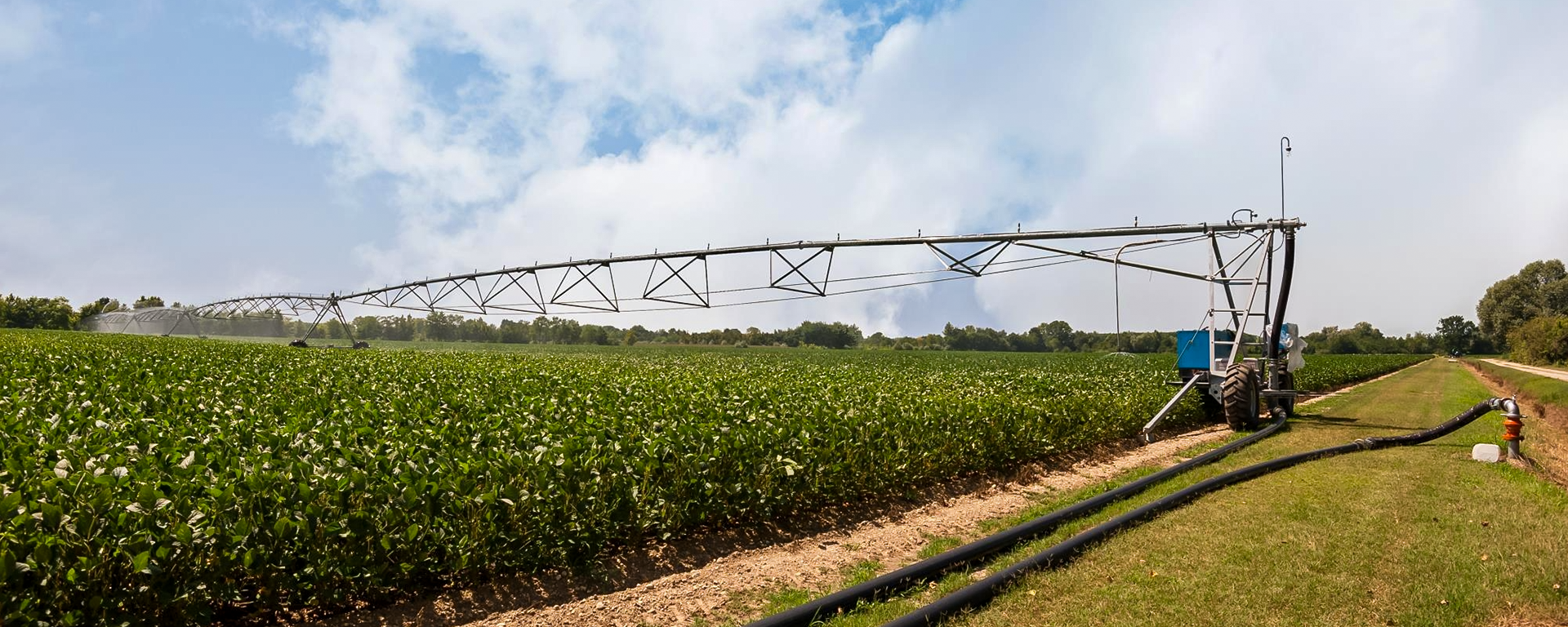

Hose-fed supply

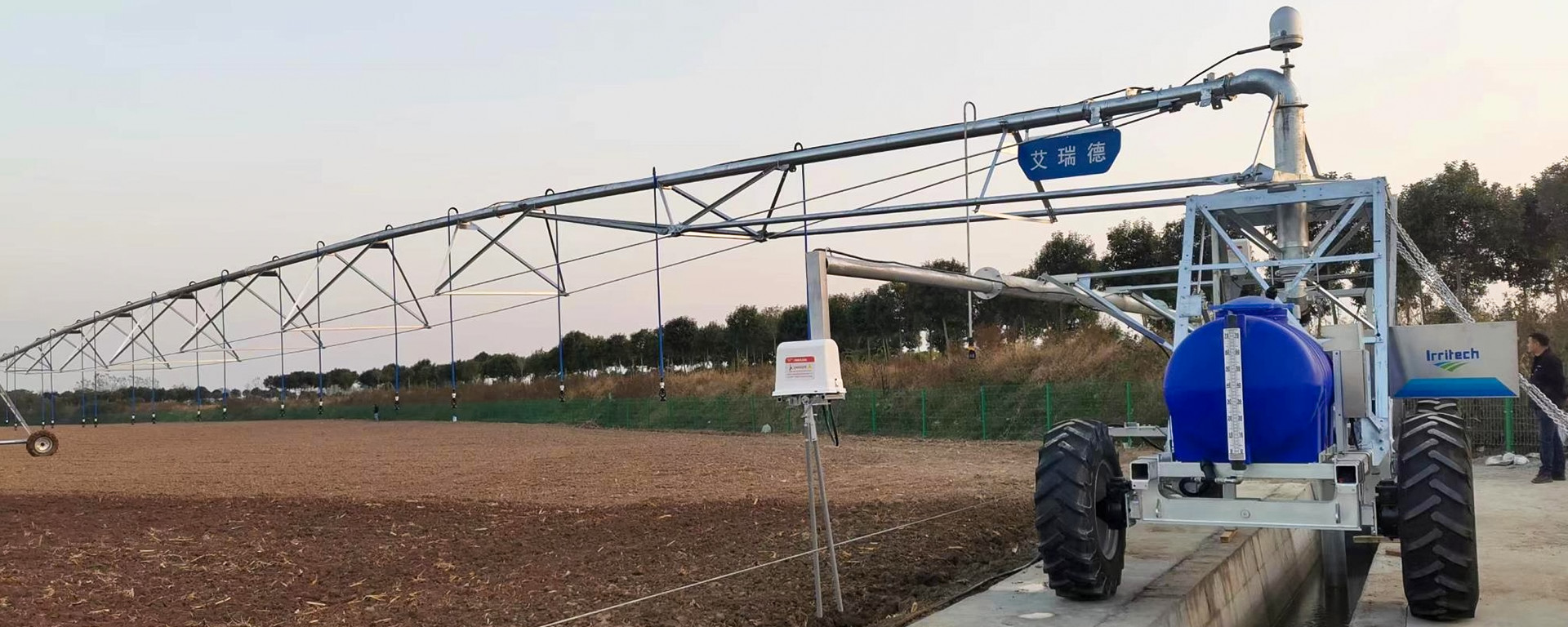

Canal-fed supply
Pressurized pipeline supply
Dual-wing linear move
Single-wing linear move
Furrow guidance
Wire-guided
GPS guidance
Angle-iron guidance
With a high degree of mechanization and automation, the system significantly increases labor efficiency. It saves 30–50% more water, helps regulate the field microclimate, delivers over 90% irrigation uniformity, and increases yields by 20–50%. When integrated with other farm equipment, it supports unified irrigation, cultivation, planting, field management, fertigation, and harvesting.
High Efficiency & Energy Saving
Irrigation uniformity exceeds 90%, with 30–50% water savings and 20–50% yield increases across a wide range of crops.
High Level of Automation
Compatible with multiple guidance systems including GPS. Optional touchscreen control enables fully automated, standardized field operations such as uniform irrigation, tillage, planting, crop management, fertigation, and harvesting.
Wide Applicability
Suitable for corn, wheat, alfalfa, potatoes, grains, vegetables, sugarcane, and other high-value crops. Capable of applying fertilizers, pesticides, and herbicides. Ideal for large farms, agricultural companies, and cooperatives operating rectangular fields.
Flexible Configuration
Available with three pipe-diameter options and operating lengths up to 1,200 meters. Multiple power and water-supply configurations adapt to different field environments. Supports both single-end supply and dual-wing configurations.
| Category | Configuration & Specifications |
|---|---|
| Basic Structure | |
| • Span Pipe Diameter | 127 mm / 168 mm / 219 mm |
| • Maximum Number of Spans | Up to 24 spans |
| • Maximum System Length | Up to 1,200 meters |
| • Machine Types | Single-Sided Linear Move / Dual-Wing Linear Move; Standard Four-Wheel Model / Heavy-Duty Four-Wheel Model |
| Power System | |
| • Power Supply Options | Towable power cable / Diesel generator set |
| Water Supply System | |
| • Water Source Options | Hose-fed supply / Canal-fed supply / River-fed supply / Enclosed pipeline supply |
| Control System | |
| • Control Panel | Standard controller / Touchscreen controller |
| • Guidance System | Furrow guidance / Angle-iron guidance / Wire-guided / GPS guidance |
| • Alignment Method | Control rod / Enhanced alignment / Floating alignment |
| Sprinkler System | |
| • Sprinkler Spacing | 1.9 m / 2.9 m (optional) |
| Auxiliary Systems | |
| • Fertigation System | 1,000 L – 3,000 L tank (supports integrated fertigation) |
| • Chemical Application | Optional |
| Performance Indicators | |
| • Irrigation Coverage | >98% |
| • Water Savings | 30% – 50% |
| • Irrigation Uniformity | >90% |
| • Yield Increase | 20% – 50% |
| • Service Life | Over 20 years |
