| Item | FR-770 | FR-900 | FRD-1000 |
|---|---|---|---|
| Product Name | Multi-Function Plastic Film Continuous Sealer | Multi-Function Plastic Film Continuous Sealer | Multi-Function Plastic Film Continuous Sealer |
| Model | FR-770 | FR-900 | FRD-1000 |
| Power Supply | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz |
| Total Power | 1350 W | 750 W | 850 W |
| Sealing Width | 12 mm | 12 mm | 12 mm |
| Printing Type | Steel Embossing | Steel Embossing | Solid Ink Wheel / Steel Embossing |
| Temperature Range | 0–300°C | 0–300°C | 0–400°C |
| Sealing Speed | 0–17 m/min | 0–17 m/min | 0–17 m/min |
| Max Single-Layer Film Thickness | ≤ 0.4 mm | ≤ 0.4 mm | ≤ 0.4 mm |
| Height from Base to Sealing Center | 35 mm | 35 mm | 35 mm |
| Conveyor Table Size | 830 × 150 mm | 830 × 150 mm | 950 × 150 mm |
| Sealing Center to Conveyor Center | 100–125 mm | 100–125 mm | 100–200 mm |
| Vertical Sealing Height Range | — | — | 120–280 mm |
| Max Load per Item | ≤ 2 kg | ≤ 1 kg | ≤ 2 kg |
| Max Conveyor Load | ≤ 8 kg | ≤ 6 kg | ≤ 8 kg |
| Overall Dimensions (L×W×H) | 840 × 380 × 300 mm | 840 × 380 × 300 mm | 980 × 380 × 300 mm |
| Net Weight | 18 kg | 16 kg (Net) / 18 kg (Gross) | 23 kg |
| Application | Food, pharmaceutical, daily goods packaging | Food, light packaging | Food, industrial & vertical sealing |

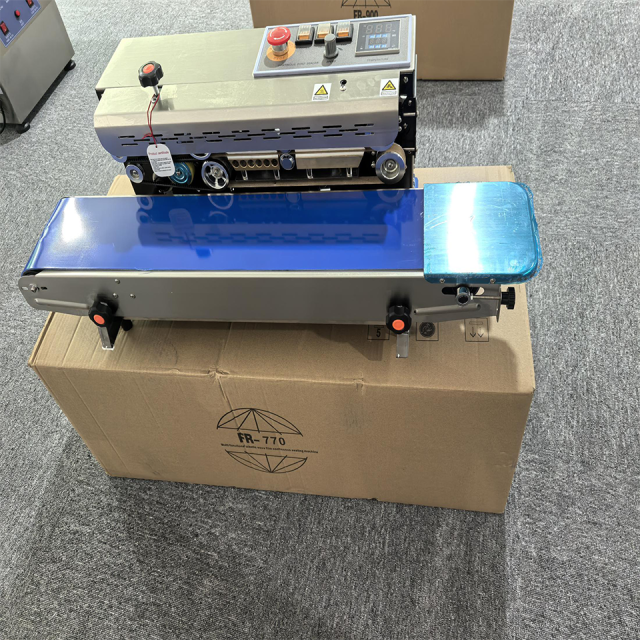

The FR-Series Multi-Function Plastic Film Continuous Sealers are designed for efficient, stable, and continuous sealing of plastic film packages in food and commercial packaging environments. With adjustable sealing speed and precise temperature control, these machines ensure consistent sealing quality for a wide range of bag types.
All models support continuous sealing speeds up to 17 m/min, allowing high-efficiency operation for medium- to high-volume packaging lines. The 12 mm sealing width provides strong and uniform seals, suitable for daily production requirements.
The FR-770 and FR-900 offer a temperature control range of 0–300°C, while the FRD-1000 extends up to 0–400°C, making them compatible with various plastic films. The precise temperature adjustment helps ensure secure sealing without damaging packaging materials.
These sealers support steel embossing date coding, with the FRD-1000 also offering solid ink wheel printing, allowing clear and durable production date or batch code marking directly during the sealing process.
Designed for food industry use, the FR-Series sealers are suitable for sealing bags containing snacks, grains, rice, powders, frozen foods, pet food, and daily consumer goods. The machines support single-layer film thickness up to 0.4 mm, meeting common food packaging standards.
Each model features an integrated conveyor table with adjustable height alignment, supporting single-item loads up to 2 kg and total conveyor loads up to 8 kg, depending on the model. This ensures smooth product transfer and stable sealing performance.
With a compact footprint and solid structure, these sealers are easy to install and operate in limited workspace environments. Their durable design supports long-term use in food processing plants, packaging workshops, and commercial production lines.
With reliable sealing quality, flexible configuration options, and food-industry-oriented design, the FR-Series Continuous Band Sealers are well suited for Amazon listings, OEM supply, and international trade, offering consistent performance and ease of operation.
