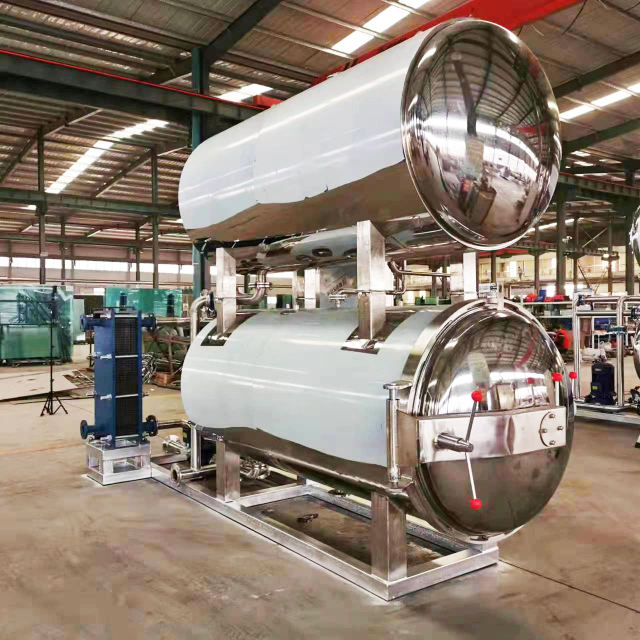

SUS304 stainless steel steam sterilization kettle for batch processing 50–900kg. Precise pressure (0.30MPa) and temperature (up to 147°C) control ensures reliable sterilization. Energy-efficient, durable, and easy to integrate with customer steam or air systems. Compact design fits small to large-scale food, beverage, pharmaceutical, and industrial production requiring hygiene and consistent results.
| Model | Tank Size Hot Water / Process | Capacity | Power | Weight | Dimensions L×W×H | Steam Requirement |
|---|---|---|---|---|---|---|
| 700×1200mm | 0.45m³ / 0.45m³ | 50–100kg | 5.7kW | 1000kg | 2500×1000×1800mm | 0.2–0.3T/0.7MPa |
| 900×1800mm | 1.1m³ / 1.1m³ | 200kg | 5.7kW | 2000kg | 4100×1200×2500mm | 0.3–0.5T/0.7MPa |
| 1000×2400mm | 2.2m³ / 2.2m³ | 400kg | 9kW | 2500kg | 4500×2000×2800mm | 0.5T/0.7MPa |
| 1200×3600mm | 4.45m³ / 4.45m³ | 900kg | 12.5kW | 3000kg | 6500×2500×3100mm | 1T/0.7MPa |
Premium SUS304 stainless steel construction ensures corrosion resistance hygiene and long term durability
Design pressure 0.35MPa working pressure 0.30MPa and max temperature 147°C for safe and efficient sterilization
High capacity batch sterilization from 50kg to 900kg to meet small medium and large production needs
Energy efficient operation reduces operational costs while maintaining consistent high performance

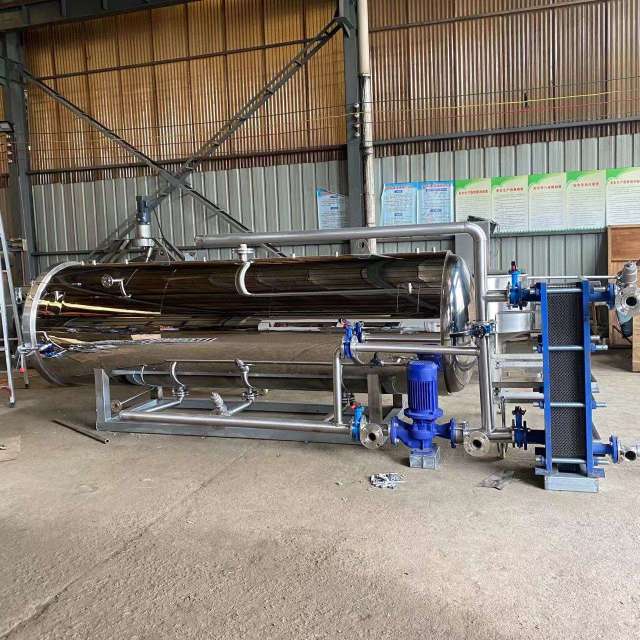

Flexible integration with customer supplied steam and compressed air systems for versatile production setups
Compact footprint with optimized tank design for easy installation and efficient workflow
Ideal for food beverage pharmaceutical and industrial sterilization applications where hygiene and reliability are critical
700×1200mm model: ideal for small batch production 50–100kg with compact size 2500×1000×1800mm and 5.7kW power
900×1800mm model: mid size 200kg capacity suitable for restaurants and medium production facilities
1000×2400mm model: 400kg capacity for larger production with enhanced power 9kW and robust structure
1200×3600mm model: 900kg high capacity solution for industrial scale sterilization applications with 12.5kW power and reinforced 5mm tank thickness
Food processing including sauces soups and dairy products
Beverage sterilization for juices tea and other drinks
Pharmaceutical and healthcare sterilization needs
Industrial processes requiring precise high temperature steam sterilization
Reliable high performance for every batch
Durable SUS304 construction for long term use
Precise pressure and temperature control for consistent results
Flexible compatibility with customer supplied steam and air systems
