| Category | Parameter | Specification |
|---|---|---|
| General Information | Model | RD-4015A (Standard Model) |
| Application | Bagged Products | |
| Main Material | SUS304 Stainless Steel | |
| Design Standard | Fully compliant with GMP food standards and FDA requirements | |
| Product Effect Suppression | Standard anti-interference shielding | |
| Detection Chip | Imported chip | |
| Mechanical Specifications | Overall Length | 1500 mm |
| Aperture Size | W430 × H180 mm | |
| Max Product Size | W400 × H150 mm | |
| Conveyor Height | 750 ± 50 mm | |
| Conveying Direction | Left to Right | |
| Conveyor Belt Width | 400 mm | |
| Conveyor Belt Material | Imported PU belt (oil-resistant, low-temperature resistant, waterproof) | |
| Detection & Control | Detection Method | Automatic |
| Detection Probe | DPS Digital Signal Source (Germany) | |
| Operation Interface | Electroplated key operation | |
| Auto-Setting Function | Automatic self-learning sensitivity setting | |
| Protection & Safety | Protection Level | IP56 Food Grade |
| Detection Sensitivity (No Load) | Ferrous (Fe) | ≥ Ø0.8 mm |
| Non-Ferrous (N-Fe) | ≥ Ø1.2 mm | |
| Stainless Steel (SUS304) | ≥ Ø1.5 mm | |
| Alarm & Rejection | Alarm Method | Audible and visual alarm |
| Rejection Method | Screen indication with automatic pusher rejection | |
| Operating Parameters | Belt Speed | 26 m/min |
| Operating Temperature | -18°C to 50°C | |
| Electrical Specifications | Power Supply | 220V / 50Hz |
| Power Consumption | 400 W |

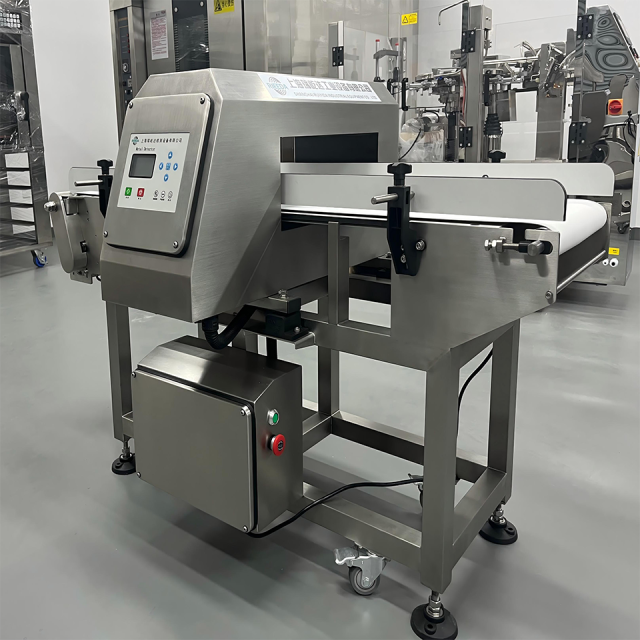

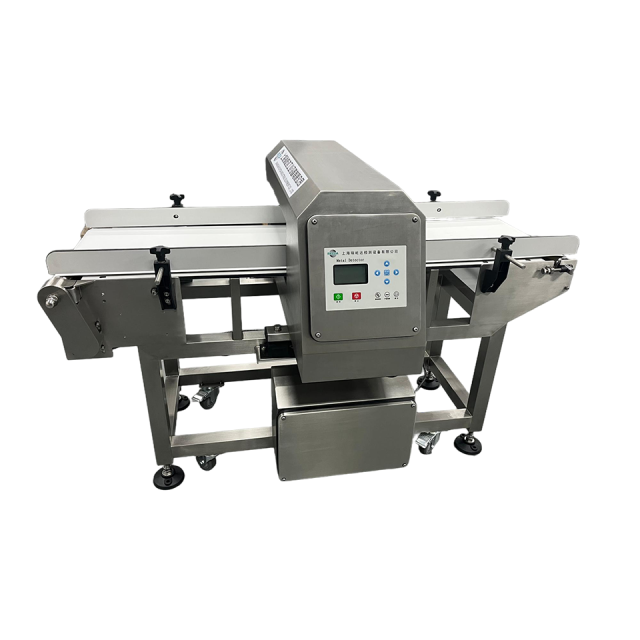

The RD-4015A Metal Detector is a high-precision inspection system engineered for bagged food products in commercial food processing and packaging lines. Designed in full compliance with GMP food safety standards and FDA requirements, this detector helps manufacturers prevent metal contamination, protect brand reputation, and meet strict quality control regulations.
Powered by an imported detection chip and a German DPS digital signal probe, the RD-4015A delivers stable and accurate detection performance even in challenging food environments with product effect interference. Standard anti-interference shielding ensures consistent sensitivity during continuous operation.
Ferrous (Fe): ≥ Ø0.8 mm
Non-Ferrous (N-Fe): ≥ Ø1.2 mm
Stainless Steel (SUS304): ≥ Ø1.5 mm
(Actual sensitivity may vary depending on product characteristics and operating conditions.)
The machine is built entirely with SUS304 stainless steel, providing excellent corrosion resistance and meeting food-grade hygiene requirements. With an IP56 protection rating, it is suitable for wash-down environments commonly found in food factories.
The 400 mm wide imported PU conveyor belt is oil-resistant, waterproof, and suitable for low-temperature environments, ensuring smooth and stable product transport.
The RD-4015A features a fully automatic detection system with a user-friendly electroplated key control panel. Its auto-learning function allows the detector to automatically set optimal sensitivity after a single product pass, reducing setup time and minimizing operator error.
When metal contamination is detected, the system triggers a visual and audible alarm, displays detection information on the screen, and activates an automatic pusher rejection system to remove contaminated products from the production line quickly and safely.
Bagged food packaging lines
Bakeries and snack production
Frozen and packaged food factories
Food processing plants requiring metal contamination control
The RD-4015A Food Industry Metal Detector combines precise detection, hygienic design, and intelligent automation, making it a dependable choice for food manufacturers seeking Amazon-level product quality and international food safety compliance.
