| Parameter | DZ-400/2SA | DZ-500/2SA | DZ-600/2SA | DZ-600/2SA5 | DZ-700/2SA | DZ-800/2SB | DZ-800/2SA (Manual) | DZ-800/2SA (Automatic) |
|---|---|---|---|---|---|---|---|---|
| Basic Information | ||||||||
| English Name | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine |
| Model | DZ-400/2SA | DZ-500/2SA | DZ-600/2SA | DZ-600/2SA5 | DZ-700/2SA | DZ-800/2SB | DZ-800/2SA | DZ-800/2SA |
| Operation Type | Standard | Standard | Standard | Standard | Standard | Standard | Manual | Automatic |
| Technical Specifications | ||||||||
| Power Supply (V/Hz) | AC 220/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 1000 | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 | 3000 |
| Sealing Power (W) | 500 | 800 | 1000 | 1500 | 1300 | 1600 | 1600 | 1600 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 460×460×100 | 550×520×100 | 650×520×100 | 650×530×110 | 750×620×100 | 800×390×70 | 800×600×80 | 800×600×80 |
| Chamber Effective Dimensions (L×W×H) (mm) | - | - | - | - | - | 800×390×70 | 800×600×80 | 800×600×80 |
| Sealing Length (mm) | 400 | 500 | 600 | 600 | 700 | 800 | 800 | 800 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 | 10 | 8 | 8 | 8 |
| Vacuum Pump Rate (m³/h) | 20 | 20×2 | 20×2 | 20×2 | 100 | 100 | 100 | 100 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| External Dimensions (L×W×H) (mm) | 1050×500×920 | 1220×570×920 | 1400×580×920 | 1440×580×950 | 1600×810×990 | 1930×780×950 | 1930×990×950 | 1930×990×950 |
| Net Weight (kg) | 120 | 170 | 188 | 186 | 218 | - | - | - |
| Center Distance Between Sealing Bars (mm) | 365 | 440 | 440 | 440 | 545 | 440 | 650 | 650 |
| Net Distance Between Sealing Bars (mm) | - | - | - | - | - | 390 | 600 | 600 |

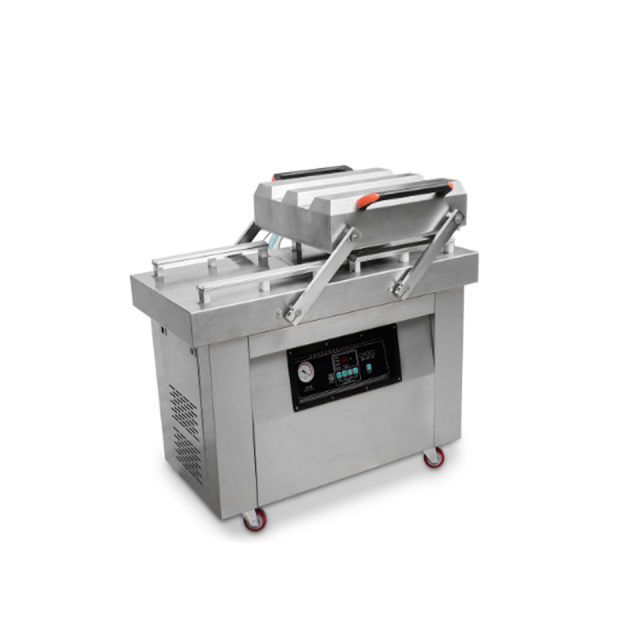

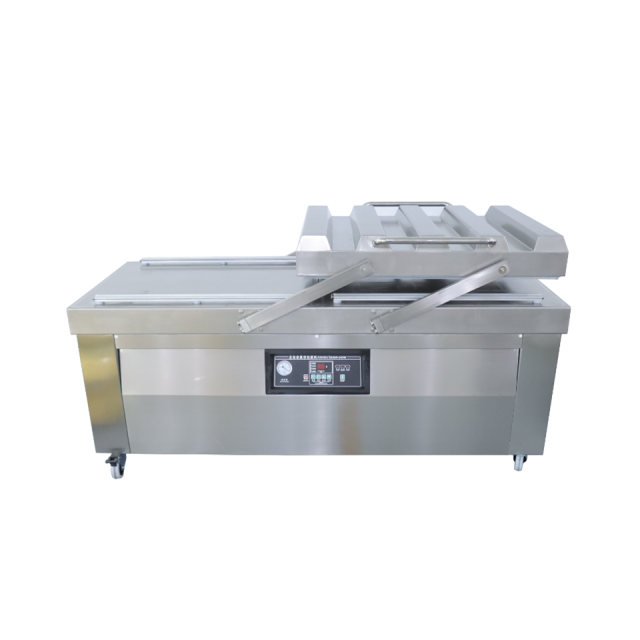

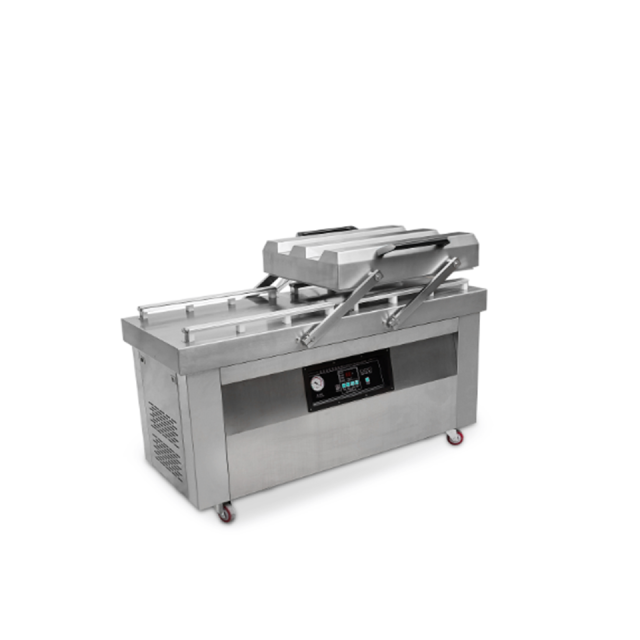

Engineered for high-volume food processing operations, the Double-Chamber Flat-Plate Vacuum Packaging Machine delivers exceptional production efficiency through continuous alternating chamber operation. This industrial-grade system combines robust vacuum technology with optimized workflow design to maximize output while maintaining superior packaging quality. Available in multiple configurations with varying chamber sizes and automation levels, the machine addresses demanding production requirements in commercial food packaging environments.
Continuous Operation Design - Dual-chamber alternating system enables non-stop production with optimized workflow efficiency
Comprehensive Model Range - Eight available configurations with sealing lengths from 400mm to 800mm accommodate diverse production scales
High-Capacity Vacuum Performance - 1000-3000W motor power with 20-100m³/h extraction capacity ensures rapid, consistent air removal
Enhanced Sealing Systems - 500-1600W sealing power with dual 8-10mm bars per chamber ensures reliable package integrity
Flexible Operation Options - Choose between manual and automatic models to match production requirements and budget
Premium Material Construction - Stainless steel 201/304 chambers provide superior corrosion resistance and durability
High-volume meat and poultry processing
Large-scale prepared food production
Commercial seafood packaging operations
Industrial food manufacturing facilities
Bulk ingredient and commodity packaging
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Heavy-duty construction (120-218kg) ensures stability during continuous operation
Advanced chamber design (460×460×100mm to 800×600×80mm) supports various product types
Industrial-grade components guarantee reliable 24/7 performance
Flexible power options (220V/380V) accommodate different facility requirements
For food processing operations requiring continuous high-volume packaging solutions, the Double-Chamber Flat-Plate Vacuum Packaging Machine offers unmatched production efficiency with industrial-grade reliability. Contact us for technical specifications and configuration recommendations.
