| Item | Specification |
|---|---|
| Model | 5530-15 |
| Product Type | Heat Shrink Machine |
| Power Supply | 380V / 50Hz |
| Power Consumption | 15 kW (Large Type) |
| Tunnel Inner Size (L×W×H) | 1500 × 550 × 300 mm |
| Overall Dimensions (L×W×H) | 1920 × 810 × 1399 mm |
| Conveyor Speed | 0–15 m/min |
| Max Conveyor Load | 15 kg |
| Temperature Range | 100°C – 300°C |
| Shrink Film Type | PVC, POF, PE |
| Shrink Ratio | 30% – 70% |
| Product Size Limitation | Max height/width ≤ 80% of tunnel opening |
| Control Method | Mechanical temperature & speed control |
| Machine Material | Q235 carbon steel + hardened aluminum |
| Net Weight | 170 / 240 kg |
| Application | Food, beverage, retail & industrial packaging |

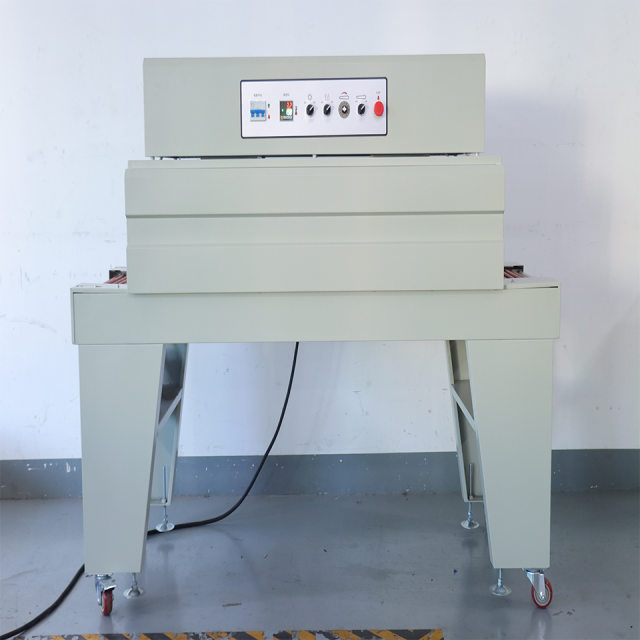

The 5530-15 Heat Shrink Machine is designed for efficient and uniform shrink packaging in food and commercial production environments. With a larger tunnel size and stable heating performance, it is ideal for packaging bigger or bundled products while maintaining consistent shrink quality.
Featuring a spacious tunnel inner size of 1500 × 550 × 300 mm, this model accommodates larger food packages, multipacks, and retail bundles. For optimal operation, product height and width should not exceed 80% of the tunnel opening, ensuring smooth film passage and preventing damage.
The adjustable temperature range of 100°C to 300°C allows compatibility with PVC, POF, and PE shrink films. Users can select cost-effective or environmentally friendly films based on packaging requirements, making the machine suitable for a wide range of food and retail applications.
The integrated conveyor supports adjustable speeds from 0 to 15 m/min and a maximum load capacity of 15 kg. This ensures smooth and continuous product movement through the shrink tunnel, delivering even heat distribution and uniform shrink results.
Powered by 380V / 50Hz with a 15 kW heating system, the 5530-15 provides reliable performance for continuous operation. The mechanical knob control allows precise adjustment of temperature and conveyor speed, offering simple operation and dependable control in daily production.
Constructed from Q235 carbon steel and hardened aluminum, the machine offers excellent heat resistance and structural durability. Its robust design supports long-term use in demanding packaging environments.
This heat shrink machine is widely used for food, beverage, daily goods, and retail packaging, including boxed products, bottled items, and bundled packages. It is suitable for food processing plants, packaging workshops, and commercial production lines.
With its large tunnel size, multi-film compatibility, and industrial-grade construction, the 5530-15 Heat Shrink Machine is well suited for Amazon listings, OEM supply, and international trade, delivering reliable packaging efficiency and consistent shrink quality.
