| Parameter | LT320 Model | LT420 Model | LT520 Model |
|---|---|---|---|
| Model | LT320 | LT420 | LT520 |
| Top Film Width | 296mm | 396mm | 496mm |
| Bottom Film Width | 322mm | 422mm | 522mm |
| Working Chamber Dimensions | 200-400mm | 200-400mm | 200-500mm |
| Vacuum Level | 200Pa | 200Pa | 200Pa |
| Air Expansion Shaft | Automatic | Automatic | Automatic |
| Compressed Air | 0.6MPa | >0.6MPa | >0.6MPa |
| Gas Filling Pressure | >0.2MPa | >0.2MPa | >0.2MPa |
| Cycle Time | CT=10-15s | CT=10-15s | CT=10-15s |
| Cooling Water Pressure | >0.15MPa | >0.15MPa | >0.15MPa |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Total Power | 10-20KW | 10-20KW | 10-20KW |
| External Dimensions (Max) | 4500×1050×2000mm | 7000×1050×2000mm | 7800×1050×2000mm |
| Total Weight | 1500KG | 2200KG | 2200KG |

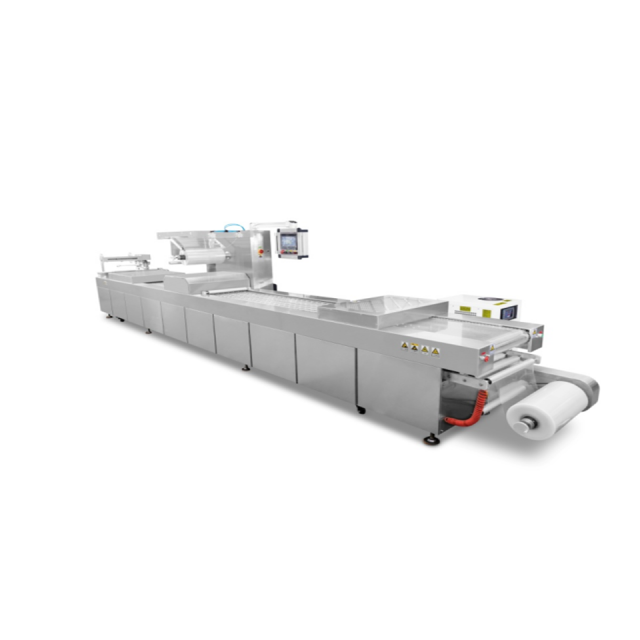

Step into the future of automated food packaging with our Automatic Continuous Stretch Vacuum Packaging Machine series. Designed for high-volume production environments, these advanced systems combine continuous roll-fed operation with precision vacuum technology to deliver unmatched efficiency. Available in three models with working widths from 296mm to 496mm, each machine is engineered to handle everything from fresh meats to prepared meals with consistent, professional results. The fully automated workflow and rapid 10-15 second cycle times make this series the ideal choice for food processors seeking to maximize output while maintaining superior packaging quality.
Continuous Roll-Fed Automation
Fully automated film feeding system with automatic air expansion shafts enables non-stop packaging operation, dramatically increasing production capacity
High-Speed Cycling Performance
Consistent 10-15 second cycle times across all models ensure maximum throughput for high-volume production requirements
Precision Vacuum Control
Advanced vacuum technology maintains 200Pa vacuum level for optimal product preservation and extended shelf life
Flexible Working Range
Adjustable working chamber from 200-500mm accommodates various product heights, providing exceptional versatility for different packaging needs
Professional Gas Flushing System
Integrated gas filling capability with >0.2MPa pressure ensures perfect modified atmosphere packaging for sensitive products
Industrial-Grade Construction
Heavy-duty 1500-2200kg frames withstand continuous 24/7 operation in demanding food processing environments
Perfect for continuous packaging operations including
Fresh meat and poultry processing lines
Cheese and dairy product packaging
Prepared meals and ready-to-eat food production
Seafood and fish packaging operations
Frozen food and vegetable packaging
Medical and pharmaceutical products
Industrial 380V/50Hz power supply with 10-20KW total power
Automatic compressed air system (0.6MPa) for reliable operation
Efficient water cooling system (>0.15MPa) ensures consistent sealing
Compact footprint designs maximize production space utilization
Food-grade materials and construction meet hygiene standards
Professional-grade components guarantee reliable performance
Transform your packaging line with the efficiency and reliability of continuous stretch vacuum packaging. Our LT series offers the perfect solution for food processors seeking to optimize their packaging operations with advanced automation. Contact us today to schedule a demonstration and receive expert guidance on selecting the ideal model for your production requirements.
