| Specification | Details |
|---|---|
| Model | 6-Layer 6-Tray Touchscreen Universal Steam Oven AWE-0623B-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. (Sino-Joint Venture) |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Menu Capacity | 300 Programs |
| Menu Programming Steps | Up to 15 steps per program |
| Cleaning Methods | 6 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Standard Fan with single speed setting |
| Steam (Humidity) Control | 10-100% Adjustable |
| Capacity | 6 x 2/3 GN |
| Daily Meal Capacity | 35-100 portions |
| Heating Power | 4.8 kW |
| Total Power Consumption | 4.85 kW |
| Total Current | 21A |
| Circuit Breaker Requirement | 25A |
| Power Supply | N-220V AC/50Hz/1PH |
| External Dimensions (mm) | 770 × 635 × 615 |
| Cavity Entrance Size (mm) | 395 × 350 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 75 kg |
| Gross Weight | 90 kg |
| Package Dimensions (mm) | 840 × 700 × 800 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |

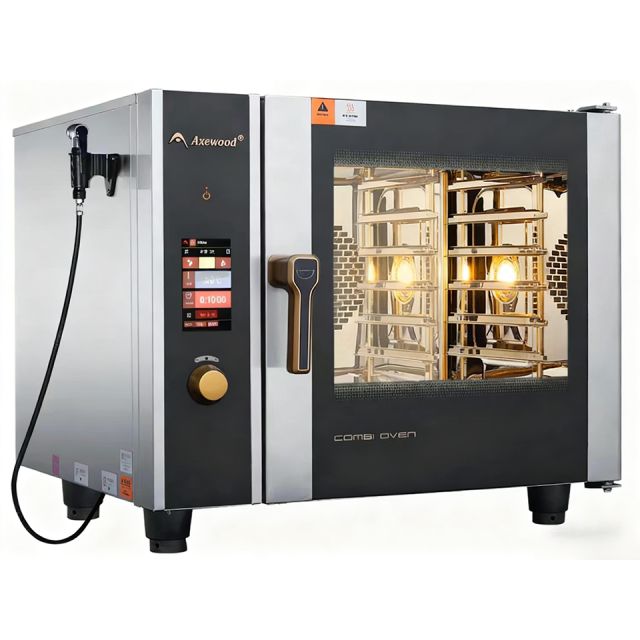

Product Overview
The Axewood Mini 6-Tray Combi Oven delivers professional-grade versatility in a compact footprint, combining steam and convection cooking for precision results. Engineered with electric heating and 10-100% adjustable steam control, this intelligent oven maintains ±1°C temperature accuracy across a 30-290°C range. The user-friendly interface features 300 programmable recipes with 15-step sequencing, while the integrated 4-point meat probe ensures perfect doneness control.
Ideal for space-conscious kitchens, this unit accommodates 6 GN pans with a daily output of 35-100 meals. The energy-efficient 4.8kW system operates on standard 220V power, while six automated cleaning programs simplify maintenance. Perfect for bakeries, cafes, and small restaurants seeking advanced cooking technology in a practical size.
Precision Cooking - ±1°C temperature accuracy with adjustable steam control
Smart Programming - 300 customizable recipes with multi-step sequencing
Professional Capacity - 6 GN pan capacity for 35-100 daily meals
Advanced Monitoring - 4-point meat probe for perfect results
Artisan Bakeries - Perfect for crusty breads and delicate pastries
Cafe Operations - Ideal for baked goods and light meals
Restaurant Kitchens - Versatile protein and vegetable preparation
Backed by 2-year warranty with complete documentation and technical support.
