| Specification | Details |
|---|---|
| Model | MZQT60/07X3 |
| Gas Type | Natural Gas (LNG) |
| Rated Gas Pressure (Pa) | 2000 |
| Single Module Effective Volume (L) | ≤29 |
| Steam Generation Time (s) | 120-150 |
| Ignition Method | Smart Pulse Ignition |
| Applicable Water Pressure (MPa) | 0.1~0.4 |
| Rated Voltage | AC220/50Hz |
| Steam Outlet Specification | DN40 Flange |
| Water Inlet Specification | DN15 External Thread |
| Gas Inlet Specification | DN40 External Thread |
| Drain Outlet Specification | DN25 External Thread ×3 |
| Exhaust Pipe Diameter (mm) | φ159 |
| Rated Power (W) | 2010 |
| Water Tank Pressure Rating (MPa) | 0~0.7 |
| Rated Heat Load (kW) | 180 |
| Evaporation Capacity (kg/h) | 250 |
| Natural Gas Consumption (m³/h) | 18 |
| Dimensions (L×W×H, mm) | 1130×990×1740 |
| Packaging Dimensions | 1200×1100×1900 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 387 |
| Gross Weight (kg) | 431 |

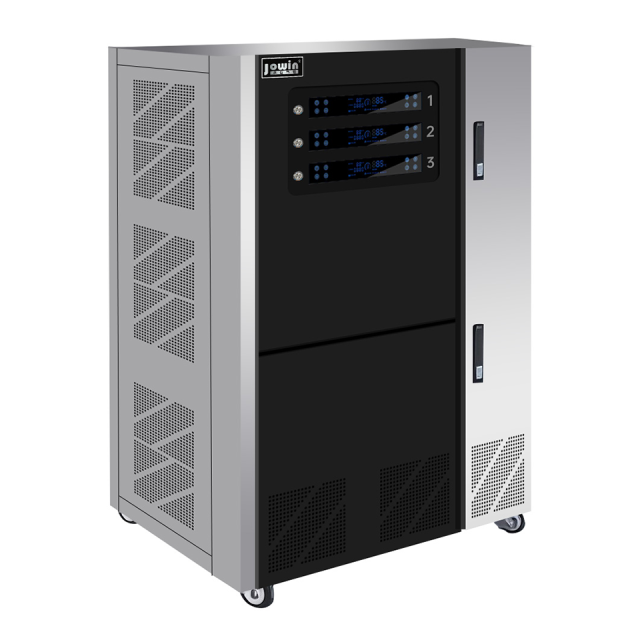

Meet the MZQT60/07X3 Modular Commercial Gas Steam Generator – the ultimate steam solution for industrial-scale food production. With an impressive 180kW heating capacity and 250kg/h steam output, this triple-module system is engineered to meet the highest demands of food processing plants and large-scale bakeries. Featuring rapid steam generation in just 2-2.5 minutes and professional-grade flange connections, it delivers unmatched reliability for continuous operation in the most challenging production environments.
Industrial-Grade Steam Output - 250kg/hour evaporation capacity supports high-volume production requirements
Triple-Module Power Design - 180kW rated heat load ensures consistent performance for 24/7 operations
Rapid Steam Production - Ready-to-use steam within 120-150 seconds maximizes operational efficiency
Professional Connection System - DN40 flange connections provide superior flow capacity and reliability
Heavy-Duty Construction - Robust components withstand continuous industrial operation
Optimized Space Design - Efficient 1130×990×1740mm layout maximizes facility space utilization
Large-scale industrial baking and proofing operations
Food processing plant sterilization and pasteurization
High-volume cooking and steaming production lines
Beverage and dairy manufacturing facilities
Central kitchen operations serving multiple locations
Industry-leading 250kg/h steam capacity for maximum productivity
Energy-efficient natural gas consumption at 18m³/h
Professional DN40/DN15 connections for industrial installation
Compliant with food safety and quality standards
Optimized 0.1-0.4MPa water pressure range for stable operation
For industrial food processors requiring maximum steam capacity and absolute reliability, the MZQT60/07X3 delivers exceptional performance for the most demanding production environments. Contact us for enterprise solutions and customized technical support.
