| Specification | Details |
|---|---|
| Model | MZQT60/07X6 |
| Gas Type | Natural Gas (LNG) |
| Rated Gas Pressure (Pa) | 2000 |
| Single Module Effective Volume (L) | ≤29 |
| Steam Generation Time (s) | 120-150 |
| Ignition Method | Smart Pulse Ignition |
| Applicable Water Pressure (MPa) | 0.1~0.4 |
| Rated Voltage | AC220/50Hz |
| Steam Outlet Specification | DN40 Flange |
| Water Inlet Specification | DN15 External Thread |
| Gas Inlet Specification | DN40 External Thread |
| Drain Outlet Specification | DN25 External Thread ×6 |
| Exhaust Pipe Diameter (mm) | φ219 |
| Rated Power (W) | 4000 |
| Water Tank Pressure Rating (MPa) | 0~0.7 |
| Rated Heat Load (kW) | 360 |
| Evaporation Capacity (kg/h) | 500 |
| Natural Gas Consumption (m³/h) | 36 |
| Dimensions (L×W×H, mm) | 2060×990×1740 |
| Packaging Dimensions | [Not Specified] |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 748 |
| Gross Weight (kg) | 790 |

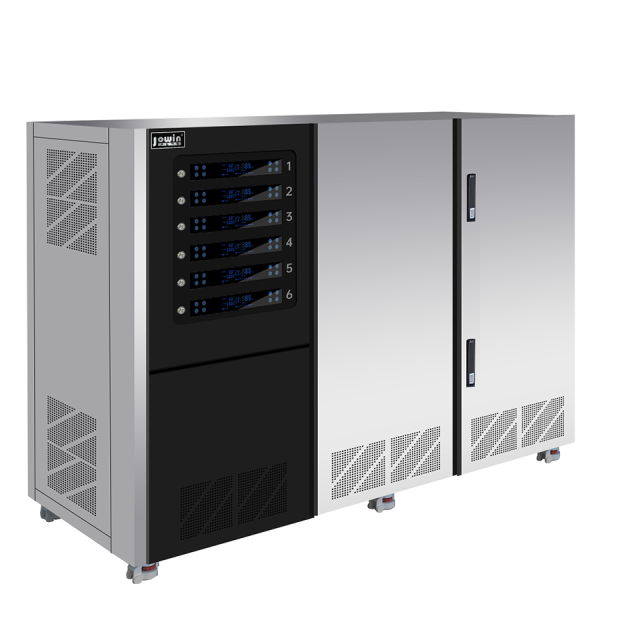

Meet the MZQT60/07X6 Modular Commercial Gas Steam Generator – the pinnacle of industrial steam technology for ultra-large-scale food production. With an extraordinary 360kW heating capacity and massive 500kg/h steam output, this six-module powerhouse redefines high-volume processing capabilities. Engineered for the most demanding food manufacturing environments, it delivers uninterrupted steam supply for continuous production lines, ensuring maximum efficiency in large-scale bakeries, food processing complexes, and industrial kitchens.
Massive Steam Output - 500kg/hour evaporation capacity meets the requirements of ultra-large production facilities
Six-Module Power Configuration - 360kW rated heat load guarantees consistent performance in 24/7 operations
Ultra-Fast Steam Generation - Ready-to-use steam production within 120-150 seconds ensures minimal downtime
Industrial-Grade Connection System - DN40 flange connections provide maximum flow capacity and reliability
Heavy-Duty Construction - Professional components withstand continuous heavy industrial use
Optimized Layout Design - Efficient 2060×990×1740mm dimensions accommodate high-capacity performance
Ultra-large-scale industrial baking operations
Food processing mega-plants and manufacturing facilities
High-capacity pasteurization and sterilization systems
Beverage and dairy production complexes
Centralized kitchen facilities for large-scale food service
Industry-leading 500kg/h steam capacity for maximum productivity
Optimized natural gas consumption at 36m³/h
Professional DN40/DN15 connections for heavy-duty installation
Full compliance with food safety and quality standards
Wide 0.1-0.4MPa water pressure range for versatile operation
For industrial food processors requiring ultimate steam capacity and absolute reliability, the MZQT60/07X6 delivers exceptional performance for the most challenging production requirements. Contact us for enterprise solutions and custom technical support.
