| Parameter | DZ-500/2SA3 (Flatbed) | DZ-500/2SB3 (Grooved) | DZ-600/2SA3 (Flatbed) | DZ-600/2SB3 (Grooved) | DZ-700/2SA3 | DZ-820/2SA (Brushed 201 Steel) | DZ-820/2SA (Manual, Sandblasted 304 Steel) | DZ-820/2SA (Full-Automatic, Sandblasted 304 Steel) | DZ-820/2SA (Extended Width, Sandblasted 304 Steel) |
|---|---|---|---|---|---|---|---|---|---|
| Basic Information | |||||||||
| English Name | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Full-Automatic Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine |
| Model | DZ-500/2SA3 | DZ-500/2SB3 | DZ-600/2SA3 | DZ-600/2SB3 | DZ-700/2SA3 | DZ-820/2SA | DZ-820/2SA | DZ-820/2SA | DZ-820/2SA |
| Lid Design | Tower Lid | Tower Lid | Tower Lid | Tower Lid | Tower Lid | Tower Lid | Tower Lid | Tower Lid | Tower Lid |
| Technical Specifications | |||||||||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Sealing Power (W) | 800 | 800 | 1000 | 1300 | 1500 | 1400 | 1400 | 1400 | 1400 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 570×520×100 | 550×428×120 | 670×570×120 | 660×550×180 | - | 880×755×170 | 880×755×170 | 880×755×170 | - |
| Chamber Effective Dimensions (L×W×H) (mm) | - | - | - | - | 700×500×180 | - | - | - | 800×770×170 |
| Sealing Length (mm) | 520 | 500 | 600 | 600 | 700 | 820 | 820 | 820 | 820 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 | 20×2 | 20×3 | 20/40/63/100 | 100 | 100 | 100 | 200 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 304 | Stainless Steel 201 | Stainless Steel 304 | Stainless Steel 201 | Stainless Steel 201 (Brushed) | Stainless Steel 304 (Sandblasted) | Stainless Steel 304 (Sandblasted) | Stainless Steel 304 (Sandblasted) |
| External Dimensions (L×W×H) (mm) | 1225×692×924 | 1205×632×950 | 1425×632×932 | 1405×712×959 | 1700×670×1010 | 2050×868×1020 | 2050×868×1020 | 2050×868×1020 | 2050×1100×1020 |
| Net Weight (kg) | 162 | 178 | 188 | 305 | 265 | 295 | 295 | 295 | 295 |
| Center Distance Between Sealing Bars (mm) | 500 | 460 | 500 | 510 | 540 | 668 | 668 | 668 | 810 |
| Operation Type | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Manual | Full-Automatic | Automatic |

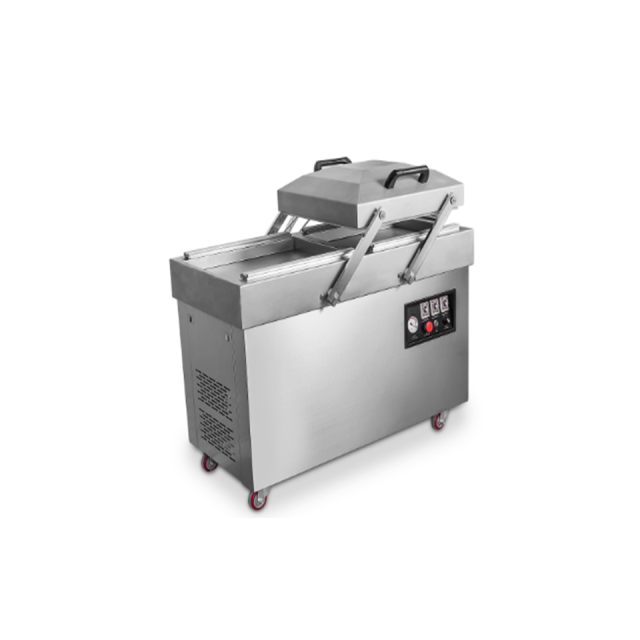

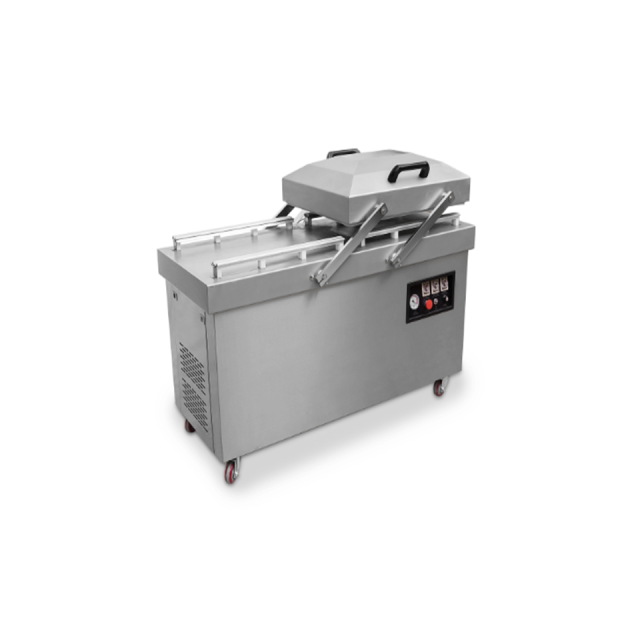

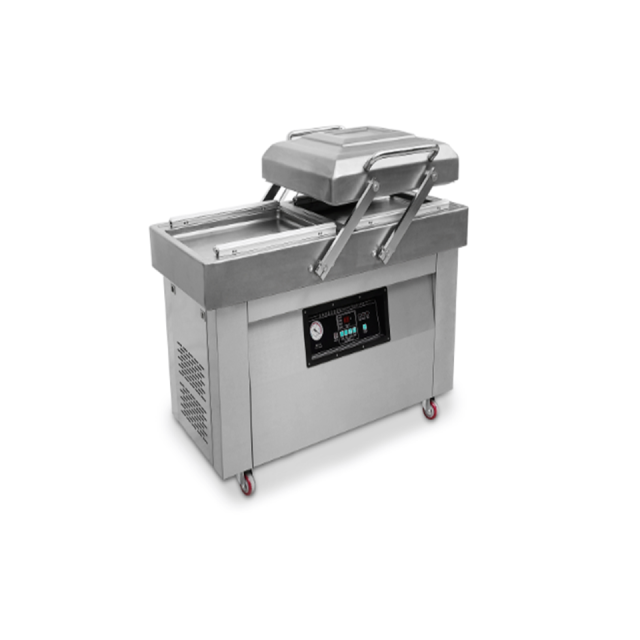

Engineered for modern food processing facilities, the Pagoda Cover Double-Chamber Vacuum Packaging Machine delivers exceptional efficiency through its innovative tower lid design and dual-chamber operation. This professional-grade system combines reliable vacuum technology with versatile chamber configurations to meet diverse packaging requirements. Available in both flatbed and grooved chamber designs, the machine ensures optimal performance for various food products in high-volume production environments.
Tower Lid Design - Innovative pagoda-style cover ensures even pressure distribution and reliable sealing performance
Dual Chamber Configuration - Continuous alternating operation maximizes production efficiency with minimal downtime
Versatile Chamber Options - Choose between flatbed and grooved designs to match specific product requirements
Progressive Sizing - Available in 500mm, 600mm, and 700mm sealing lengths to accommodate different production scales
High-Efficiency Vacuum - 2000-3000W motor power with 40-100m³/h extraction capacity ensures rapid air removal
Dual Sealing System - Two 10mm sealing bars per chamber with 800-1500W power deliver secure package integrity
Medium to large-scale food processing operations
Meat and poultry packaging facilities
Prepared food and meal production
Seafood and aquatic product packaging
Industrial food manufacturing operations
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Heavy-duty construction (162-305kg) ensures stability during continuous operation
Premium stainless steel construction (201/304) provides superior corrosion resistance
Industrial-grade components support reliable 24/7 performance
Standard 380V power compatibility meets industrial facility requirements
For food processing operations seeking reliable dual-chamber packaging solutions, the Pagoda Cover Double-Chamber Vacuum Packaging Machine offers enhanced efficiency with professional-grade performance. Contact us for technical specifications and configuration guidance.
