| Standard Packaging | Main Configurations | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | QF370T-S | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Width (mm) | 370 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 200 | Photoelectric Sensor (Length Measuring) | Dasheng Self-developed |
| Packaging Speed (times/min) | 5～6 | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Production Capacity (boxes/hour) - 1-out | ≈360 | Air Cylinder | Tianqi 100 Cylinder * 2 |
| Production Capacity (boxes/hour) - 2-out | ≈640 | Solenoid Valve | Airtac (Taiwan) |
| Production Capacity (boxes/hour) - 4-out | ≈1200 | Filter | Airtac (Taiwan) |
| Power Supply (V/Hz) | 220/50 | Film Rewinding Motor | Taisong |
| Total Power (kW) | 2.1 | Control System | Dasheng Intelligent Self-developed Control System |
| Working Air Pressure (Mpa) | 0.6～0.8 | Push Button Switch | Chint |
| Equipment Weight (kg) | 86 | Cartridge Cylinder | Tianqi |
| Equipment Dimension LWH (mm) | 1035950665 | ||
| Packaged Gross Weight (kg) | 114 | ||
| Anneng Volumetric Weight (kg) | 188 | ||
| Outer Carton Dimension LWH (mm) | 10701070820 | ||

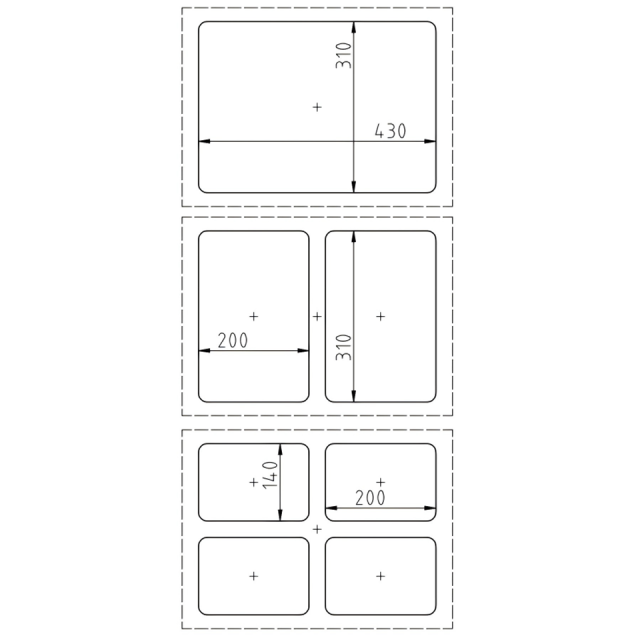

| Max. Tray Size (mm) - 1-out | 43031080 (*1) | ||
| Max. Tray Size (mm) - 2-out | 31020080 (*2) | ||
| Max. Tray Size (mm) - 4-out | 20014080 (*4) |

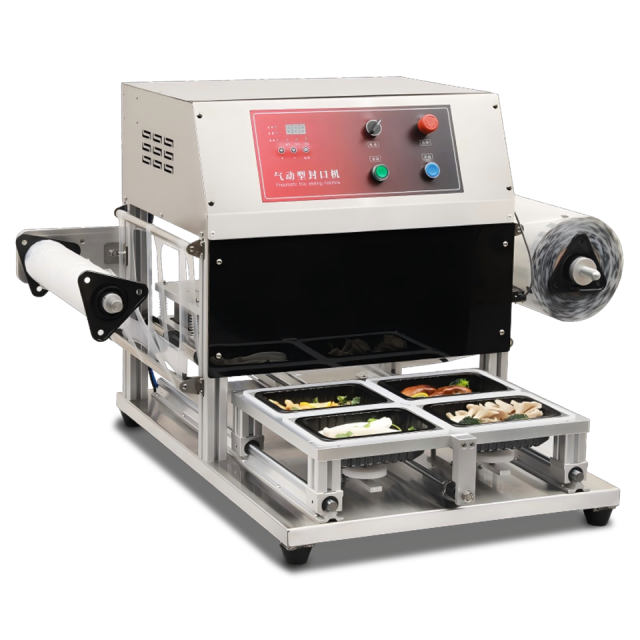

The QF370T-S Industrial Pneumatic Sealer redefines high-capacity packaging efficiency with its innovative multi-outlet design, delivering unmatched throughput of up to 1,200 packages per hour. Engineered with dual Tianqi 100mm cylinders and Airtac precision pneumatic components, this heavy-duty system maintains stable 5-6 cycles per minute while accommodating larger tray formats up to 430×310×80mm. The fully stainless steel construction, enhanced by 6061 anodized aluminum molds and self-developed photoelectric sensors, ensures exceptional durability and precise film control for continuous industrial operations. Designed specifically for large-scale food processing plants and high-volume meal production facilities, this sealer combines robust performance with intelligent automation for maximum productivity.
High-Capacity Pneumatic System - Dual Tianqi 100mm cylinders with Airtac valves provide powerful sealing force for continuous operation
Multi-Outlet Efficiency - 4-out configuration enables simultaneous processing of multiple trays
Precision Film Control - Advanced photoelectric sensors ensure accurate film positioning
Industrial-Grade Construction - Full stainless steel housing with anodized aluminum molds
Smart Operation - Self-developed control system with intuitive interface
Large-Scale Food Processing - Ideal for meat, poultry and prepared foods packaging
Meal Production Facilities - Perfect for high-volume meal kit and ready-to-eat food lines
Industrial Packaging - Suitable for bulk packaging operations
Food Distribution Centers - Excellent for central kitchen and distribution applications
Heavy-duty pneumatic system ensures reliable performance
Quick changeover between different tray configurations
Energy-efficient operation with 2.1kW power consumptionCompact footprint (1035×950×665mm) for production lines
