| Specification | Details |
|---|---|
| Model | 20-Layer 20-Tray Touchscreen Universal Steam Oven AWE-201B-M2 |
| Brand | Axewood |
| Manufacturer | Guangzhou Golden Armor Catering Equipment Co., Ltd. |
| Place of Origin | Guangzhou, China |
| Heating Method | Electric Heating |
| Cooking Modes | Steam, Roast, and Steam-Roast Combination |
| Control Interface | High-definition color capacitive touchscreen with rotary knob for temperature and time settings; user-friendly Chinese interface with USB port |
| Features | Reservation, layered recipes, layered timing, temperature difference cooking, automatic preheating/cooling |
| Menu System | 300 programmable menus with actual cooking temperature/humidity display and power consumption tracking after completion |
| Menu Programming Steps | 15 steps per program |
| Operating Temperature | 30-290°C |
| Temperature Accuracy | ±1°C |
| Cleaning Methods | 6 Fully Automatic Cleaning Modes |
| Meat Probe | Built-in 4-point temperature meat probe |
| Fan Type | Frequency Conversion Variable Speed Fan |
| Air Speed Adjustment | 50-110% |
| Steam (Humidity) Control | 10-100% Adjustable |

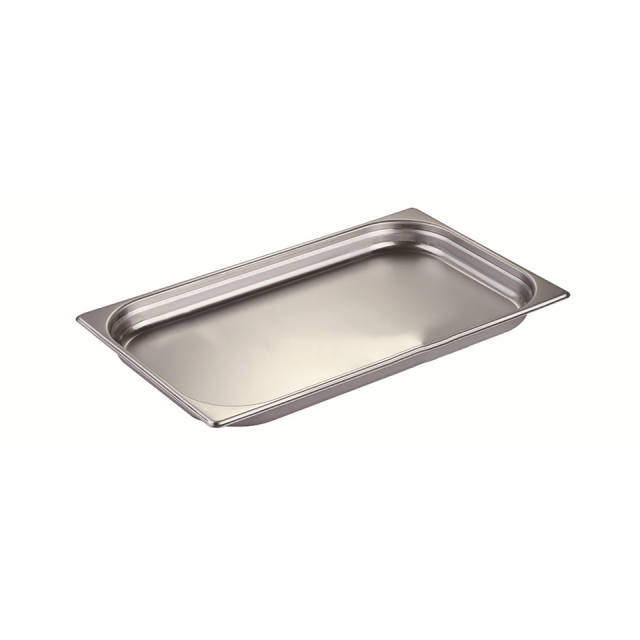

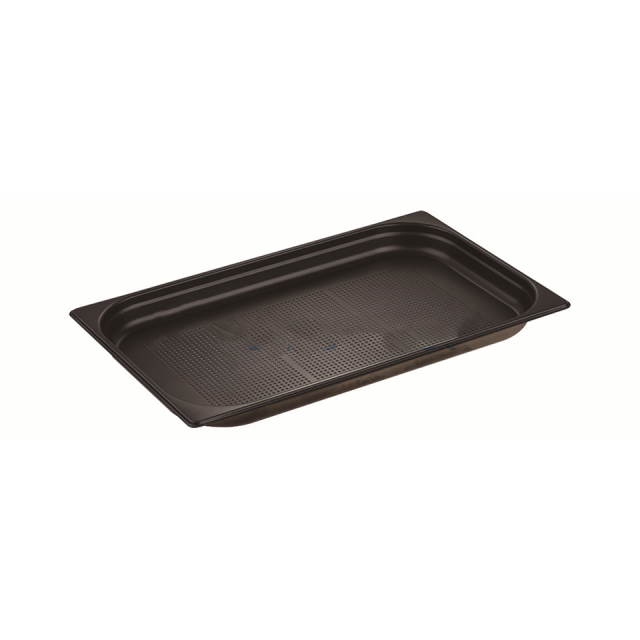

| Capacity | 20 x 1/1 GN |
| Daily Meal Capacity | 400-600 portions |
| Heating Power | 32 kW |
| Total Power Consumption | 32.8 kW |
| Total Current | 49A |
| Circuit Breaker Requirement | 60A |
| Power Supply | N-380V AC/50Hz/3PH |
| Included | One rack-type trolley |
| External Dimensions (mm) | 935 × 795 × 1800 |
| Cavity Entrance Size (mm) | 609 × 1380 |
| Water Inlet Diameter | 3/4" to 1/2" |
| Water Pressure | 0.2-0.5 MPa |
| Drain Pipe Diameter | 42mm |
| Net Weight | 271.5 kg |
| Gross Weight | 311.5 kg |
| Package Dimensions (mm) | 1080 × 930 × 1980 |
| Warranty | 2-Year Warranty (Excluding consumables such as glass, bulbs, door seals, etc.) |

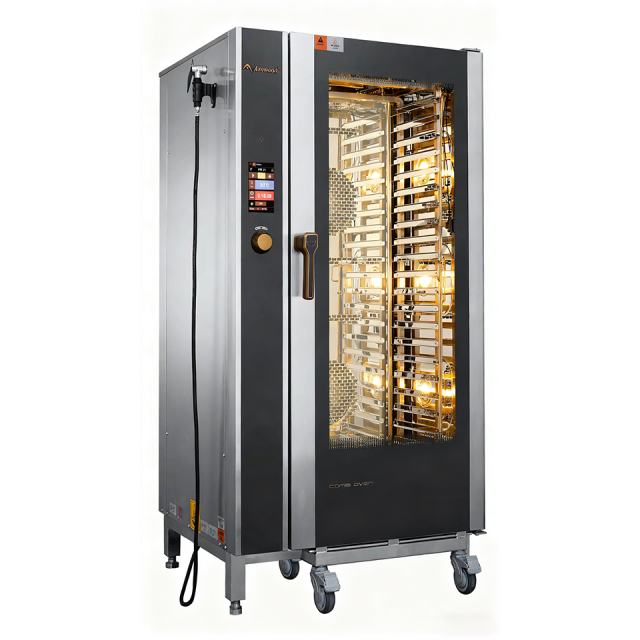

The Axewood AWE-201B-M2 20-Layer Touchscreen Universal Steam Oven represents the pinnacle of industrial-scale cooking technology, designed for ultra-high-volume food production facilities. This massive capacity combi oven combines a powerful 32kW heating system with precision steam control, maintaining ±1°C temperature accuracy across a 30-290°C range. The high-definition capacitive touchscreen with rotary knob offers intuitive control over 300 programmable menus, while advanced features include layered cooking, temperature difference settings, and real-time power consumption tracking.
Industrial-Scale Capacity - 20 GN pan capacity producing 400-600 meals daily
Advanced Touchscreen Control - HD capacitive display with 300 programmable menus
Precision Cooking Technology - ±1°C temperature accuracy with 10-100% steam control
High-Power Performance - 32kW heating system for rapid heating and recovery
Central Production Kitchens - Mass meal production for multiple outlets
Large-Scale Catering - Banquet and event catering for 500+ guests
Institutional Food Service - Schools, hospitals, and corporate dining facilities
Energy-efficient 32.8kW power consumption
Six automated cleaning programs
Included rack trolley for easy operation
Backed by 2-year warranty with complete documentation and professional technical support services.
