| Parameter | Technical Specification |
|---|---|
| Peak Pulse Voltage | 5000V ~ 10000V |
| Pulse Duration | ≤ 0.1 second |
| Pulse Interval | ≥ 1 second |
| Maximum Charge per Pulse | ≤ 2.5 millicoulombs |
| Maximum Energy per Pulse | ≤ 5.0 joules |
| Alarm Response Time | Within 3 seconds when open circuit or short circuit occurs at the front end |
| Operating Temperature | -30℃ ~ +75℃ (supported by some main units) |
| Power Supply | AC 220V with backup battery interface |

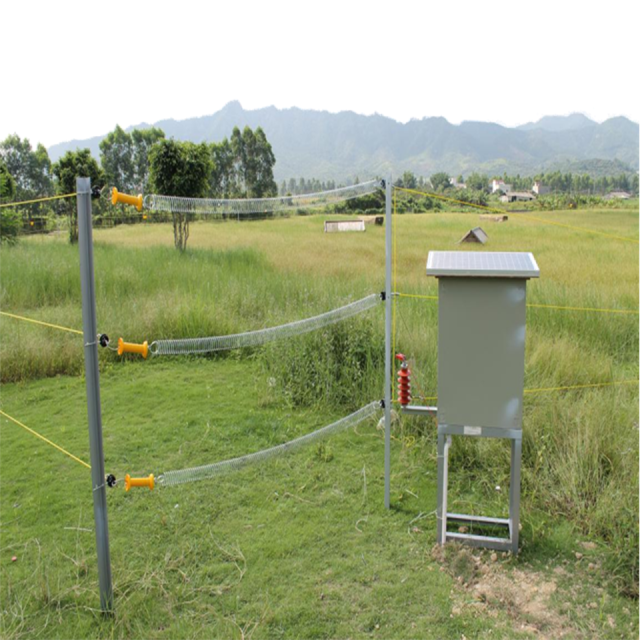

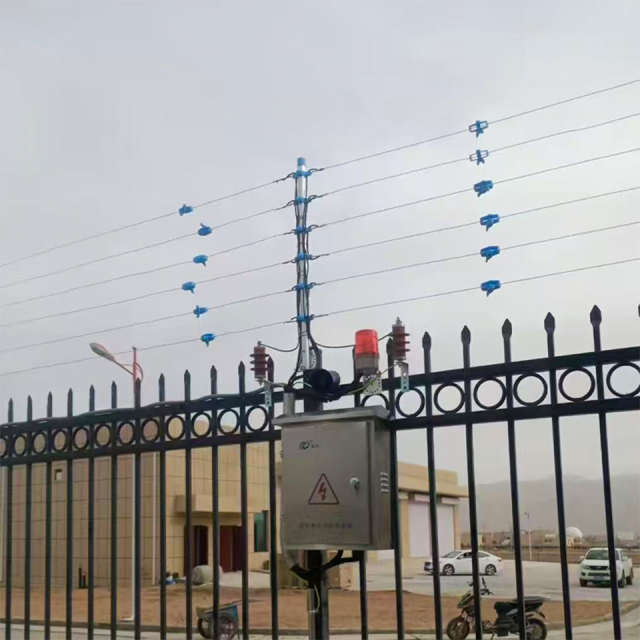

Engineered for modern agricultural and security applications, the Pulsed Electric Fence delivers reliable perimeter protection through advanced pulse technology. This professional-grade system combines high-voltage pulse delivery with intelligent monitoring to create effective barriers for livestock management and property security. The robust design and precise electrical characteristics ensure optimal performance while maintaining safety standards for both animals and operators.
High-Voltage Pulse Technology - 5000V-10000V peak pulse voltage creates effective deterrent barriers
Precision Pulse Control - ≤0.1 second pulse duration with ≥1 second intervals ensures safety and efficiency
Advanced Safety Compliance - ≤2.5 millicoulomb charge and ≤5.0 joule energy per pulse meet international safety standards
Rapid Fault Detection - 3-second alarm response for open/short circuits enables immediate maintenance
Wide Temperature Operation - -30℃ to +75℃ range ensures reliable performance in extreme environments
Dual Power Supply - AC 220V operation with backup battery interface provides uninterrupted protection
Livestock containment and management
Agricultural field protection
Commercial property security
Wildlife deterrent systems
Industrial facility perimeter security
Precision pulse timing maintains consistent barrier effectiveness
Robust circuit design withstands environmental challenges
Energy-efficient operation minimizes power consumption
Intelligent monitoring system provides real-time status updates
Weather-resistant components ensure long-term reliability
For agricultural and security operations requiring reliable perimeter solutions, the Pulsed Electric Fence offers professional-grade performance with advanced safety features. Contact us for technical specifications and application-specific configuration options.
