| Technical Parameters | Standard Packaging | Main Configurations | Main Configurations |
|---|---|---|---|
| Equipment Model | QF260T-S | Main Structure & Housing | Stainless Steel |
| Max. Roll Film Width (mm) | 260 | Mold Part | 6061 Aluminum (Anodized) |
| Max. Roll Film Diameter (mm) | 200 | Photoelectric Sensor (Length Measuring) | Dasheng Self-developed |
| Packaging Speed (times/min) | 5～6 | Photoelectric Sensor (Cursor Film) | Xinling Electric |
| Production Capacity (boxes/hour) - 1-out | ≈360 | Air Cylinder | Tianqi |
| Production Capacity (boxes/hour) - 2-out | ≈640 | Solenoid Valve | Airtac (Taiwan) |
| Power Supply (V/Hz) | 220/50 | Filter | Airtac (Taiwan) |
| Total Power (kW) | 1.1 | Film Rewinding Motor | Taisong |
| Working Air Pressure (Mpa) | 0.6～0.8 | Control System | Dasheng Intelligent Self-developed Control System |
| Equipment Weight (kg) | 59 | Push Button Switch | Chint |
| Equipment Dimension LWH (mm) | 945680565 | Cartridge Cylinder | Tianqi |
| Packaged Gross Weight (kg) | 80 | ||
| Anneng Volumetric Weight (kg) | 139 | ||
| Outer Carton Dimension LWH (mm) | 990850820 | ||

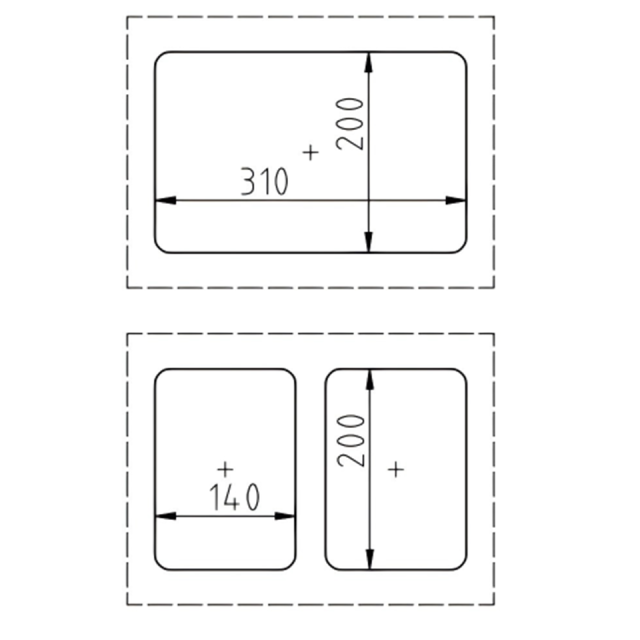

| Max. Tray Size (mm) - 1-out | 31020080 (*1) | ||
| Max. Tray Size (mm) - 2-out | 20014080 (*2) |

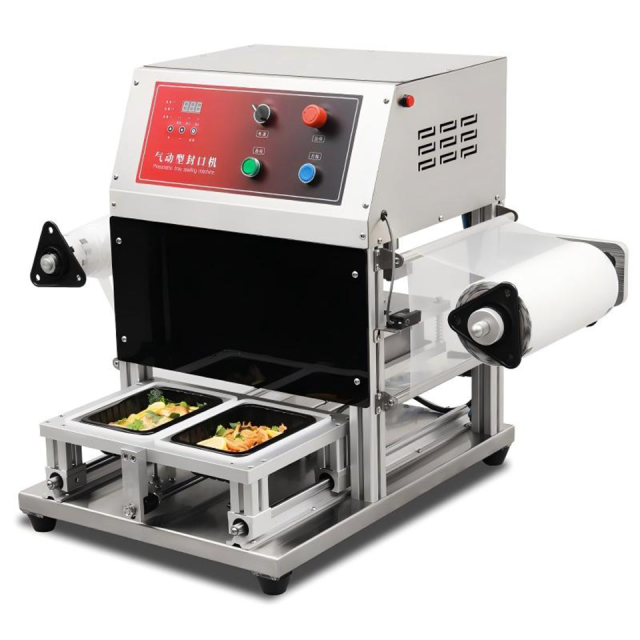

The QF260T-S Pneumatic Tray Sealer combines industrial reliability with precision engineering to deliver exceptional packaging performance in demanding environments. Utilizing advanced pneumatic technology with Airtac solenoid valves and Tianqi cylinders, this machine ensures consistent sealing quality across 5-6 cycles per minute. The robust stainless steel construction, complemented by 6061 anodized aluminum molds, provides lasting durability while maintaining full hygiene compliance. With production capacities reaching 640 packages per hour and intelligent photoelectric sensing for accurate film positioning, this sealer offers an ideal solution for medium-to-high volume food processors seeking reliable, maintenance-friendly performance.
Industrial Pneumatic System - Features Airtac precision solenoid valves and Tianqi cylinders for consistent power delivery and reliable sealing performance
High-Efficiency Operation - Maintains 5-6 cycles per minute with production capacity up to 640 packages hourly
Precision Film Control - Integrated photoelectric sensors ensure accurate film positioning and seamless sealing cycles
Durable Construction - Stainless steel frame with 6061 anodized aluminum molds withstands rigorous daily operation
Energy-Smart Design - Consumes only 1.1kW while delivering robust packaging performance
Prepared Foods - Ideal for ready meals, portion-controlled products, and fresh ingredient packaging
Protein Processing - Perfect for meat, poultry, and seafood tray sealing applications
Meal Kit Assembly - Suitable for subscription meal services and recipe box packaging
Retail Packaging - Excellent for supermarket deli departments and specialty food retailers
Maintenance-friendly pneumatic system with quick component accessibility
Tool-free adjustments for rapid production changeovers
Self-diagnostic control system minimizes troubleshooting time
Compact footprint (945×680×565mm) optimizes production floor space
Compatible with various film materials and tray configurations
