| Parameter Category | Parameter | Value |
|---|---|---|
| General Information | Model | RD-2008A (Standard Model) |
| Application | Baking Industry | |
| Main Material | SUS304 Stainless Steel | |
| Design Features | Fully compliant with GMP standards and FDA certification requirements | |
| Material Effect Suppression | Standard Anti-interference Shielding | |
| Detection Chip | Imported Chip | |
| Mechanical Specifications | Overall Length | L1200mm |
| Aperture Size | W250×H110mm | |
| Product Pass Size | W250×H80mm | |
| Conveyor Height | 850±50mm | |
| Conveying Direction | Left to Right | |
| Conveyor Belt Width | 200mm (Imported PU, oil-resistant, low-temperature resistant, waterproof) | |
| Electrical & Control Specifications | Detection Method | Automatic |
| Detection Probe | DPS Digital Signal Source (Germany) | |
| Operation Interface | Electroplated Key Operation | |
| Recording Function | Detection counting function, automatically counting total products, qualified products, and defective products | |
| Automatic Setting Function | Automatic setting (detection sensitivity can be automatically set after product runs through once) | |
| Protection Level | IP56 Food Grade | |
| Optimal Sensitivity (No Load) | Fe≥Ø0.8mm, N-Fe≥Ø1.0mm, SUS304≥Ø1.5mm | |
| Note | Detection sensitivity may vary depending on product material effects and environment | |
| Alarm Method | Audible-Visual Alarm | |
| Rejection Method | Screen shows metal detection, with automatic pneumatic rejection | |
| Belt Speed | 26m/min | |
| Operating Temperature | -18℃~50℃ |

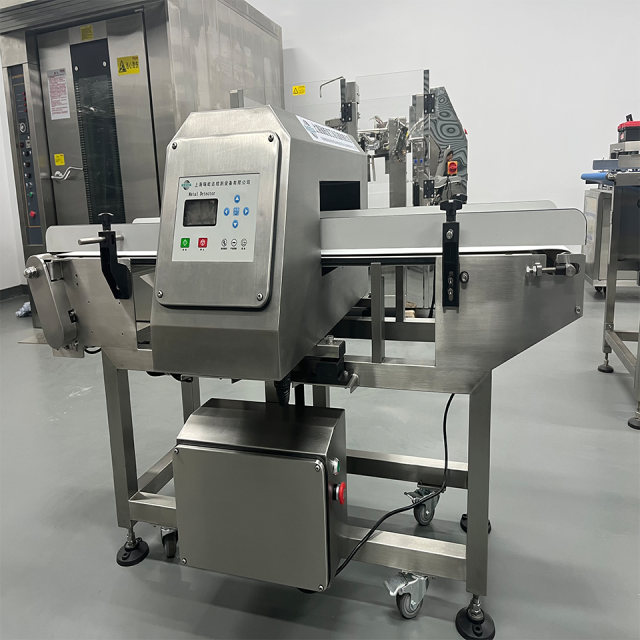

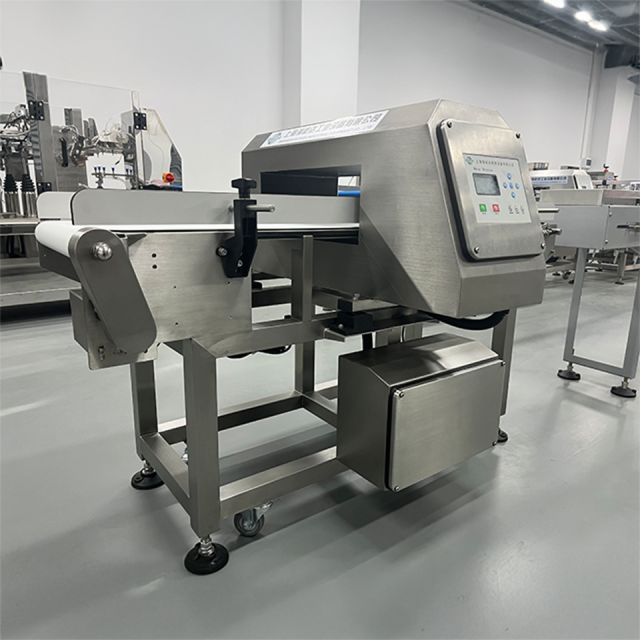

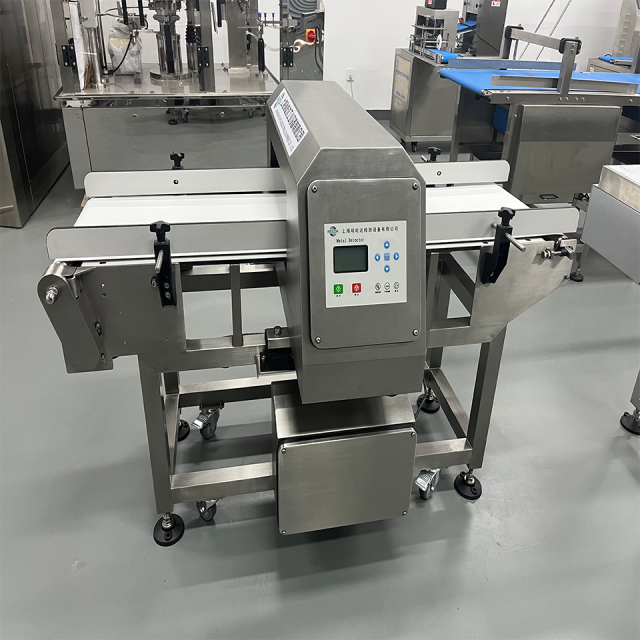

The RD-2008A Metal Detector is a pr
ofessional-grade inspection solution designed specifically for the food and baking industry, helping manufacturers ensure product safety, regulatory compliance, and consistent quality. Built with SUS304 stainless steel and fully compliant with GMP standards and FDA requirements, it is ideal for integration into modern food production lines.
Equipped with an imported detection chip and German DPS digital signal probe, the RD-2008A delivers stable and accurate metal detection, even in environments with strong product effects. The standard anti-interference shielding effectively suppresses material interference, ensuring reliable inspection of baked goods and packaged food products.
Fe ≥ Ø0.8 mm
Non-Fe ≥ Ø1.0 mm
SUS304 ≥ Ø1.5 mm
(Actual sensitivity may vary depending on product characteristics and operating environment.)
Main Material: SUS304 stainless steel
Protection Level: IP56 food-grade, suitable for wash-down environments
Conveyor Belt: Imported PU belt (oil-resistant, low-temperature resistant, waterproof)
Belt Width: 200 mm
The hygienic structure ensures easy cleaning and long-term durability, making it suitable for continuous use in food factories.
The RD-2008A features an electroplated key operation interface for simple, intuitive control. Its automatic detection and auto-setting function allows the system to calibrate sensitivity after a single product pass, reducing setup time and operator error.
Built-in recording functions include:
Total product count
Qualified product count
Defective product count
This makes quality tracking and production reporting more efficient.
When metal contamination is detected, the system triggers a visual and audible alarm, while the screen displays detection information. A pneumatic automatic rejection system removes contaminated products from the line immediately, minimizing risk and downtime.
Detection Method: Fully automatic
Operating Temperature: -18°C to 50°C
Suitable for a wide range of food processing environments, including chilled production areas.
Bakeries and baked goods production lines
Food processing and packaging factories
Snack, pastry, and confectionery manufacturers
Any food production environment requiring strict metal contamination control
The RD-2008A Food Industry Metal Detector combines precision detection, hygienic design, and intelligent automation, making it a dependable choice for food manufacturers seeking to meet international safety standards and Amazon-level quality expectations.
