| Category | Parameter | Specification |
|---|---|---|
| General Information | Model | RD-A300 |
| Application | Bagged products | |
| Main Material | SUS304 Stainless Steel | |
| Design Standard | Fully compliant with GMP food standards and FDA requirements | |
| Weighing Performance | Weighing Range | 10–3000 g |
| Division Value | 0.1 g | |
| Sorting Accuracy | ±0.5–1.5 g | |
| Operating Capacity | Detection Speed | 20–60 m/min |
| Conveyor Belt Width | 210 mm | |
| Max Product Size | L450 × W300 mm | |
| Conveyor System | Conveying Direction | Left to right (facing the display) |
| Conveyor Height | According to drawing | |
| Control & Display | Operation Interface | 7-inch color touchscreen |
| Alarm & Rejection | Alarm Method | Audible and visual alarm |
| Rejection Method | Automatic pusher rejection | |
| Installation Conditions | Operating Requirements | Stable installation, no vibration, no airflow interference |
| Material Requirements | Single-type products, orderly feeding, same direction, equal spacing | |
| Electrical Specifications | Power Supply | 220V / 50Hz |
| Power Consumption | 400–500 W | |
| Dimensions | Overall Size | According to drawing |

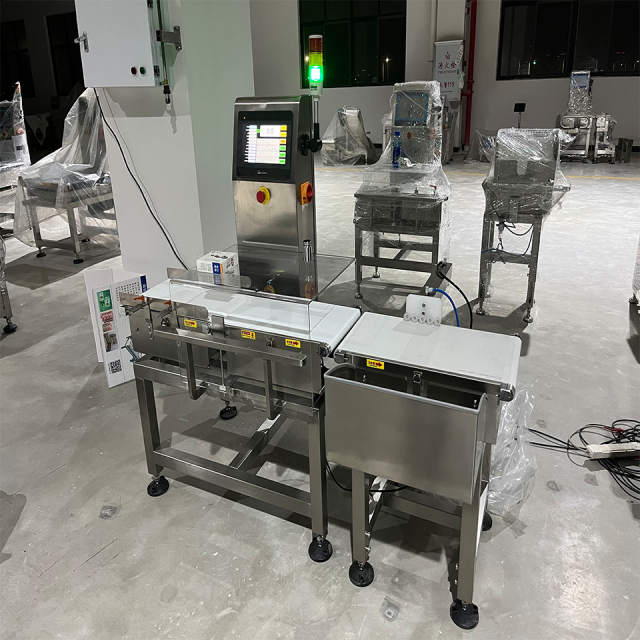

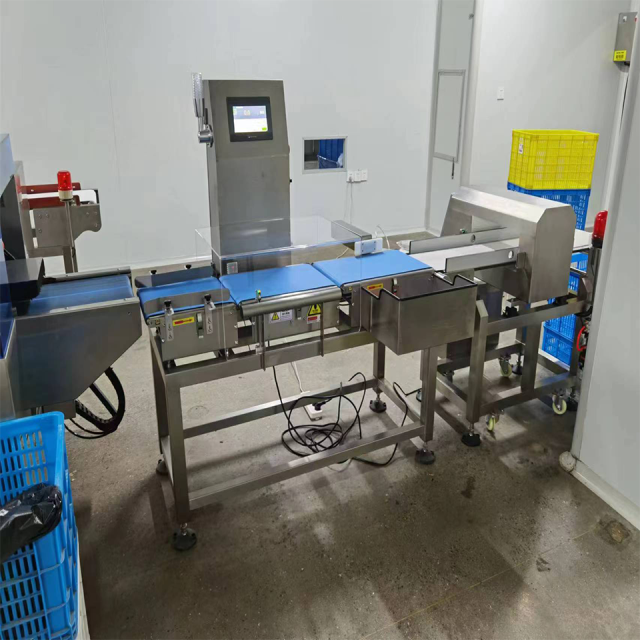

The RD-A300 Automatic Checkweigher is a high-precision weight inspection solution designed for bagged food products in modern food processing and packaging lines. Built with SUS304 stainless steel and fully compliant with GMP food standards and FDA requirements, this checkweigher ensures accurate weight control, product consistency, and regulatory compliance in high-speed production environments.
The RD-A300 offers a wide weighing range from 10 g to 3000 g with a 0.1 g division value, delivering reliable and consistent weight detection. With a sorting accuracy of ±0.5–1.5 g, it effectively identifies underweight and overweight products, helping manufacturers reduce product giveaway and maintain strict quality control.
Designed for efficiency, the RD-A300 supports inspection speeds of 20–60 m/min, making it ideal for continuous, high-throughput food packaging operations. The 210 mm wide conveyor belt accommodates products up to 450 × 300 mm, ensuring smooth and stable conveying of bagged goods.
Constructed entirely from SUS304 stainless steel, the RD-A300 offers excellent corrosion resistance, durability, and ease of cleaning. Its hygienic design supports daily wash-down requirements and meets the strict sanitation standards of food factories, bakeries, and packaging facilities.
The system features a 7-inch full-color touchscreen interface, providing clear operation menus and real-time monitoring. Operators can easily adjust parameters, view weight data, and manage production settings with minimal training.
When a product falls outside the preset weight tolerance, the RD-A300 activates a visual and audible alarm and removes the non-conforming item using an automatic pusher rejection system, ensuring only qualified products continue down the production line.
For optimal performance, the RD-A300 is designed to operate in a stable, vibration-free environment, with orderly product feeding at consistent spacing and direction. These conditions ensure maximum weighing accuracy and long-term reliability.
• Bagged food products
• Snack and confectionery packaging
• Bakery and frozen food lines
• Ready-to-eat meal production
• Food factories requiring precise weight control
The RD-A300 Checkweigher combines precision weighing, hygienic construction, and high-speed automation, making it a dependable choice for food manufacturers seeking consistent quality, regulatory compliance, and efficient production control.
