| Category | Parameter | Specification |
|---|---|---|
| General Information | Model | RD-TA4016 |
| Application | Packaged food & bagged products | |
| Main Material | SUS304 stainless steel, 4 mm thickness | |
| Equipment Standards | Fully compliant with GMP food standards and FDA requirements | |
| Configuration | Imported core components, UL-compliant, GMP-structure design, tool-free disassembly | |
| Detection Capability | Best Detection Accuracy (No Load) | Stainless steel ball ≥ Ø0.4 mm |
| Ceramic ball ≥ Ø1.5 mm | ||
| Glass ball ≥ Ø2.0 mm | ||
| Stainless steel wire ≥ Ø0.4 × 5 mm | ||
| Detectable Contaminants | Metal, stone, sand, glass, ceramic, and other high-density foreign objects | |
| X-Ray System | X-Ray Source | 30–80 kV, 15 mA (Max power 240 W) |
| X-Ray Detector Resolution | 0.4 mm | |
| Seal Inspection | Aluminum foil packaging seal inspection & shielding detection | |
| AI Function | AI adaptive self-learning | |
| Conveyor System | Conveyor Speed | 10–40 m/min |
| Conveyor Belt Width | 400 mm | |
| Max Product Size | L400 × W160 mm | |
| Radiation Safety | X-Ray Leakage | < 1 μSv/h (Complies with WTO food safety standards) |
| X-Ray Protection | Door-open automatic X-ray shutdown; Radiation Safety License issued by national authority | |
| Protection & Cooling | Protection Level | IP65 |
| Cooling System | Independent air conditioning cooling + independent dehumidifier | |
| Rejection & Alarm | Rejection Method | Automatic pusher rejection |
| Alarm Method | Audible and visual alarm | |
| Connectivity | IoT Interfaces | USB, RS485 / RS232, Ethernet |
| Control System | Operating System | Self-developed control system |
| Control Computer | Industrial PC (Pentium E) | |
| Display | 15.6-inch industrial touchscreen | |
| System Functions | Configuration & Adjustment | Unlimited product memory, adjustable detection parameters |
| Additional Functions | Rejection signal output, remote networking, machine lock, remote service |

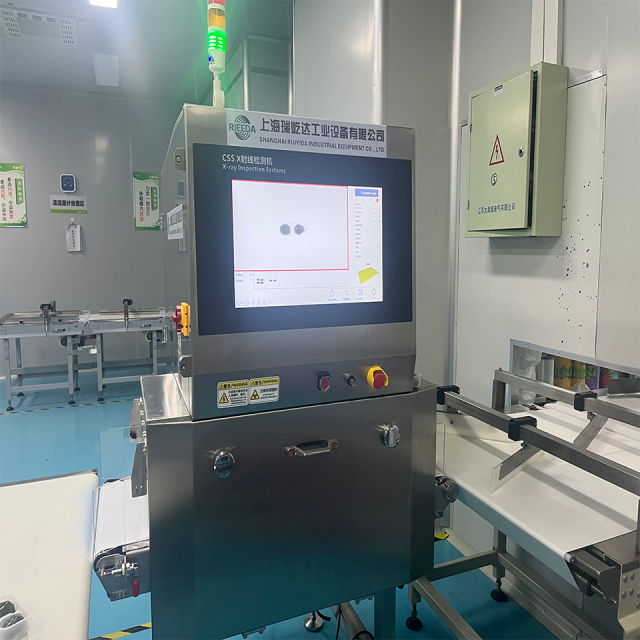

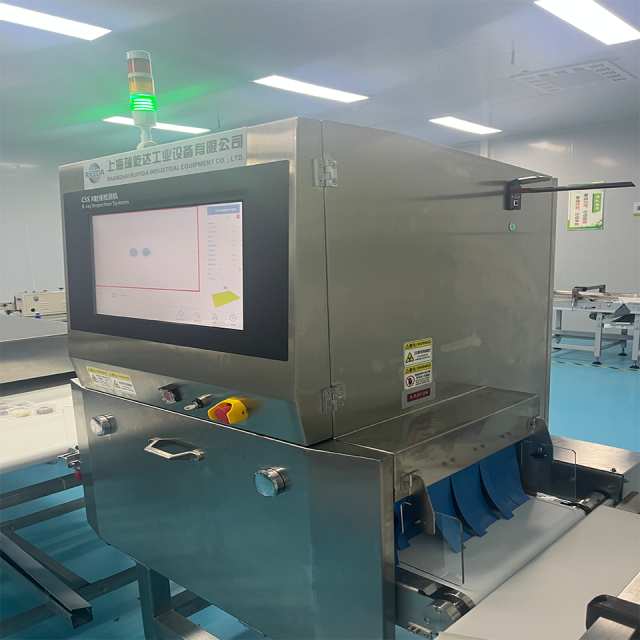

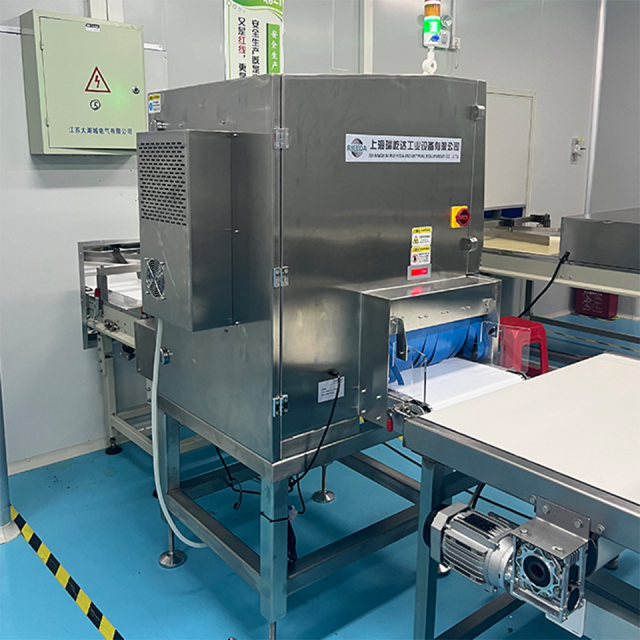

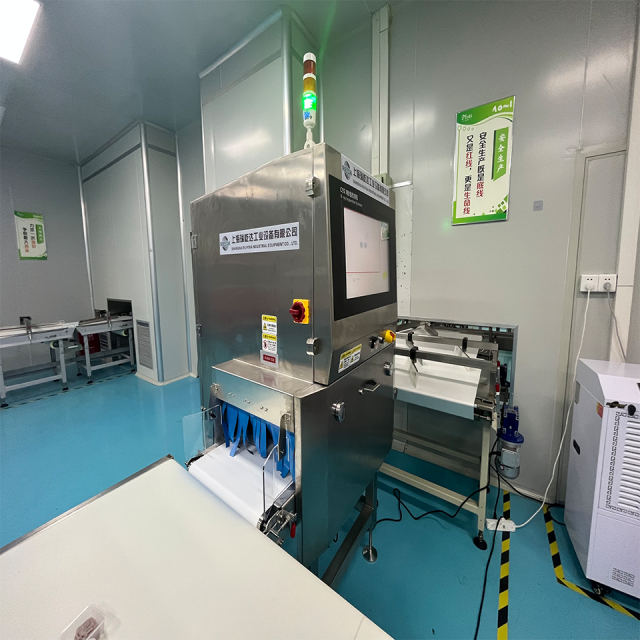

The RD-TA4016 X-Ray Inspection System is a high-precision foreign object detection solution engineered for the food processing and packaging industry. Designed to meet GMP food standards, FDA requirements, and UL-certified configurations, this system ensures maximum product safety, quality control, and regulatory compliance for modern food production lines.
Equipped with a high-resolution 0.4 mm X-ray detector and a powerful 30–80 kV / 15 mA X-ray source, the RD-TA4016 delivers outstanding detection accuracy for both metallic and non-metallic contaminants. It reliably identifies:
Stainless steel balls ≥ Ø0.4 mm
Ceramic balls ≥ Ø1.5 mm
Glass balls ≥ Ø2.0 mm
Stainless steel wire ≥ Ø0.4 × 5 mm
The system can detect metal, sand, stone, glass, ceramic, and other high-density foreign materials, even inside complex or aluminum-foil packaging.
Featuring AI adaptive self-learning technology, the RD-TA4016 automatically adjusts detection parameters based on product characteristics. This reduces false rejects, improves detection stability, and simplifies setup when switching products. The system also supports aluminum foil seal inspection and shielding detection, ensuring package integrity and product safety.
Main Body Material: 4 mm SUS304 stainless steel
Protection Level: IP65, suitable for wash-down food environments
Structure: GMP-compliant hygienic design with tool-free disassembly
Built for continuous industrial operation, the RD-TA4016 offers excellent corrosion resistance, easy cleaning, and long service life in demanding food production environments.
Safety is a top priority. The system features:
X-ray leakage < 1 μSv/h, compliant with WTO food safety requirements
Automatic X-ray shutdown when the door is opened
Certified Radiation Safety License issued by national environmental authorities
These features ensure safe operation for both operators and the workplace.
Simple parameter adjustment
Unlimited product memory
Clear, intuitive operation
For Industry 4.0 integration, the machine supports USB, RS485/RS232, and Ethernet communication, along with remote networking, equipment locking, and remote service functions.
Packaged food and bagged product inspection
Aluminum foil packaging lines
Bakeries, snack food, and ready-meal production
Meat, seafood, frozen food, and confectionery processing
Ultra-high detection accuracy for metallic and non-metallic contaminants
AI-driven intelligence for stable, low-false-reject inspection
Certified food-grade safety & radiation protection
Reliable, heavy-duty construction for long-term industrial use
Amazon-ready quality standards for global food manufacturers
The RD-TA4016 X-Ray Foreign Object Detection Machine is a future-ready inspection solution that combines precision, safety, intelligence, and durability, making it an essential safeguard for food manufacturers aiming to meet the highest international quality standards.
