The hose reel irrigator uses water pressure to drive a turbine and retract the hose while providing uniform field irrigation. Available in single-gun and boom-type models, it supports both long-range spraying and low-pressure irrigation for delicate crops. It is easy to move, energy-efficient, and suitable for farmland, dust control, sports fields, and municipal green areas.
The hose reel irrigator uses water pressure to drive a water turbine and gearbox, rotating the reel to retract the PE hose while the sprinkler cart travels across the field, spraying water along the way until irrigation is completed. The system is available in two types: single-gun hose reel irrigators and multi-sprinkler boom irrigators.
The single sprinkler gun provides a long throw distance, allowing one unit to irrigate multiple plots with simple and convenient operation. The gun uses a vertical oscillating mechanism and is made primarily of aluminum alloy and reinforced engineering plastics. The sprinkler gun rotates smoothly and delivers stable performance.
The boom-type model uses a low-pressure sprinkler system, making it ideal for delicate crops. It prevents the impact damage caused by high-pressure guns on plants and seedlings while helping protect soil structure and reducing erosion.
A hose reel irrigator can efficiently irrigate large agricultural fields. By adjusting the sprinkler gun’s flow rate, users can control water application to meet different irrigation needs, making it an excellent solution for water-saving farmland irrigation. It is also suitable for dust-control spraying in power plants, ports, sports fields, municipal green spaces, and other areas requiring irrigation or misting.
The hose reel irrigator operates by using water pressure to drive a water turbine and gearbox, rotating the reel to retract the hose while the sprinkler cart travels and sprays water across the field. Some models use Aired’s proprietary ratchet-drive recovery system for hose retraction. Irrigation continues automatically until the entire field is covered.
Hose reel irrigators are generally available in two types:

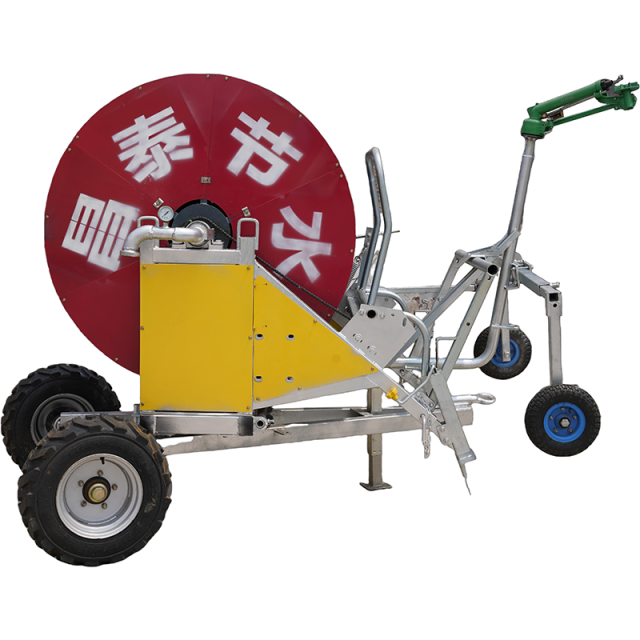

Single-Gun Hose Reel Irrigator

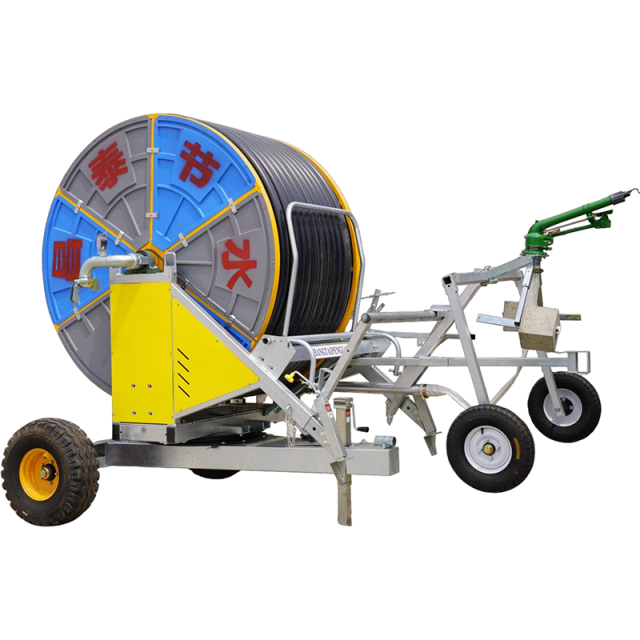

Boom-Type Hose Reel Irrigator
The single sprinkler gun delivers a long throw distance, allowing one machine to cover multiple field sections with ease. It is simple to operate and uses a vertical oscillating sprinkler gun made primarily from aluminum alloy and reinforced engineering plastics. The gun rotates smoothly and provides stable, consistent water distribution.
|
PE Pipe – Ø75mm, Length 300m (Effective 300m) |
Max. Coverage Area: 2 × 2.2 = 4.4 ha (≈66 acres) |
Retract Speed: 8–65 m/h |
|||||||||||
|
Nozzle |
Sprinkler |
Irrigate |
Sprinkler |
Rainfall |
|||||||||
|
Diameter |
Pressure |
Throw |
Coverage Width |
Flow Rate |
8 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
|
(mm) |
(bar) |
(m) |
(m) |
m³/h |
Retract Speed (m/h) and Required Pressure (bar) |
||||||||
|
16 |
2.5 |
30 |
50 |
15.5 |
39–5.1 |
31–4.5 |
21–4.1 |
16–4.0 |
12–3.9 |
10–3.8 |
9–3.1 |
－ |
－ |
|
3 |
32 |
54 |
17 |
39–5.3 |
32–5.0 |
21–4.8 |
16–4.6 |
13–4.5 |
11–4.4 |
9–4.4 |
－ |
－ |
|
|
3.5 |
34 |
57 |
18.4 |
40–5.9 |
32–5.7 |
22–5.5 |
16–5.3 |
13–5.2 |
11–5.1 |
9–5.1 |
8-5.1 |
－ |
|
|
4 |
36 |
60 |
19.7 |
41–6.5 |
33–6.4 |
22–6.0 |
16–6.0 |
13–5.9 |
11–5.9 |
9–5.8 |
8-5.8 |
－ |
|
|
4.5 |
37 |
63 |
20.9 |
41–7.2 |
33–7.1 |
22–6.7 |
17–6.7 |
13–6.6 |
11–6.6 |
9–6.5 |
8-6.5 |
－ |
|
|
5 |
39 |
65 |
22 |
42–7.9 |
34–7.5 |
23–7.4 |
17–7.3 |
14–7.3 |
11–7.3 |
10–7.2 |
8-7.2 |
－ |
|
|
18 |
2.5 |
32 |
53 |
19.7 |
46–5.1 |
37–5.0 |
25–4.6 |
19–4.5 |
15–4.4 |
12–4.4 |
11–4.4 |
9-4.3 |
－ |
|
3 |
34 |
57 |
21.5 |
47–6.0 |
38–5.8 |
25–5.4 |
19–5.3 |
15–5.2 |
13–5.2 |
11–5.2 |
9-5.2 |
－ |
|
|
3.5 |
36 |
61 |
23.3 |
48–6.8 |
38–6.4 |
25–6.2 |
19–6.1 |
15–6.0 |
13–6.0 |
11–6.0 |
10-6.0 |
－ |
|
|
4 |
38 |
64 |
24.9 |
49–7.3 |
39–7.2 |
26–7.0 |
19–6.9 |
16–6.9 |
13–6.8 |
11–6.8 |
10-6.8 |
－ |
|
|
4.5 |
40 |
67 |
26.4 |
49–8.1 |
39–7.9 |
26–7.8 |
20–7.7 |
16–7.7 |
13–7.6 |
11–7.6 |
10-7.6 |
－ |
|
|
5 |
41 |
70 |
27.8 |
50–8.9 |
40–8.7 |
26–8.6 |
20–8.5 |
16–8.5 |
13–8.4 |
11–8.4 |
10-8.4 |
－ |
|
|
20 |
2.5 |
34 |
57 |
25.3 |
53–6.5 |
44–5.6 |
29–5.5 |
22–5.3 |
17–5.2 |
15–5.2 |
12–5.1 |
11-5.1 |
9–5.1 |
|
3 |
36 |
61 |
26.6 |
55–6.7 |
44–6.6 |
29–6.4 |
22–6.3 |
17–6.2 |
15–6.2 |
12–6.2 |
11-6.1 |
9–6.1 |
|
|
3.5 |
38 |
64 |
28.7 |
56–7.7 |
45–7.5 |
30–7.4 |
22–7.2 |
18–7.2 |
15–7.2 |
13–7.1 |
11-7.1 |
9–7.0 |
|
|
4 |
40 |
68 |
30.7 |
56–8.6 |
45–8.4 |
30–8.2 |
23–8.2 |
18–8.2 |
15–8.1 |
13–8.0 |
11-8.0 |
9–7.9 |
|
|
4.5 |
42 |
71 |
32.6 |
57–9.5 |
46–9.4 |
31–9.2 |
23–9.1 |
18–9.1 |
15–9.0 |
13–8.9 |
11-8.9 |
9–8.9 |
|
|
5 |
44 |
74 |
34.3 |
58–10.4 |
46–10.3 |
31–10.1 |
23–10.1 |
19–10.0 |
15–9.9 |
13–9.9 |
12-9.8 |
9–9.8 |
|
|
22 |
3 |
38 |
64 |
32.2 |
63–8.0 |
50–7.9 |
34–7.6 |
25–7.6 |
20–7.5 |
17–7.4 |
14–7.4 |
13-7.3 |
10–7.3 |
|
3.5 |
40 |
68 |
34.8 |
64–9.1 |
51–9.0 |
34–8.8 |
26–8.7 |
20–8.6 |
17–8.5 |
15–8.5 |
13-8.5 |
10–8.4 |
|
|
4 |
42 |
71 |
37.2 |
65–10.3 |
52–10.1 |
34–9.9 |
25–9.8 |
20–9.7 |
17–9.7 |
15–9.6 |
13-9.6 |
10–9.5 |
|
This reel truss-type sprinkler irrigator adopts low-pressure irrigation, making it ideal for delicate crops. It avoids the impact and potential damage caused by high-pressure irrigation and offers effective crop protection. Water output can be adjusted through the sprinkler heads. During operation, the sprinkler cart can automatically move and stop, providing easy management. The structure is compact, field workload is minimal, and the machine has strong adaptability. It is not restricted by field obstacles and offers excellent mobility, allowing it to be moved freely to any irrigation position. The system ensures uniform water distribution, delivering water as needed. It requires no external power source during operation, saving time and labor while offering high efficiency and energy savings.
Pipe Diameter: 50, 75, 90, 110 mm
Pipe Length: 200, 250, 300, 350, 400 m
Drive Options: Water turbine drive, electric motor drive, diesel engine drive
Spray Gun Types: Single spray gun, dual spray gun, rotary spray gun
Truss Width: 28 m, 38 m
Sprinkler Cart Types:
2-wheel sprinkler cart / 3-wheel sprinkler cart / 4-wheel steel-wheel anti-sink sprinkler cart
|
Truss Model |
Truss Length |
Nozzle Diameter |
Sprinkler Pressure |
Number of Sprinklers |
Effective Spray Width |
Water Flow Rate |
Compatible Irrigator Model |
|
Unit |
m |
mm |
bar |
piece |
m |
m³/h |
/ |
|
26P |
26 |
7.5 |
1-2 |
13 |
34 |
38 |
65、75、90 |
|
30P |
30 |
7.5 |
1-2 |
17 |
38 |
50 |
75、90 |
|
40P |
40 |
6.5 |
1-2 |
35 |
48 |
70 |
90、100 |
|
50P |
50 |
6.5 |
1-2 |
48 |
58 |
96 |
110、125 |
|
60P |
60 |
6.5 |
1-2 |
58 |
68 |
116 |
110、125 |
