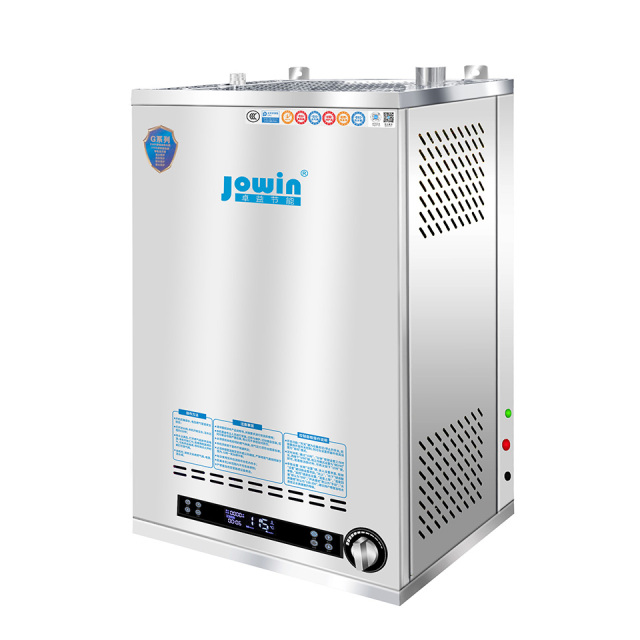

The SZQT70-G Commercial Gas Steam Generator delivers enhanced professional steam generation for demanding commercial kitchens, food processing facilities, and industrial applications. Engineered with superior capacity, this unit features a powerful 70kW burner that produces 90kg/h of steam at 100-125°C, making it ideal for high-volume food processing, sterilization, and various industrial applications.
| Parameter | Specification |
|---|---|
| Model | SZQT70-G |
| Gas Type | LPG / LNG (12T) |
| Rated Gas Pressure | 2.8 KPa (LPG) / 2 KPa (LNG) |
| Effective Volume | ≤ 29L |
| Steam-up Time | 120-150 seconds |
| Ignition Method | Smart Pulse Ignition |
| Working Pressure | 0~0.08 MPa (Atmospheric) |
| Applicable Water Pressure | 0.15~0.6 MPa (Atmospheric Type) |
| Main Material | 304# Stainless Steel |
| Flame Failure Device | Ion-type |
| Service Life | 8 years |
| Standard | GB 35848-2024 |
| Rated Voltage | AC220/50Hz |
| Rated Power | 120W |
| Steam Temperature | 100-125°C (Atmospheric Series) |
| Rated Heat Input | 70kW |
| Evaporation Capacity | 90kg/h |
| Gas Consumption | 5.8 m³/h (LPG) / 7 m³/h (Natural Gas) |
| Dimensions | 640 × 540 × 900 mm |
| Net Weight | 76 kg |
The SZQT70-G Commercial Gas Steam Generator delivers enhanced professional steam generation for demanding commercial kitchens, food processing facilities, and industrial applications. Engineered with superior capacity, this unit features a powerful 70kW burner that produces 90kg/h of steam at 100-125°C, making it ideal for high-volume food processing, sterilization, and various industrial applications. Built with 304# stainless steel and featuring smart pulse ignition, this steam generator offers reliable performance and a long 8-year service life.
High Steam Output - 90kg/h evaporation capacity for heavy-duty commercial operations
Dual Fuel Support - Compatible with both LPG and natural gas (12T) for flexible installation
Smart Ignition System - Pulse ignition for quick, reliable startup
Safety Assurance - Ion-type flame failure protection for secure operation
Durable Construction - 304# stainless steel body for long-lasting performance in commercial environments
Food Processing - Ideal for steaming, cooking, and food preparation in high-volume commercial kitchens
Sterilization - Perfect for equipment and tool sterilization in food service and medical facilities
Industrial Use - Suitable for various industrial processes requiring substantial steam output
Laundry Services - Effective for pressing and fabric treatment with increased capacity
Bakeries - Excellent for proofing and baking applications in large-scale operations
Powerful 70kW burner with adjustable heat output for enhanced performance
Quick steam-up time of 120-150 seconds for efficient operation
Energy-efficient design with optimized gas consumption (5.8m³/h LPG, 7m³/h natural gas)
Atmospheric pressure operation for safe, reliable performance
Precise temperature control for consistent steam quality
Simple electronic controls with AC220/50Hz compatibility ensure effortless operation, backed by reliable performance for demanding daily commercial tasks. The standard carton package protects the unit during shipping, while comprehensive safety features provide peace of mind. Contact customer service for bulk orders, technical support, and installation guidance.
