| Parameter | Specification |
|---|---|
| Model | SZQT80-G |
| Gas Type | LPG / LNG (12T) |
| Rated Gas Pressure | 2.8 KPa (LPG) / 2 KPa (LNG) |
| Effective Volume | ≤ 29L |
| Steam-up Time | 120-150 seconds |
| Ignition Method | Smart Pulse Ignition |
| Working Pressure | 0~0.08 MPa (Atmospheric) |
| Applicable Water Pressure | 0.15~0.6 MPa (Atmospheric Type) |
| Main Material | 304# Stainless Steel |
| Flame Failure Device | Ion-type |
| Service Life | 8 years |
| Standard | GB 35848-2024 |
| Rated Voltage | AC220/50Hz |
| Rated Power | 120W |
| Steam Temperature | 100-125°C (Atmospheric Series) |
| Rated Heat Input | 80kW |
| Evaporation Capacity | 110kg/h (Max 125kg/h) |
| Gas Consumption | 6.4 m³/h (Max 7.2 m³/h) for LPG 8 m³/h (Max 9 m³/h) for Natural Gas |
| Dimensions | 680 × 580 × 900 mm |
| Net Weight | 88 kg |

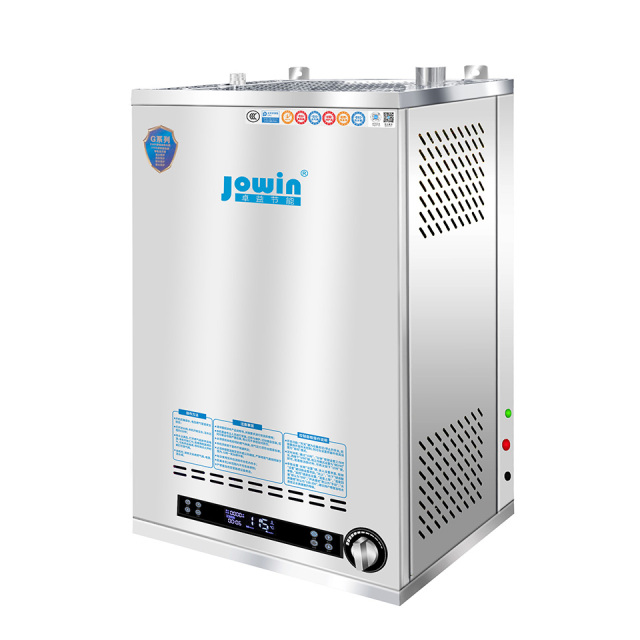

The SZQT80-G Commercial Gas Steam Generator is a powerful, high-performance industrial steam solution designed for demanding commercial kitchens, food processing plants, and catering operations. Engineered with versatility in mind, this system operates efficiently on both LPG and LNG (12T), delivering exceptional performance with 80kW rated heat input and an impressive evaporation capacity of 110kg/h (up to 125kg/h maximum). Built for speed and reliability, it generates steam in just 120-150 seconds, producing steam temperatures between 100-125°C to meet various processing, cooking, and sanitization needs. Constructed with premium 304# stainless steel and featuring advanced safety features, this generator is engineered for durability, efficiency, and full compliance with the latest industry standards
Dual Gas Compatibility - Operates efficiently on both LPG (6.4 m³/h max 7.2 m³/h) and Natural Gas (8 m³/h max 9 m³/h) for flexible fuel options
Rapid Steam Generation - Produces steam in just 120-150 seconds, minimizing wait times during peak operations
High Performance Output - Delivers 80kW rated heat input with 110kg/h evaporation capacity for consistent steam supply
Smart Pulse Ignition - Ensures reliable and efficient ignition system for consistent performance
Ion-type Flame Failure Device - Advanced safety feature that automatically shuts off gas if flame is detected as abnormal- **Atmospheric Design** - Working pressure of 0~0.08MPa with water pressure range of 0.15~0.6MPa
Food-Grade Construction - Main material is 304# stainless steel, ensuring durability and hygiene compliance
Quick Installation - Standardized connection sizes (DN32 steam outlet, DN15 water/gas inlets, DN25 drain) for easy setup and integration
Food Processing - Perfect for steaming, cooking, blanching vegetables, seafood, and meats
Commercial Kitchens - Ideal for restaurant and hotel food preparation
Food Sanitization - Effectively sanitizes equipment, utensils, and work surfaces
Beverage Production - Suitable for pasteurization and processes requiring precise steam control
Catering Operations - Reliable steam supply for banqueting and event catering
Industrial Processes - Suitable for various applications requiring consistent steam output
Package Information
Package Method: Standard Carton Box with protective packaging
Shipping: Safe packaging ensures product integrity during transit
Contact us today for bulk ordering inquiries, customization options, or to request technical specifications for your specific commercial steam generation needs. Free shipping available on qualifying orders. Our professional team is ready to assist with installation guidance and after-sales support to ensure optimal performance of your SZQT80-G Commercial Gas Steam Generator.
