| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-36-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 36 |
| Evaporation Capacity (kg/h) | 50 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN15 Internal Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 85 |
| Leakage Protection Reference Specification | 100A/4P |
| Copper Cable Reference Specification | 16mm² |
| Aluminum Cable Reference Specification | 25mm² |

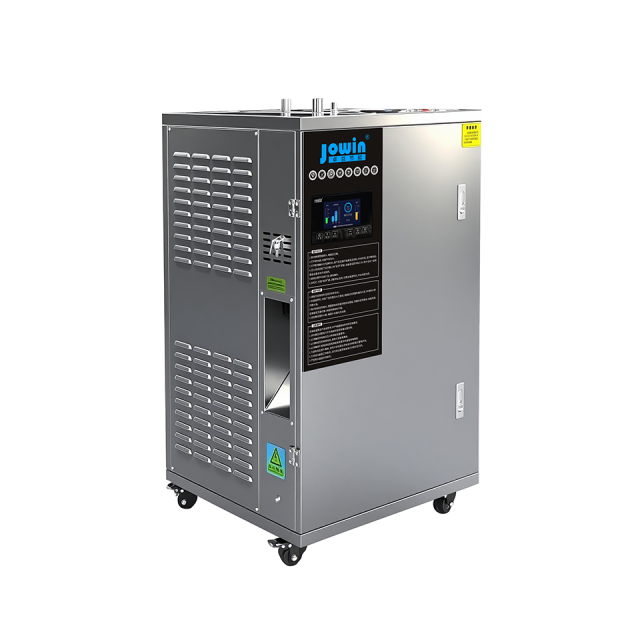

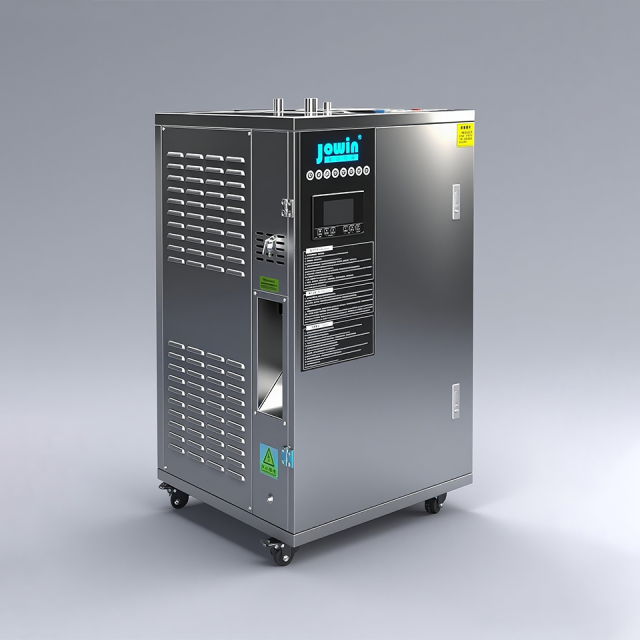

Engineered for demanding food production environments, the ZY-ZQFSQ-36-0.7 Electric Steam Generator delivers industrial-grade performance with 36kW power and 50kg/h steam output. Designed for continuous operation in food processing plants, large bakeries, and central kitchens, this robust system generates ready-to-use steam within 3-5 minutes while maintaining precise 0.3-0.7MPa pressure control. Its compact design houses advanced safety features including 100A/4P leakage protection, making it the ideal steam solution for high-volume food preparation, equipment sterilization, and thermal processing applications.
Industrial 36kW Heating System - Powerful electric heating elements ensure consistent steam production for continuous food processing operations
High-Capacity Steam Generation - Produces 50kg of food-grade steam per hour to support multiple production lines simultaneously
Quick-Pressure Buildup - Reaches operating pressure in 3-5 minutes, minimizing downtime between production batches
Professional Pressure Range - Adjustable 0.3/0.7MPa settings compatible with various food processing equipment and sterilization requirements
Industrial Safety Standard - Equipped with 100A/4P leakage protection and designed for stable operation within 0.15-0.4MPa water pressure ranges
Space-Optimized Design - Maintains compact 600×600×1050mm dimensions despite increased capacity, suitable for equipment rooms or production floors
Large-scale dough proofing and baking operations in industrial bakeries
Continuous cooking and steaming lines for prepared foods and meal components
Batch sterilization of food containers, processing equipment, and filling machines
Thermal processing and pasteurization in beverage and dairy production plants
High-volume kitchen operations in institutional catering and food manufacturing
Superior 50kg/h evaporation capacity supports high-throughput production schedules
Robust electrical system with 16mm² copper cable specification ensures reliable power delivery
Standard DN15/DN25 connections enable seamless integration with existing food processing equipment
Industrial-grade components and construction minimize maintenance requirements in continuous operation
Food-safe steam generation between 100-171°C meets hygiene standards for direct product contact
For high-volume food processors seeking reliable steam generation with industrial capacity, the ZY-ZQFSQ-36-0.7 provides the power, safety, and consistency required for modern food production environments. Contact us for custom configuration options and volume pricing.
