| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-48-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 48 |
| Evaporation Capacity (kg/h) | 67 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN25 External Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 98 |
| Leakage Protection Reference Specification | 125A/4P |
| Copper Cable Reference Specification | 25mm² |
| Aluminum Cable Reference Specification | 35mm² |

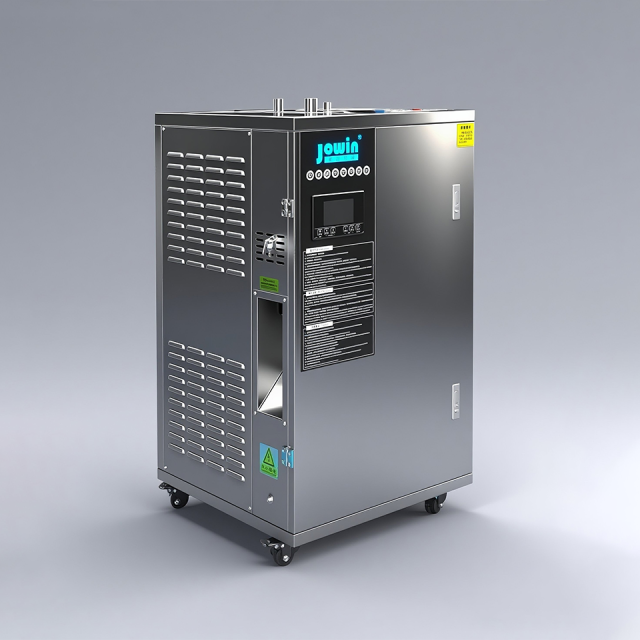

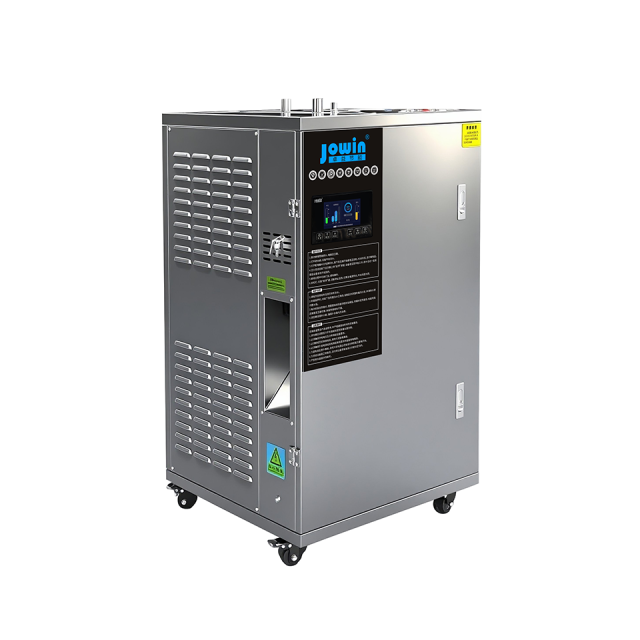

Designed for high-throughput food manufacturing facilities, the ZY-ZQFSQ-48-0.7 Electric Steam Generator sets new standards in industrial steam production. With an exceptional 48kW power output and 67kg/h evaporation capacity, this heavy-duty system ensures uninterrupted steam supply for the most demanding production environments. The advanced engineering delivers rapid 3-5 minute steam generation while maintaining precise 0.3-0.7MPa pressure control, making it the ultimate solution for large-scale food processing, sterilization, and thermal applications.
Heavy-Duty Performance - 48kW industrial heating system provides reliable steam generation for continuous 24/7 operations
Maximum Output Capacity - Delivers 67kg of food-grade steam per hour to support multiple high-volume processing lines
Rapid Response Time - Achieves working pressure within 3-5 minutes for minimal production interruption
Enhanced Connection System - Features DN25 steam outlets at both pressure settings for improved flow capacity
Industrial Safety Compliance - Equipped with 125A/4P leakage protection and heavy-gauge electrical specifications
Optimized Footprint - Maintains space-efficient 600×600×1050mm dimensions despite increased performance capabilities
Large-scale industrial bakeries and pastry production facilities
Food processing plants for continuous cooking and steaming operations
Beverage and dairy facilities requiring high-volume pasteurization
Central kitchens serving institutional and commercial food service
Food packaging plants for container and equipment sterilization
Industry-leading 67kg/h steam output supports maximum production efficiency
Robust 25mm² copper wiring ensures stable power delivery under continuous load
Standardized DN15/DN25 connections facilitate quick installation and integration
Food-safe steam generation from 100-171°C meets strict hygiene requirements
Heavy-duty construction withstands demanding industrial environments
For food manufacturers requiring uncompromising steam capacity and reliability, the ZY-ZQFSQ-48-0.7 delivers exceptional performance for the most challenging production requirements. Contact us for technical specifications and enterprise-grade solutions.
