| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-60-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 60 |
| Evaporation Capacity (kg/h) | 83 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN25 External Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 99 |
| Leakage Protection Reference Specification | 160A/4P |
| Copper Cable Reference Specification | 35mm² |
| Aluminum Cable Reference Specification | 50mm² |

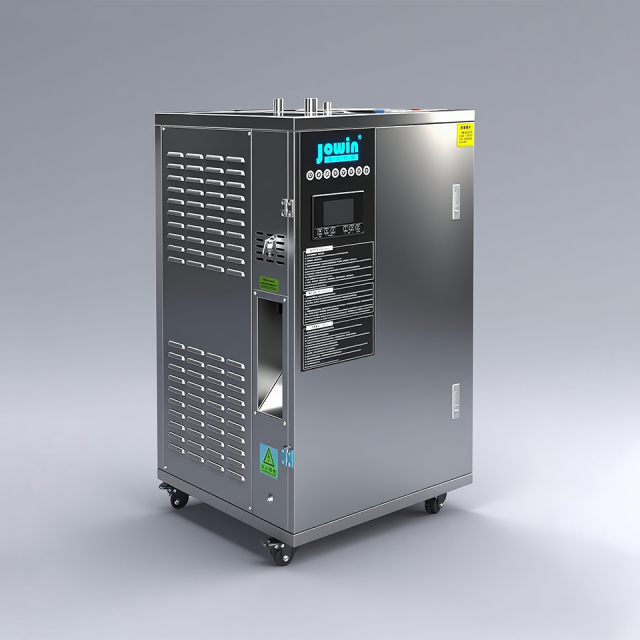

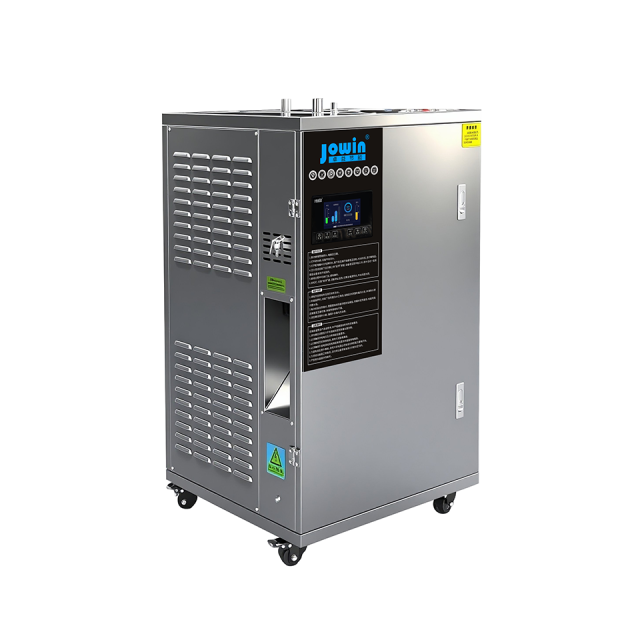

Meet the ZY-ZQFSQ-60-0.7 Electric Steam Generator - the ultimate power source for large-scale food manufacturing. With an impressive 60kW heating capacity and 83kg/h steam output, this industrial-grade system delivers unmatched performance for high-volume production environments. Engineered for continuous operation in food processing plants, industrial bakeries, and commercial kitchens, it combines rapid steam generation with precise pressure control to meet the most demanding thermal processing requirements.
Exceptional Steam Production - 83kg/hour evaporation capacity supports multiple production lines simultaneously
Premium Power System - 60kW industrial heating elements ensure consistent performance during extended operation
Quick-Start Technology - Ready-to-use steam in just 3-5 minutes maximizes production efficiency
Professional Pressure Range - Dual 0.3/0.7MPa settings accommodate various food processing applications
Enhanced Safety Standards - 160A/4P leakage protection and heavy-duty electrical specifications ensure reliable operation
Space-Optimized Design - Compact 600×600×1050mm footprint fits perfectly in equipment rooms and production areas
Industrial-scale baking and proofing operations
Continuous food cooking and steaming lines
Large-volume pasteurization processes
Equipment and container sterilization
Central kitchen and food manufacturing facilities
For food manufacturers seeking superior steam capacity and unwavering reliability, the ZY-ZQFSQ-60-0.7 delivers exceptional performance for the most challenging production environments. Contact us for custom solutions and volume pricing.
